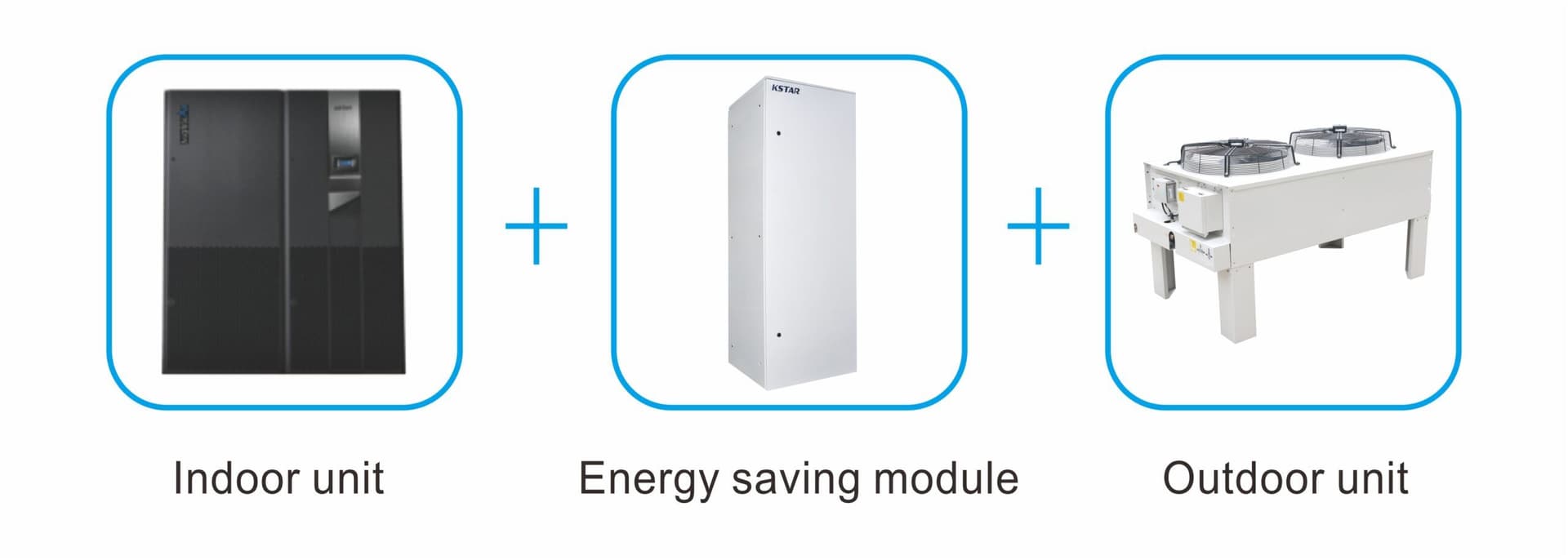

KSTAR fluorine pump free-cooling air conditioner is an efficient and energy saving air conditioner developed by KSTAR, it can fully use of natural cold source to reduce the energy consumption of the unit. Based on the KSTAR standard air cooling unit, it can achieve the cooling function using the compressor system or the fluorine pump system through the refrigerant cycle, no need to add pipe net system and draw into the fresh air. With the integrated design concept, it has the advantages of installation and maintenance easily, high reliability, high efficiency, energy saving and so on. It can be applied in various types of data centers, communications room and other places.

General Features

● High efficiency and energy saving

When the outdoor environment temperature is low, shut down the compressor to fully use of natural cold source and reduce energy consumption;

Fluorine pump free-cooling precision air conditioner use high efficiency and energy saving parts, so it has the advantage of environmental protection and energy saving as the KSTAR other precision air conditioner product.

● High reliability

Use high quality parts which have great performance over time;

Advanced and reliable controller ensures that the unit switches the cooling mode automatically, various protection functions ensure the unit running safely and reliably.

● Easy to use

Highly integrated and modular design, easy to install and maintain;

Intelligent communication ports

Technical Specification

MT***UR/DR

Unit

25

30

35

45

55

40

50

60

70

80

90

100

AC Fan

Compressor Total Cooling Capacity1)

kW

26.7

30.8

35.5

45.5

54.5

41.2

53.5

61.4

70.9

81.3

90.6

104.4

Fluorine pump Total Cooling Capacity2)

kW

26.3

30.4

35.3

45.1

54.3

40.5

52.9

61.1

70.5

80.9

90.2

104.1

Compressor Sensible Cooling Capacity1)

kW

24.3

29.3

32.7

42.8

51.8

37.9

49.2

57.7

63.8

77.2

83.4

95

Fluorine pump sensible Cooling Capacity2)

kW

24.2

28.6

32.5

41.9

50.5

37.7

49.2

56.8

64.9

76.1

83

95.8

Air volume

m³/h

7500

8000

8500

13000

15000

12500

14000

18000

18500

21000

23000

25000

Compressor Sensible heat ratio

/

0.91

0.95

0.92

0.94

0.95

0.92

0.92

0.94

0.9

0.95

0.92

0.91

Fluorine pump sensible heat ratio

/

0.92

0.94

0.92

0.93

0.93

0.93

0.93

0.93

0.92

0.94

0.92

0.92

EC Fan

Compressor Total Cooling Capacity1)

kW

26.9

31.2

35.7

45.9

54.7

41.6

53.8

61.7

71.1

81.8

90.8

104.7

Fluorine pump Total Cooling Capacity2)

kW

26.7

30.9

35.7

45.5

55.6

41.1

53.3

61.5

70.9

81.3

90.6

104.5

Compressor Sensible Cooling Capacity1)

kW

25

30

33.6

44.1

52.5

39.5

50.6

59.2

66.1

78.5

85.4

97.4

Fluorine pump sensible Cooling Capacity2)

kW

24.8

29.4

33.2

42.8

52.3

38.6

50.1

58.4

65.9

77.3

84.3

97.2

Air volume

m³/h

7800

8300

8800

13500

15400

13200

14600

18700

19300

21600

23900

26000

Compressor Sensible heat ratio

/

0.93

0.96

0.94

0.96

0.96

0.95

0.94

0.96

0.93

0.96

0.94

0.93

Fluorine pump sensible heat ratio

/

0.93

0.95

0.93

0.94

0.94

0.94

0.94

0.95

0.93

0.95

0.93

0.93

Heating capacity(Standard)

kW

6

6

6

9

9

9

9

9

9

12

12

12

Heating capacity(Max)

kW

12

12

12

18

18

18

18

18

18

24

24

24

Humidifying capacity (Standard)

kg/h

6

8

8

10

10

10

10

10

10

12

12

12

Humidifying capacity (Max)

kg/h

8

8

8

15

15

15

15

15

15

15

15

15

Number of compressors

Pcs

1

1

1

1

1

2

2

2

2

2

2

2

Number of fans

Pcs

1

1

1

2

2

2

2

2

2

3

3

3

Full-load current

A

32

35.9

38.3

51.5

57.6

50.3

60.1

65.2

70

82.8

88.2

103.4

Unit Weight

kg

390

460

470

620

630

690

720

780

790

990

1010

1110

Unit Length

mm

850

1200

1200

1650

1650

1650

1650

2010

2010

2460

2460

2810

Unit depth

mm

850

850

850

850

850

850

850

850

850

850

850

850

Unit Height

mm

1960

1960

1960

1960

1960

1960

1960

1960

1960

1960

1960

1960

Single energy saving module width

mm

728

Single energy saving module depth

mm

580

Single energy saving module height

mm

2026

NOTE

1. Parameter table

1) Compressor cooled data based on 24℃，50% RH indoor return air temperature

2) Fluorine pump data based on 24℃，50% RH indoor return air temperature

2. The power supply type:380~415V / 3P / 50Hz

3. Specifications are subject to change without prior notice

KCS***

Unit

24

28

32

36

42

48

54

64

Heat exchanging

kW

23.8

27.2

31

36.8

42.2

47.6

54.4

62.4

Voltage

V

220

220

220

220

220

220

220

220

Frequency

HZ

50

50

50

50

50

50

50

50

Phase

Pcs

1

1

1

1

1

1

1

1

Full-load current

A

2.7

2.7

2.7

5.4

5.4

5.4

5.4

5.4

Noise1)

dB(A)

54.9

52.9

54.1

50.7

53

52

52.1

55.1

Unit Weight

kg

117

124

125

138

143

152

165

185

Unit length

mm

1601

1401

1601

1801

1801

1801

1801

2001

Unit width

mm

975

975

975

975

975

1274

1274

1274

Unit height

mm

651

651

651

651

651

651

651

651

Foot stool height

mm

455

455

455

455

455

455

455

455

Note:

1.Parameter table

1）The noise data is sound pressure level value of 10m free field

2.Specifications are subject to change without prior notice
