In order to save the wasted power of underutilized, over-size ordinary UPS, and obtain “N+1” redundancy to ensure the critical system has high power availability, data centers now choose modular UPS as their first choice for critical power protection. With compact size, high efficiency and easy expansion according to power requirements. Modular UPS systems are growing fast in the three-phase market.

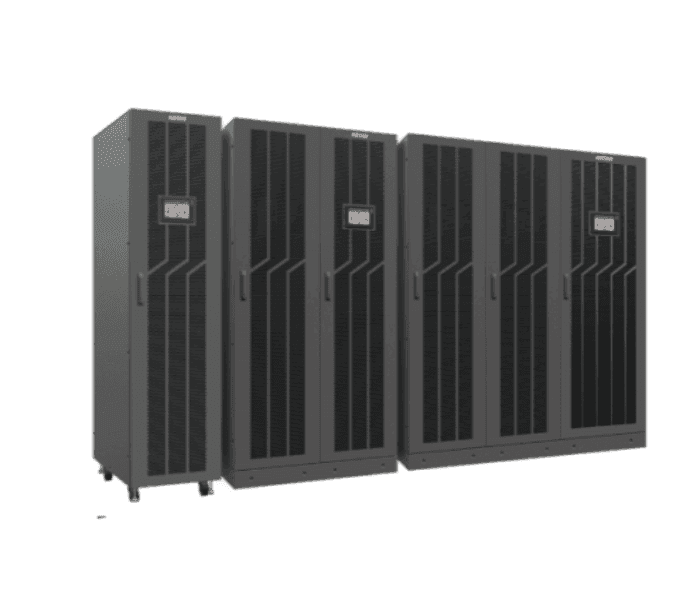

The HPM series is a modular uninterruptible power supply (UPS) for medium – and large-sized data centers. It features high efficiency (96%) and a high input factor of 0.99, minimizing UPS energy consumption. The modular design and the N+X parallel redundancy technology, making the expansion & management easier as well as reduce initial acquisition costs.It supports hot-swappable and reduces the maintenance time to 5 minutes and improves system availability. The maximum capacity can be expanded to 1000kva according to future needs, helping to lower initial investment.

General Features

● Adopting digital control design, and the control system is more reliable

● High input factor 0.99 and output factor 1.

● 3-level topology design, efficiency is up to 96%

● Support parallel expansion for cabinet, and  parallel expansion is up to 4-6 cabinets.

● Batteries number of each group can be selected from 30 pieces to 50 pieces.

● With 7 inches (standard) and 10 inches (optional) colorful touch LCD screen

Technical Specification

Module Model

HPM3300E-RM-40

HPM3300E-RM-50

Cabinet Model

HPM3300E-200/320/400

HPM3300E-200/300/400/500/600/800/1000

Cabinet capacity (VA)

200k~400k

200k~1000k

Module capacity (VA)

40k

50k

Max. Number

05/8/10

4/6/8/10/12/16/20

INPUT

Nominal voltage

380/400/415Vac, (3Ph+N+PE)

Operating voltage range

138~305Vacfor 40% Load; 305~485Vac for 100% Load;

Operating frequency range

40Hz-70Hz

Power factor

≥0.99

Harmonic distortion (THDi)

≤3% (100% linear load)

Bypass voltage range

Max. voltage:220V: +25% (optional+10%, +15%, +20% ); 230V: +20% (optional +10%, +15% ); 240V: +15% (optional +10%)

Min. voltage: -45% (optional-10%, -15%, -20%, -30%)

Bypass Frequency range

Frequency protection range: ±10%

Power Walk In

Support

Generator input

Support

OUTPUT

Rated voltage

380/400/415Vac, (3Ph+N+PE)

Power factor

1

Voltage regulation

±1%

Output frequency

Line Mode

Synchronize with input, when the input frequency ＞±10%（±1%/±2%/±3%/±4%/±5% optional), output 50/60 (±0.1Hz)

Bat. Mode

(50/60±0.1%)Hz

Crest factor

0.125694444

Harmonic distortion (THDv)

≤1% with linear load; ≤3% with nonlinear load

Efficiency

up to 96%

BATTERY

Battery voltage

Optional Voltage: ±180/192/204/216/228/240/252/264/276/288/300Vdc(30/32/34/36/38/40/42/44/46/48/50pcs optional);

360Vdc~600Vdc (30~50 pcs, 36 pcs default, 36~50 pcs no power derating; 32~34 pcs output power factor 0.9; 30 pcs output power factor 0.8)

Power module charge current

20A (Max.)

SYSTEM FEATURES

Transfer time

Utility to Battery : 0ms; Utility to bypass: 0ms

Overload

Line Mode

≤110%, 60min; ≤125%, 10min; ≤150%,1min; to bypass.＞150% Shut down Immediately.

Bypass Mode

135% overload for long term; >1000% overload for 100 ms

Overheat

Line Mode: Switch to Bypass; Backup Mode: Shut down UPS immediately

Low battery voltage

Alarm and Switch off

Self-diagnostics

Upon Power On and Software Control

Backfeed

Support

EPO

Shut down UPS immediately (turn to bypass optional)

Battery

Advanced Battery Management

Noise suppression

Complies with EN62040-3

Audible & Visual alarms

Line Failure, Battery Low, Overload, System Fault

Status LED & LCD display

Line Mode, Bypass Mode, Battery Low, Battery Fault, Overload & UPS Fault

Reading on the LCD display

Input, Output, Battery, Command, Setting, Maintenance

Communication interface

RS232, RS485, Parallel, LBS, BMS, Dry contact port, Relay card(optional), SNMP card(optional), Battery temperature sensor(optional)

ENVIRONMENTAL

Operating temperature

0℃～40℃

Storage temperature

-25℃～55℃

Humidity range

0～95% (non condensing)

Altitude

<1500m, derating required when >1500m

Noise level(from 1M distance)

<68dB

<73dB

PHYSICAL

Dimension              WxD×H (mm)

UPS cabinet

(S / F)

200/320kVA: 600×850×2000

400kVA: 1200×850×2000

200/300/400kVA: 600×850×2000

Power module

440×620×130

Net weight (kg)

UPS cabinet

(S / F)

210~460

200kVA: 240; 300kVA: 260; 400kVA: 290;

500kVA: 480; 600kVA: 540; 800kVA: 960;

1000kVA: 1050

Power module

33

34

STANDARDS

Safety

IEC/EN62040-1, IEC/EN62477-1

EMC

IEC/EN62040-2 (IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8)
