Key Applications In-Memory Database Virtualization, ERP, CRM Research Lab/National Lab Scale -up HPC Key Features Octa Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors 128 DIMM Slots; Up to 32TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS Optional PCIe configurations up to 24 PCIe slots with support for 12 double-width GPU/Accerlator cards 24x 2.5" Hot-swap NVMe/SAS3/SATA3 drive bays ; 2x internal M.2 NVMe/SATA; Optional RAID support via storage add-on card 10 heavy duty fans w/ optimal fan speed control

Key Applications

In-Memory Database

Virtualization, ERP, CRM

Research Lab/National Lab

Scale -up HPC

Key Features

Octa Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors

128 DIMM Slots; Up to 32TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS

Optional PCIe configurations up to 24 PCIe slots with support for 12 double-width GPU/Accerlator cards

24x 2.5″ Hot-swap NVMe/SAS3/SATA3 drive bays ; 2x internal M.2 NVMe/SATA; Optional RAID support via storage add-on card

10 heavy duty fans w/ optimal fan speed control

Product SKUs

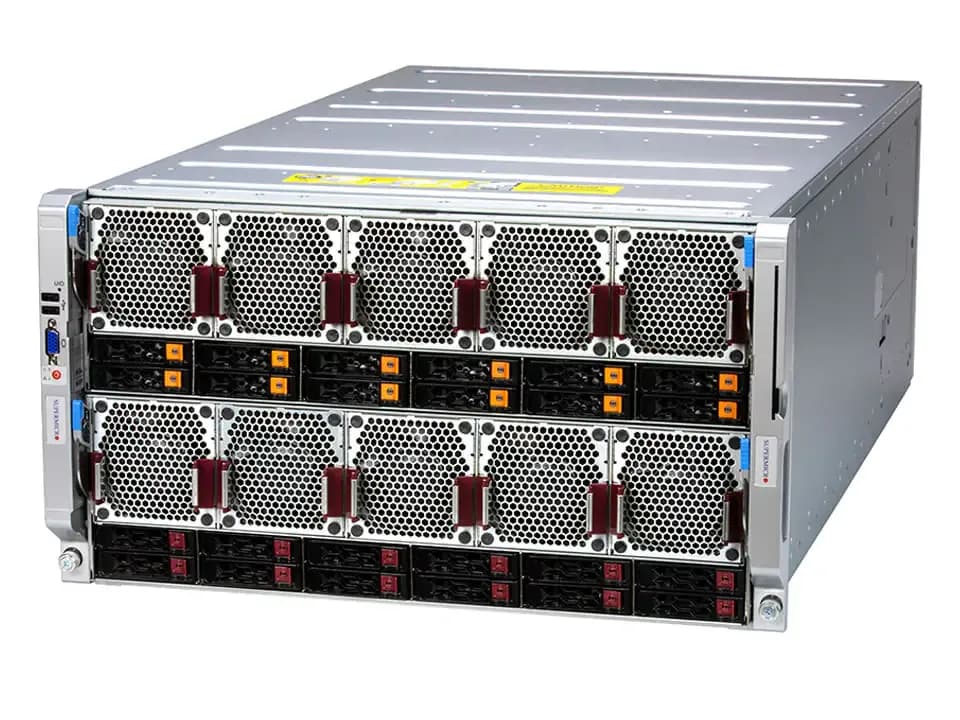

SuperServer SYS-681E-TR

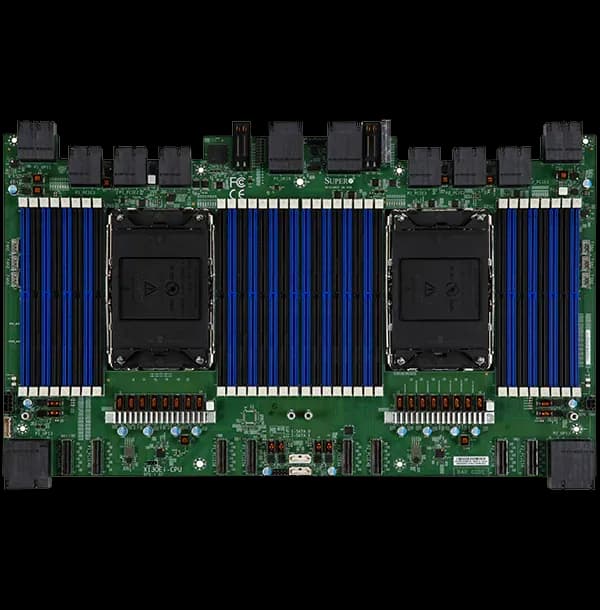

Motherboard

Super X13OEI-CPU

Processor

CPU

8 Socket E (LGA-4677)

4th Gen Intel® Xeon® Scalable processors

Core Count

Up to 60C/120T; Up to 112.5MB Cache per CPU

Note

Supports 250W – 350W TDP CPUs (Air Cooled)

GPU

Max GPU Count

Up to 12 double-width GPU(s)

System Memory

Memory

Slot Count: 128 DIMM slots

Max Memory (2DPC): Up to 32TB 4800MT/s ECC DDR5 RDIMM

View Memory Options

On-Board Devices

Chipset

Intel® C741

Network Connectivity

1 RJ45 1GBASE-T

View AOC Options

Input / Output

LAN

1 RJ45 1 GbE Dedicated IPMI LAN port(s)

1 RJ45 1 GbE LAN port(s)

USB

2 USB 3.0 port(s) (rear)

2 port(s) (front)

Video

1 VGA port(s) (Front)

1 DisplayPort port(s) (Rear)

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

Power-on mode for AC power recovery

ACPI Power Management

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

4+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

6U Rackmount

Model

CSE-618TS-R5K26P

Dimensions and Weight

Height

10.4″ (265 mm)

Width

17.68″ (449 mm)

Depth

33.1″ (841 mm)

Package

36.3″ (H) x 28.34″ (W) x 42.5″ (D)

Weight

Gross Weight: 242.5 lbs (110 kg)

Net Weight: 176.37 lbs (80 kg)

Available Color

Black

Front Panel

LED

HDD activity

Network activity

Power status

System information (overheat/UID)

Buttons

Power On/Off

UID

Expansion Slots

PCI-Express (PCIe) Configuration

Default

12 PCIe 5.0 x16 FHFL slot(s)

2 PCIe 5.0 x16 LP slot(s)

Option A*

12 PCIe 5.0 x16 FHFL slot(s)

(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

View AOC Options

M.2

2 M.2 NVMe/SATA slot(s) (M-key 2280/22110)

Drive Bays / Storage

Drive Bays Configuration

Default: Total 8 bay(s)

8 front hot-swap 2.5″ SATA drive bay(s)

Option A: Total 24 bay(s)

24 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bay(s)

(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

View Drive Options

M.2

2 M.2 PCIe 3.0 x4 NVMe/SATA slot(s) (M-key 2280/22110)

View M.2 Options

System Cooling

Fans

10 Heavy duty counter-rotating 8cm Fan(s)

Power Supply

4x 2600W Redundant (2 + 2) Titanium Level (96%) power supplies

Dimension (WxHxL)

73.5 x 40 x 265 mm

AC Input

2600W: 200-240Vac / 50-60Hz

2600W: 200-240Vdc / 50-60Hz (for CQC only)

+12V

Max: 216A / Min: 0A (200Vac-240Vac)

12V SB

Max: 3.5A

Output Type

Backplanes (gold finger)

Operating Environment

ROHS

RoHS Compliant

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 90% (Non-Condensing)

Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
