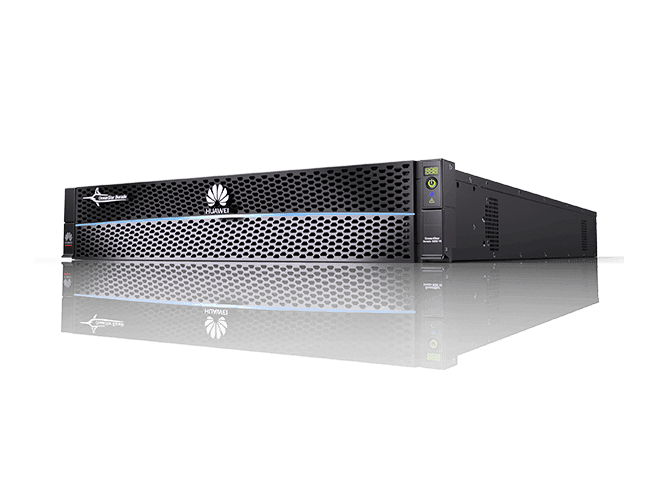

Huawei OceanStor Dorado 3000 is an easy-to-use and cost-effective all-flash storage system widely applied in small and medium-sized enterprises (SMEs). Featuring Huawei-developed innovative hardware and FlashLink intelligent algorithms, the storage system combines the intelligence and efficiency of the Smart series features with the high reliability of the Hyper series features. In short, the storage system helps build a solid foundation for a modern, intelligent, and cloud-ready IT system infrastructure, and provides enterprises with unparalleled data services.

Huawei OceanStor Dorado 3000 is an easy-to-use and cost-effective all-flash storage system widely applied in small and medium-sized enterprises (SMEs).

Featuring Huawei-developed innovative hardware and FlashLink intelligent algorithms, the storage system combines the intelligence and efficiency of the Smart series features with the high reliability of the Hyper series features. In short, the storage system helps build a solid foundation for a modern, intelligent, and cloud-ready IT system infrastructure, and provides enterprises with unparalleled data services.

Model

OceanStor Dorado 3000

Hardware Specifications

Maximum Number of Controllers

16*

System Cache

128-1536GB

Supported Interface Protocols

FC, iSCSI, NFS, CIFS, FC-NVMe, NVMe over RoCE, NDMP

Front-End Port Types

8/16/32 Gbps FC/FC-NVMe and 10/25/40/100 Gbps Ethernet, 25Gbps NVMe over RoCE

Back-End Port Types

100G RDMA/SAS 3.0

Maximum Number of Hot-Swappable I/O Modules per Controller Enclosure

6

Maximum Number of Front-End Ports per Controller Enclosure

40

Maximum Number of SSDs

1200

Supported SSDs

1.92TB/3.84TB/7.68TB/15.36TB palm-sized NVMe SSD

960GB/1.92TB/3.84TB/7.68TB/15.36TB SAS SSD

Number of LUNs

8192

Supported SCM

800GB/1.6TB*

Software Specifications

Supported RAID Levels

RAID 5, RAID 6, RAID10*, and RAID-TP (tolerates simultaneous failure of 3 SSDs)

Value-Added Features

SmartDedupe, SmartCompression, SmartVirtualization, SmartMigration, SmartQoS(SAN&NAS), SmartThin, SmartQuota(NAS), SmartCache, SmartMobility*, SmartMigration for NAS

HyperSnap(SAN&NAS), HyperClone(SAN&NAS), HyperCDP(SAN&NAS), HyperReplication(SAN&NAS), HyperMetro(SAN&NAS), HyperLock(NAS)

Storage Management Software

DeviceManager, UltraPath, and DME IQ
