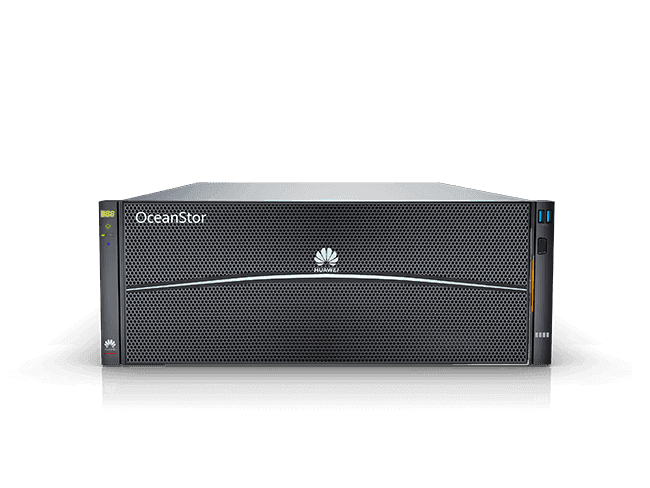

A scale-out storage system that houses one node per 4 U chassis. It provides high capacity density and flexible component configurations to meet the need to store both video and image stream data.

Product Model

OceanStor Pacific 9340

System Architecture

Fully symmetric distributed architecture

Storage Access Protocol

NFS, SMB, and S3

Raw Capacity per Chassis

216 TB to 576 TB

Height per Chassis

4 U

Number of Nodes per Chassis

1

Max. Number of Primary Storage Disks per Node

36

Primary Storage Disk Type

3.5-inch HDD

Processors per Node

2 x Huawei Kunpeng 920 processors

Max. Memory per Node

512 GB

Max. Cache per Node

4 x NVMe SSDs

System Disks per Node

2 x 600 GB SAS HDDs or 2 x 480 GB SATA SSDs

Front-End Service Network Type

10GE or 25GE TCP

Storage Network Type

• 10GE or 25GE TCP

• 10GE or 25GE RoCE

Data Redundancy Protection Mechanism

EC: N+M (M = 2, 3, or 4)

Data Self-Healing

Automatic concurrent data reconstruction at 2 TB per hour

Key Features

• SmartQuota

• SmartQoS

• SmartEqualizer

• SmartMulti-Tenant

• SmartAuditlog

• SmartIndexing

• SmartInterworking

• SmartEncryption

• DIF

Storage Management Software

DeviceManager and eService

Chassis Dimensions (H x W x D)

175 mm x 447 mm x 790 mm

Max. Weight per Chassis (with Disks)

≤ 65 kg

Operating Temperature

5°C to 35°C

Operating Humidity

8% RH to 90% RH (non-condensing)
