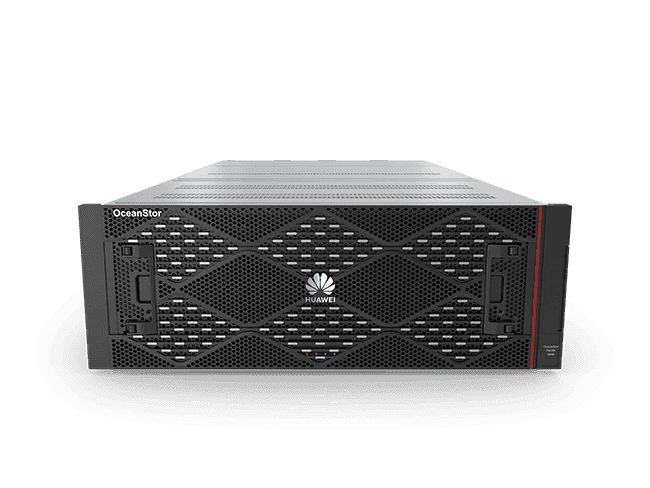

OceanStor Pacific 9346 is an archive model. Each 4 U chassis houses up to 60 HDDs and uses them as main storage. It is applicable to high-performance camera video and image stream data scenarios.

Product Model

OceanStor Pacific 9346

System Architecture

Fully symmetric distributed architecture

Storage Access Protocol

NFS, SMB, S3

Raw Capacity per Chassis

648–1080 TB

Height per Chassis

4 U

Number of Nodes per Chassis

1 or 2

Max. Number of Main Storage Disks per Node

30 or 60

Main Storage Disk Type

3.5-inch HDD

Number of Processors per Node

2 x Huawei Kunpeng 920 processors

Max. Memory per Node

512 GB

Max. Cache per Node

2 or 4 x palm-sized NVMe SSDs

Number of System Disks per Node

2 x 480 GB SSDs

Front-End Service Network Type*

•10 GE or 25 GE TCP

Storage Interconnection Network Type

•10 GE or 25 GE TCP

•10 GE or 25 GE RoCE

Data Redundancy Protection Mechanism

EC: N + M (M is 2, 3, or 4)

Data Self-Healing

Automatic concurrent data reconstruction at 2 TB per hour

Key Features

• SmartQuota

• SmartQoS

• SmartEqualizer

• SmartMulti-Tenant

• SmartAuditlog

• SmartIndexing

• SmartInterworking

• DIF

Storage Management Software

DeviceManager and eService

Chassis Dimensions (H x W x D)

178 mm x 447 mm x 835 mm

Max. Weight per Chassis (with Disks)

One chassis with one node: ≤ 98 kg

One chassis with two nodes: ≤ 102 kg

Operating Temperature

5ºC to 35ºC

Operating Humidity

5% RH to 90% RH (non-condensing)
