Key Applications

Big Data & Analytics, Data Lake

HPC and AI/ML Workloads

Telco & Cloud Service Providers

Financial Services & Healthcare Image Archives

Content Repositories

Government Data Protection

Key Features

Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores

16 ECC DDR4-3200: LRDIMM/RDIMM

3 x PCIe 4.0 x16 HHHL PCIe slots

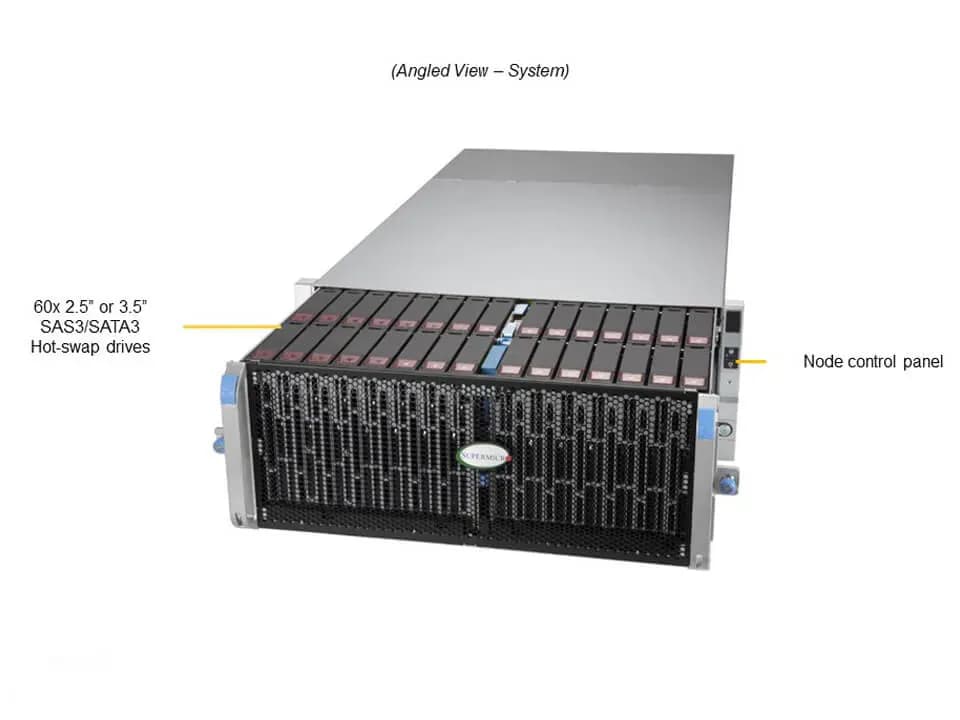

60 3.5″/2.5″ Hot-swap SAS3/SATA3 drives, 2x Fixed slim SATA SSD, 2x NVMe M.2 (form factor: 2280 and 22110)

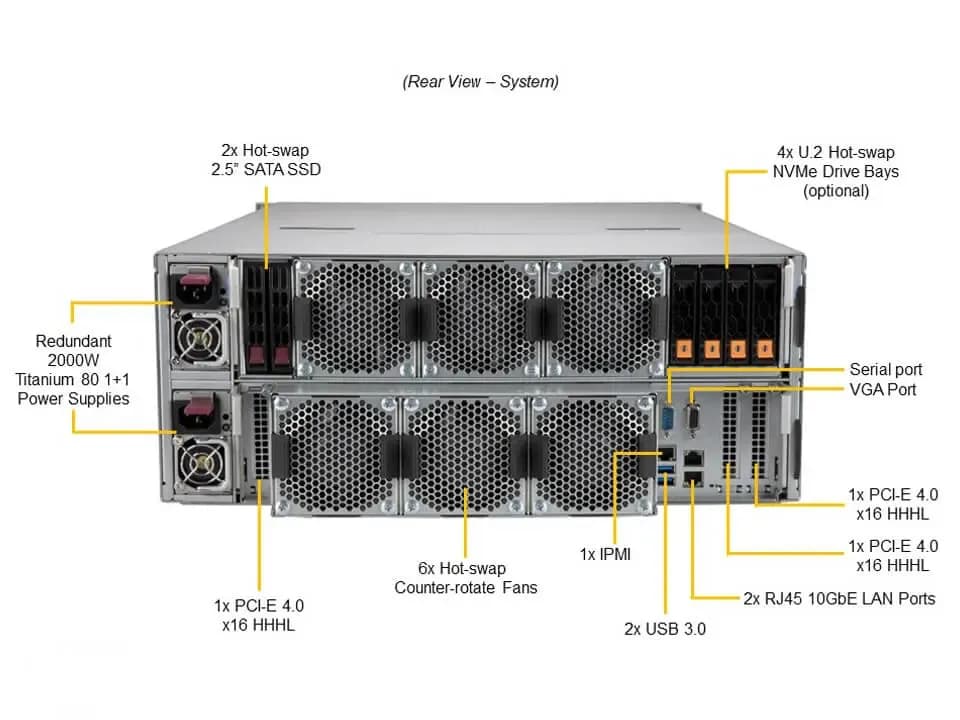

6x 8cm hot-swap counter-rotate redundant PWM cooling fans

2000W Redundant Power Supplies Titanium Level (96%)

Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN

Drive Controller support via Broadcom® 3916 or 3616

Product SKUs

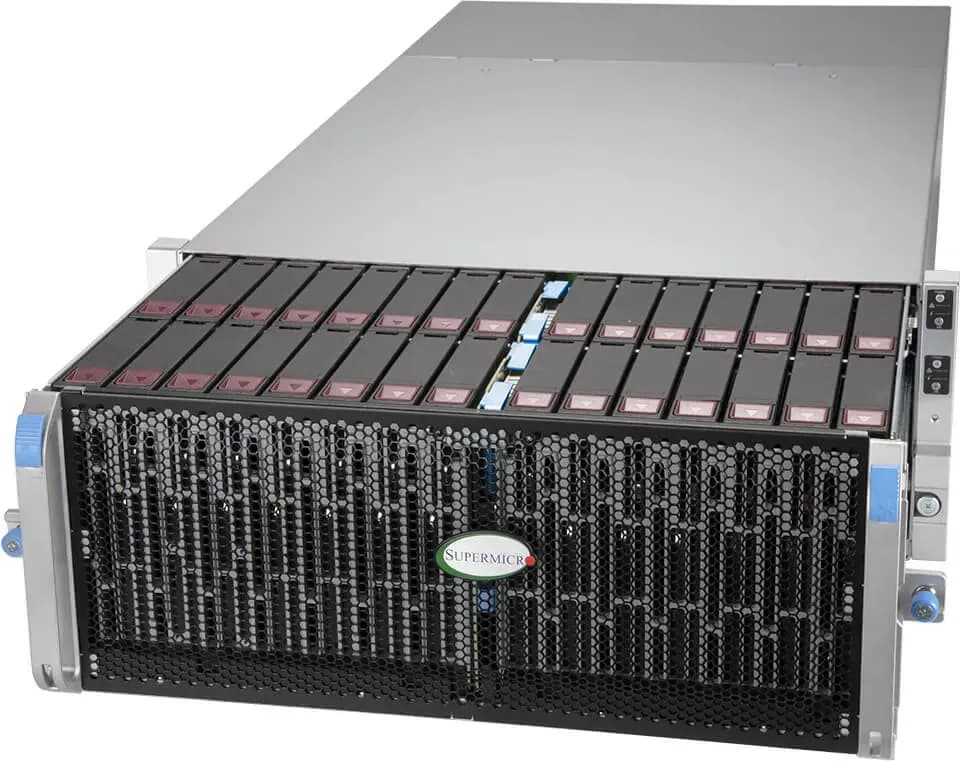

SuperServer SSG-640SP-E1CR60

Motherboard

Super X12DSC-6

Processor

CPU

Dual Socket P+ (LGA-4189)

3rd Gen Intel® Xeon® Scalable processors

Core Count

Up to 36C/72T; Up to 54MB Cache per CPU

Note

Supports 120W – 205W TDP CPUs (Air Cooled)

System Memory

Memory

Slot Count: 16 DIMM slots

Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

View Memory Options

Memory Voltage

1.2V

On-Board Devices

Chipset

Intel® C621A

Network Connectivity

2 RJ45 10GBASE-T

View AOC Options

Input / Output

LAN

1 RJ45 1 GbE Dedicated IPMI LAN port(s)

2 RJ45 10 GBASE-T LAN port(s)

USB

2 USB 3.0 port(s) (rear)

Video

1 VGA port(s)

DOM

2 SuperDOM (Disk on Module) port(s)

System BIOS

BIOS Type

AMI 128MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

Power-on mode for AC power recovery

ACPI Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

4+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

4U Rackmount

Model

CSV-947STS-R2K05P

Dimensions and Weight

Height

7″

Width

17.6″

Depth

34.1″

Package

29.92″ (H) x 31.89″ (W) x 44.88″ (D)

Weight

Gross Weight: 170.5 lbs (77.3 kg)

Net Weight: 118 lbs (53.5 kg)

Available Color

Black

Expansion Slots

PCI-Express (PCIe) Configuration

Default

3 PCIe 4.0 x16 LP slot(s)

View AOC Options

Drive Bays / Storage

Drive Bays Configuration

Default: Total 66 bay(s)

2 rear hot-swap 2.5″ SATA drive bay(s)

4 rear hot-swap 2.5″ NVMe* drive bay(s)

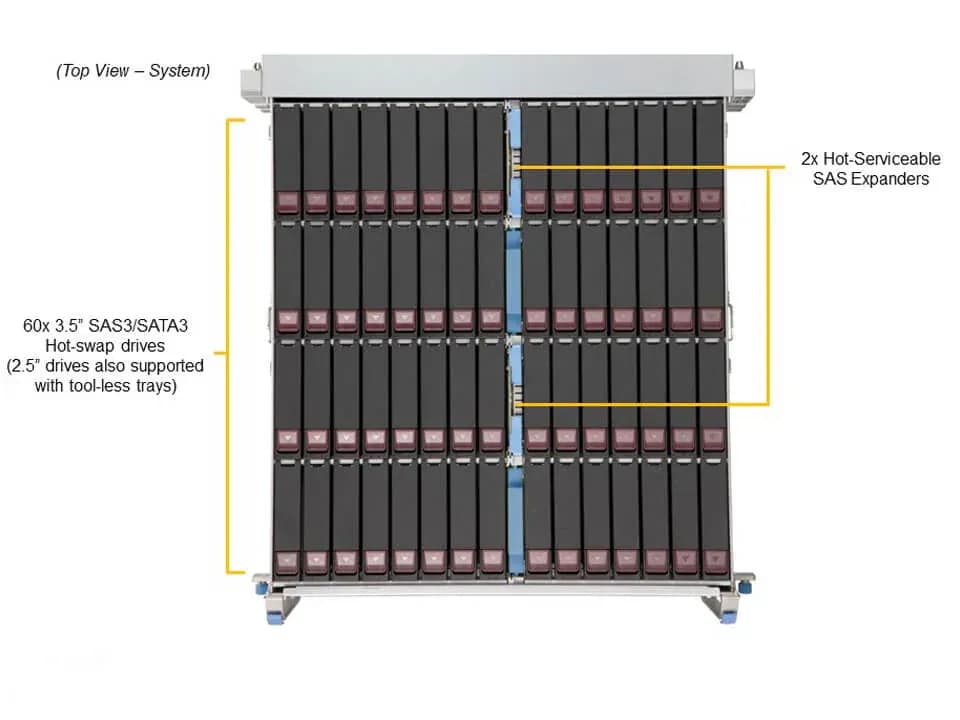

60 top-loading hot-swap 3.5″/2.5″ SAS/SATA drive bay(s)

(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)

View Drive Options

M.2

2 M.2 NVMe slot(s) (M-key)

View M.2 Options

System Cooling

Fans

6 Heavy Duty 8cm Fan(s)

Power Supply

2x 2000W Redundant Titanium Level (96%) Hot-plug power supplies

Dimension (WxHxL)

73.5 x 40 x 265 mm

AC Input

1000W: 100-120Vac / 50-60Hz

1800W: 200-220Vac / 50-60Hz

2000W: 200-240Vac / 50-60Hz (for UL/cUL only)

1980W: 220-230Vac / 50-60Hz

2000W: 230-240Vac / 50-60Hz

+12V

Max: 83.3A / Min: 0A (100Vac-120Vac)

Max: 150A / Min: 0A (200Vac-220Vac)

Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)

Max: 165A / Min: 0A (220Vac-230Vac)

Max: 166.7A / Min: 0A (230Vac-240Vac)

12V SB

Max: 2.1A / Min: 0A

Output Type

Backplanes (gold finger)

Certification

Titanium Level

[ Test Report ]

Operating Environment

ROHS

RoHS Compliant

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 90% ()

Non-operating Relative Humidity: 5% to 95% ()
