Key Applications

– Edge Computing

– Micro Data Center

– AI/ML, Deep Learning Training and Inference

– Virtualization

– Cloud Computing

Key Features

1. Supports up to 2 Active/Passive

Cooling NVIDIA® GPUs in 1U

2. Single Socket P (LGA 3647) supports

2nd Gen Intel® Xeon® Scalable

processor (Cascade Lake/Skylake)‡

3. 6 DIMMs; up to 1.5TB 3DS ECC

DDR4-2933MHz† RDIMM/LRDIMM,

Supports Intel® Optane™ DCPMM††

4. 2 PCI-E 3.0 x16 slots (support

double-width GPU), 1 PCI-E 3.0 x16

low-profile slot (center right)

5. 6 Hot-swap 2.5″ SAS/SATA drive bays

6. 2x 10GBase-T LAN ports via Intel X550

7. 2 M.2 form factor 2280, supports

both M.2 NVMe and SATA SSD

8. 8 Heavy duty 4cm counter-rotating

4cm fans with air shroud & optimal fan

speed control

9. 1400W High-efficiency Power Supply

Platinum Level (94%+)

Product SKUs

SYS-1019GP-TT

SuperServer 1019GP-TT

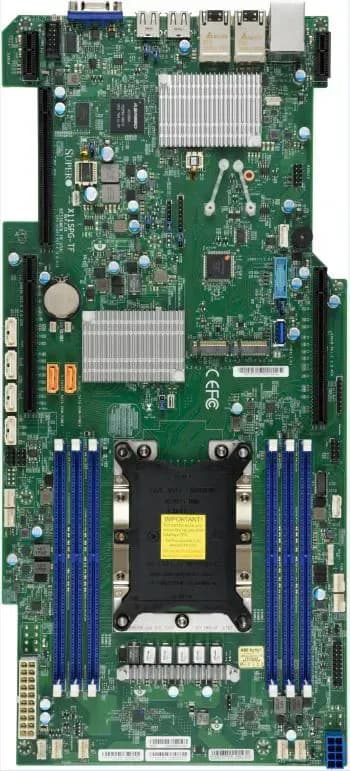

Motherboard

Super X11SPG-TF

Processor/Cache

CPU

Single Socket P (LGA 3647)

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡

Support CPU TDP 70-205W

Cores

Up to 28 Cores

Note

‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

GPU

Supported GPUs

2 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length)

NVIDIA V100, M10, P40, T4, Quadro RTX

Supports both active and passive cooled GPUs

Compatible GPU list

CPU-GPU Interconnect

PCI-E Gen 3 x16 Switch CPU-GPU Interconnect

System Memory

Memory Capacity

6 DIMM slots

Up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM

Supports Intel® Optane™ DCPMM††

Memory Type

2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note

† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices

Chipset

Intel® C621 chipset

SATA

SATA3 (6Gbps) with RAID 0, 1, 5, 10

Network Connectivity

Intel® X550 Dual Port 10GBase-T

Virtual Machine Device Queues reduce I/O overhead

Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

ASPEED AST2500

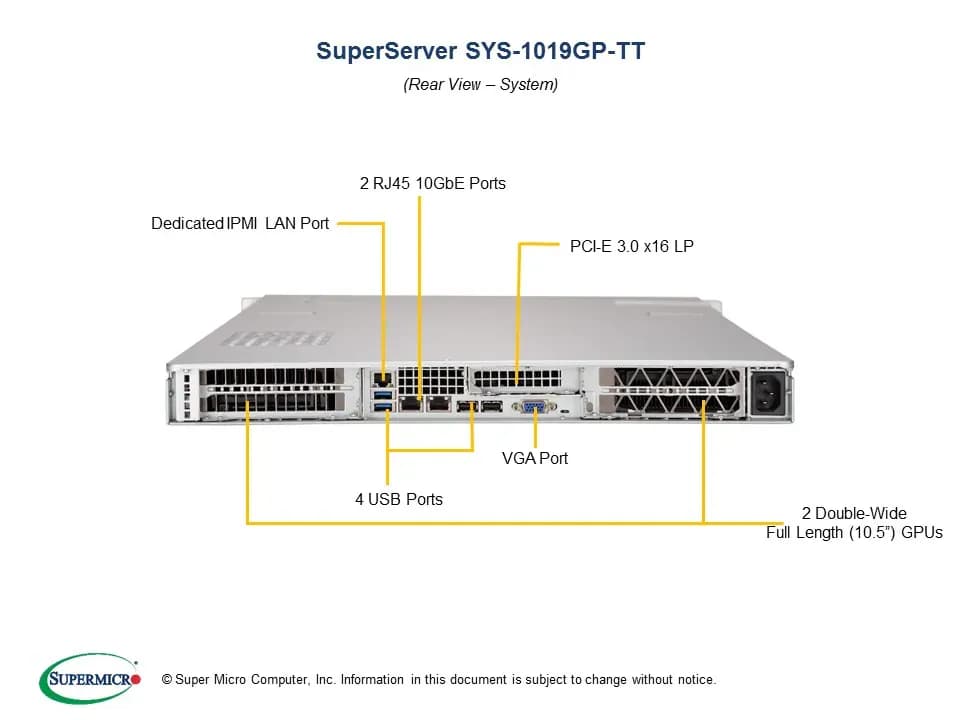

Input / Output

SATA

6 SATA3 (6Gbps) ports

LAN

2 RJ45 10GBase-T ports

1 RJ45 Dedicated IPMI LAN port

USB

2 USB 3.0 ports (rear)

2 USB 2.0 ports (rear)

Video

1 VGA port

Serial Port

1 COM Port header

DOM

2 DOM (Disk on Module) power connectors

System BIOS

BIOS Type

AMI 32Mb SPI Flash ROM

Management

Software

Intel® Node Manager

IPMI 2.0

KVM with dedicated LAN

NMI

SPM, SUM

SuperDoctor® 5

Watch Dog

Power Configurations

ACPI / APM Power Management

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory.

4+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

1U Rackmount

Model

CSE-118GTS-1K43BP2

Dimensions

Height

1.7″ (43mm)

Width

17.2″ (437mm)

Depth

28.5″ (724mm)

Weight

Net Weight: 28 lbs (12.70 kg)

Gross Weight: 36 lbs (16.33 kg)

Available Color

Black

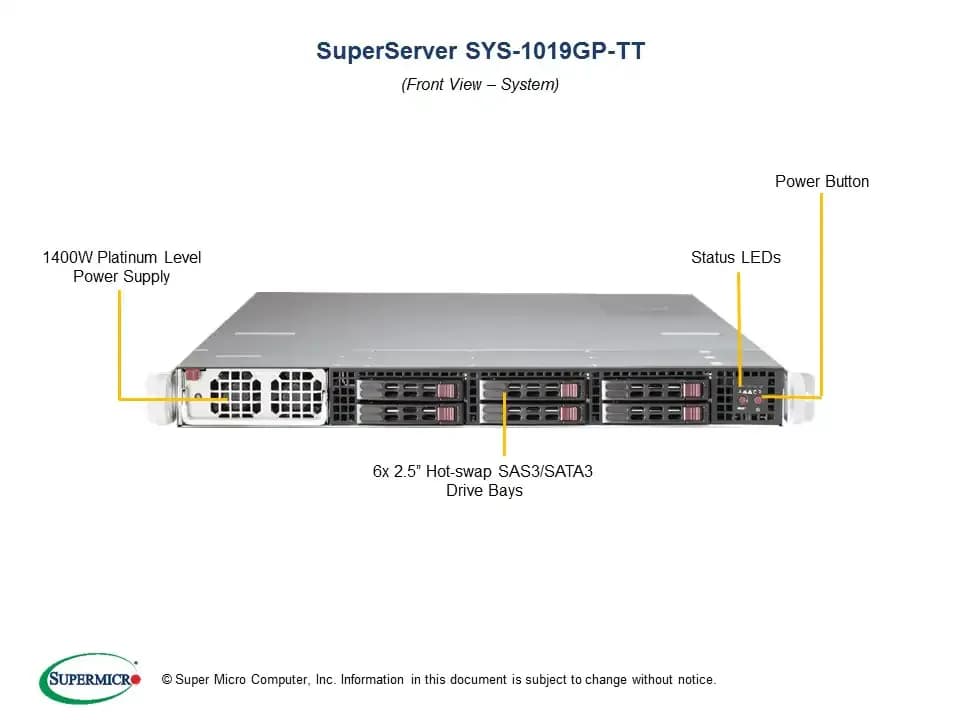

Front Panel

Buttons

Power On/Off button

System Reset button

LEDs

Power LED

Hard drive activity LED

Network activity LEDs

System Overheat LED / Fan fail LED

Expansion Slots

PCI-Express

2 PCI-E 3.0 x16 (FHFL) slots – supporting up to 2 GPUs

1 PCI-E 3.0 x16 slot (left riser)

Drive Bays / Storage

Hot-swap

6 Hot-swap 2.5″ SAS/SATA drive bays

M.2

Supports 2 M.2 form factor 2280

Supports both M.2 NVMe and SATA SSD

System Cooling

Fans

8 heavy duty counter-rotating 4cm fans with air shroud and optimal fan speed control

Power Supply

1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2

AC Voltage

1200W: 100-140 V, 14.7-10.5A, 50-60 Hz

1400W: 180-240 V, 10.5-8.0A, 50-60 Hz

+5V standby

6 Amp

+12V

100 Amp/115 Vac

117 Amp/230 Vac

With Power Distributor

+5V: 14 Amp

Certification

Platinum Certified

Operating Environment

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature:

10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature:

-40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity:

8% to 90% (non-condensing)

Non-operating Relative Humidity:

5% to 95% (non-condensing)
