Key Applications

– Edge Computing

– Micro Data Center

– AI/ML, Deep Learning Training and Inference

– Virtualization

– Cloud Computing

Key Features

1. Supports up to 4 Active/Passive

Cooling NVIDIA® GPUs in 1U

2. Dual Socket P (LGA 3647) support

2nd Gen Intel® Xeon® Scalable

processors (Cascade Lake/Skylake)‡

3. 12 DIMMs; up to 3TB 3DS ECC

DDR4-2933MHz† RDIMM/LRDIMM,

Supports Intel® Optane™ DCPMM††

4. 4 PCI-E 3.0 x16 (FHFL) slots,

2 PCI-E 3.0 x16 (LP) slots

5. 2 Hot-swap 2.5″ SAS/SATA

drive bays, 2 Internal 2.5″ SATA drive bays

6. Support 1x M.2 2242/2260/2280,

Support M.2 SATA and NVMe

7. 2x 10GBase-T LAN ports via Intel X540

8. 9 Heavy duty 4cm counter-rotating

fans with air shroud & optimal fan

speed control

9. 2000W Redundant Power Supplies

Titanium Level (96%)

Product SKUs

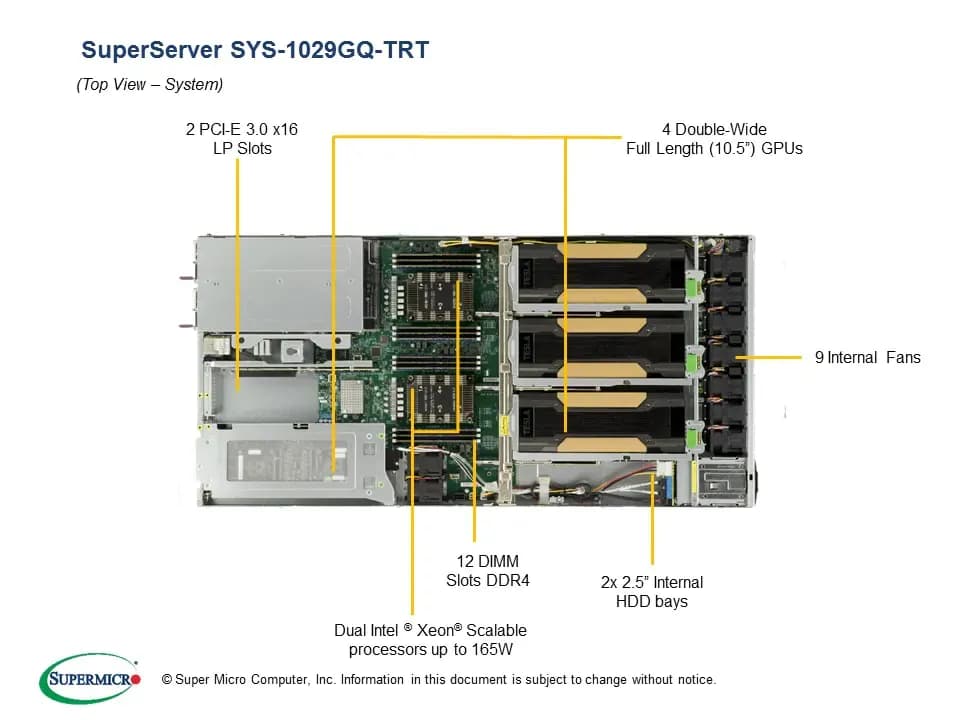

SYS-1029GQ-TRT

SuperServer 1029GQ-TRT

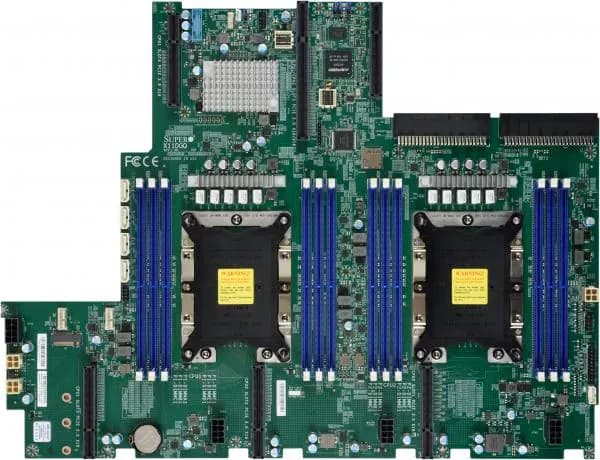

Motherboard

Super X11DGQ

Processor

CPU

Dual Socket P (LGA 3647)

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,

3 UPI up to 10.4GT/s

Support CPU TDP up to 165W

Cores

Up to 28 Cores

Note

‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.

GPU

Supported GPUs

4 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length)

NVIDIA V100, M10, T4, Quadro RTX, A100

Supports both active and passive cooled GPUs

Compatible GPU list

CPU-GPU Interconnect

PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root

System Memory

Memory Capacity

12 DIMM slots

Up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM

Supports Intel® Optane™ DCPMM††

Memory Type

2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note

† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices

Chipset

Intel® C621 chipset

SATA

SATA3 (6Gbps) with RAID 0, 1, 5, 10

Network Connectivity

Intel® X540 Dual Port 10GBase-T

Virtual Machine Device Queues reduce I/O overhead

Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

ASPEED AST2500 BMC

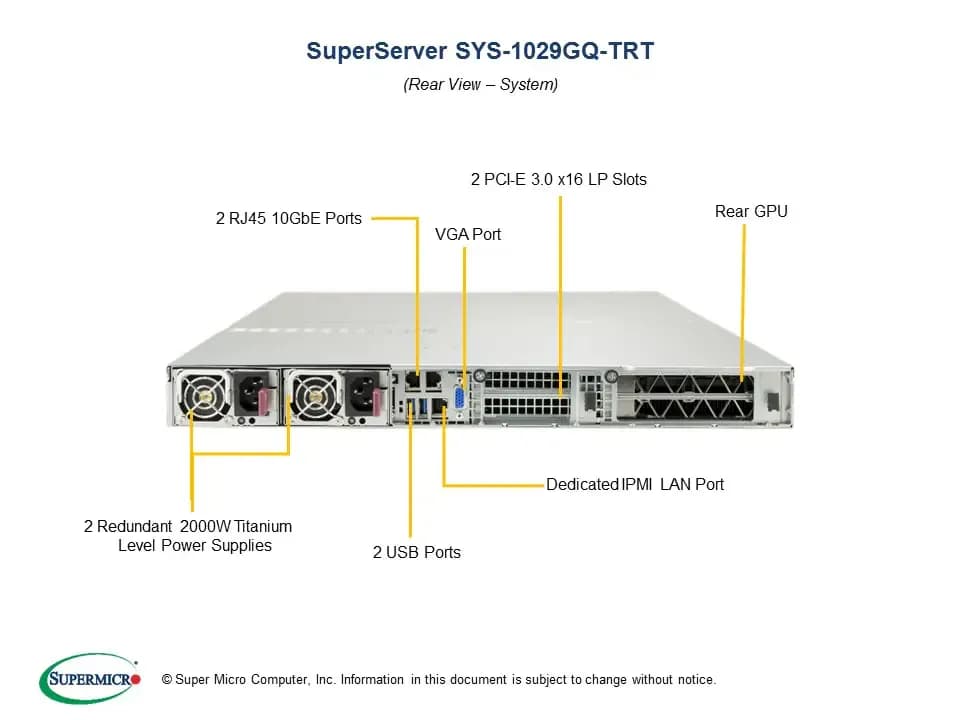

Input / Output

SATA

4 SATA3 (6Gbps) ports

LAN

2 RJ45 10GBase-T ports

1 RJ45 Dedicated IPMI LAN port

USB

2 USB 3.0 ports (rear)

Video

1 VGA port

Serial Header

1 Fast UART 16550 header

System BIOS

BIOS Type

AMI 32Mb SPI Flash ROM

Management

Software

Intel® Node Manager

IPMI 2.0

KVM with dedicated LAN

SSM, SPM, SUM

SuperDoctor® 5

Watch Dog

Power Configurations

ACPI / APM Power Management

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory.

4+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

1U Rackmount

Model

CSE-118GQETS-R2K05P2

Dimensions and Weight

Height

1.7″ (43mm)

Width

17.2″ (437mm)

Depth

35.2″ (894mm)

39.3″ (997mm) with rails

Package

24″ (H) x 8″ (W) x 46″ (D)

Weight

Net Weight: 45 lbs (20.4 kg)

Gross Weight: 58 lbs (26.31 kg)

Available Color

Black

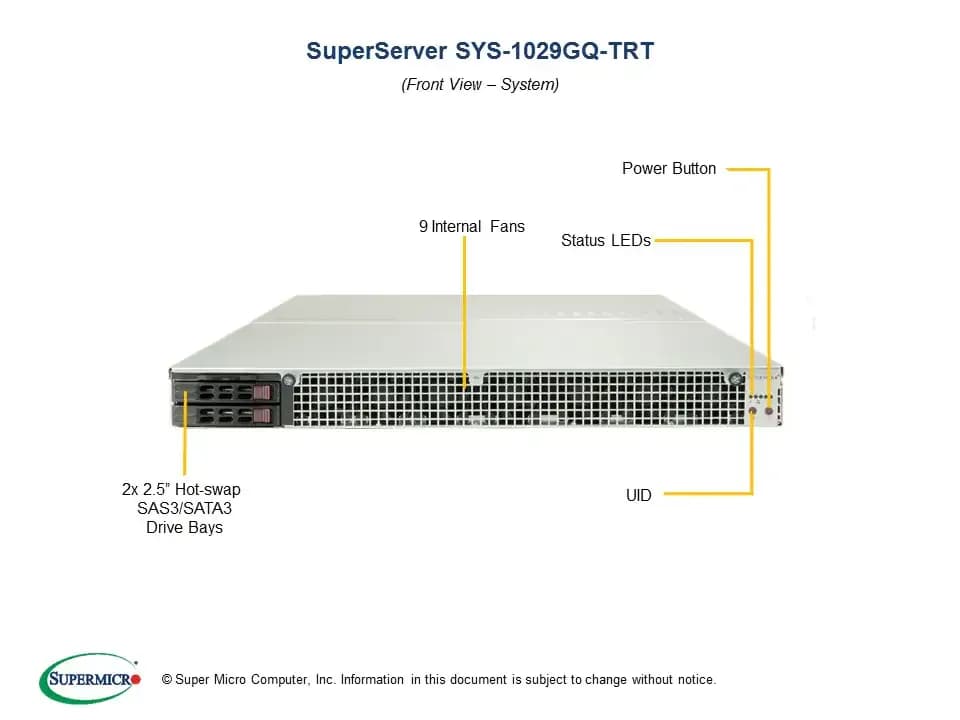

Front Panel

Buttons

Power On/Off button

System Reset button

LEDs

Power LED

Hard drive activity LED

Network activity LEDs

System Overheat LED / Fan fail LED /

UID LED

Expansion Slots

PCI-Express

4 PCI-E 3.0 x16 (FHFL) slots – supporting up to 4 GPUs

2 PCI-E 3.0 x16 (LP) slots

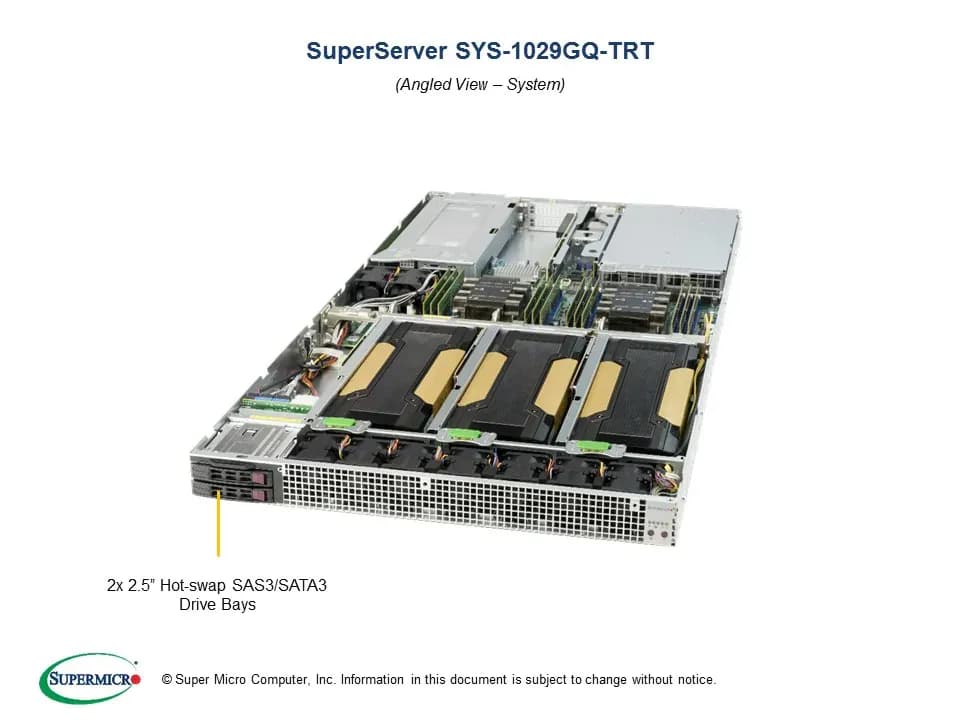

Drive Bays

Hot-swap

2 Hot-swap 2.5″ SAS/SATA drive bays

Fixed

2 Internal 2.5″ SATA drive bays

M.2

Support 1x M.2 2242/2260/2280

Support M.2 SATA and NVMe

System Cooling

Fans

9 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control

Power Supply

2000W Redundant Power Supplies with PMBus

Total Output Power

1000W: 100 – 120Vac

1800W: 200 – 220Vac

1980W: 220 – 230Vac

2000W: 230 – 240Vac

2000W: 200 – 240Vac (UL/CUL only)

Dimension

(W x H x L)

73.5 x 40 x 265 mm

Input

100-120Vac / 12.5-9.5A / 50-60Hz

200-220Vac / 10-9.5A / 50-60Hz

220-230Vac / 10-9.8A / 50-60Hz

230-240Vac / 10-9.8A / 50-60Hz

200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)

+12V

Max: 83.3A / Min: 0A (100-120Vac)

Max: 150A / Min: 0A (200-220Vac)

Max: 165A / Min: 0A (220-230Vac)

Max: 166.7A / Min: 0A (230-240Vac)

Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)

12Vsb

Max: 2.1A / Min: 0A

Output Type

25 Pairs Gold Finger Connector

Certification

Titanium Level

[ Test Report ]

Operating Environment

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature:

10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature:

-40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity:

8% to 90% (non-condensing)

Non-operating Relative Humidity:

5% to 95% (non-condensing)
