Key Applications / Features - Mission-critical applications - High Availability Storage Appliance Platform Two hot-pluggable systems (nodes) in a 1U form factor. Each node supports the following: 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡ 2. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM 3. 2 PCI-E 3.0 x16 slots 4. Flexible Networking support via SIOM; Dedicated IPMI 2.0 LAN 5. 4 Hot-swap 2.5" SATA3 drive bays 6. 2 SuperDOM onboard or optional 2 M.2 carrier 7. Up to 1000W Redundant Power Supplies Titanium Level (96%)

Key Applications / Features

– Mission-critical applications

– High Availability Storage

Appliance Platform

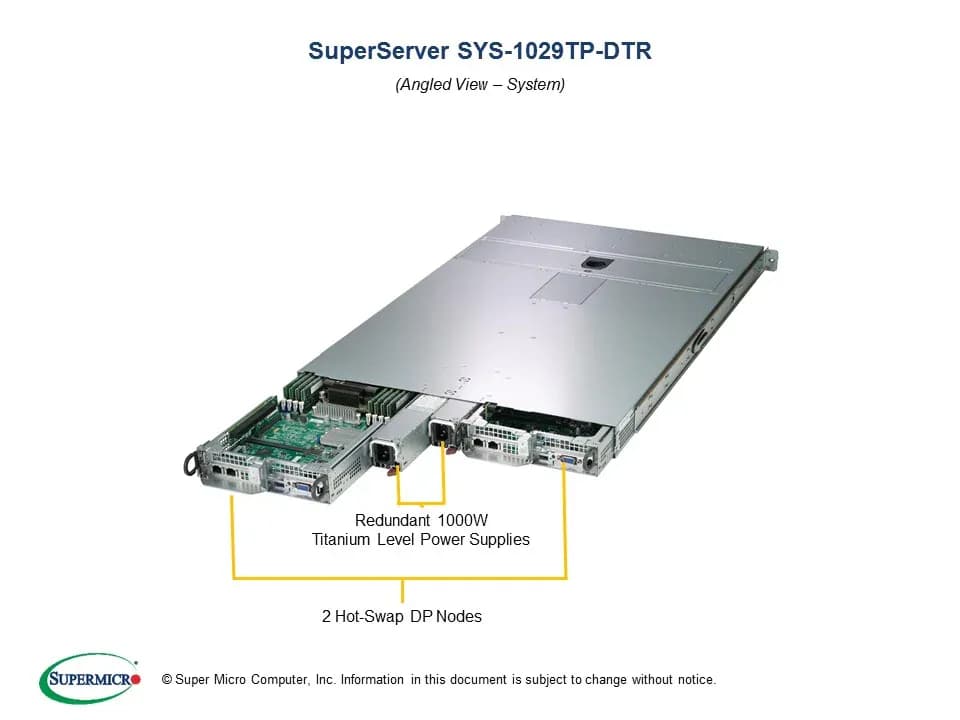

Two hot-pluggable systems (nodes) in a 1U form factor. Each node supports the following:

1. Dual Socket P (LGA 3647) support

2nd Gen Intel® Xeon® Scalable

processors (Cascade Lake/Skylake)‡

2. 16 DIMMs; up to 4TB 3DS ECC

DDR4-2933MHz† RDIMM/LRDIMM

3. 2 PCI-E 3.0 x16 slots

4. Flexible Networking support via SIOM;

Dedicated IPMI 2.0 LAN

5. 4 Hot-swap 2.5″ SATA3 drive bays

6. 2 SuperDOM onboard or optional

2 M.2 carrier

7. Up to 1000W Redundant Power Supplies

Titanium Level (96%)

Product SKUs

SYS-1029TP-DTR

SuperServer 1029TP-DTR (Black)

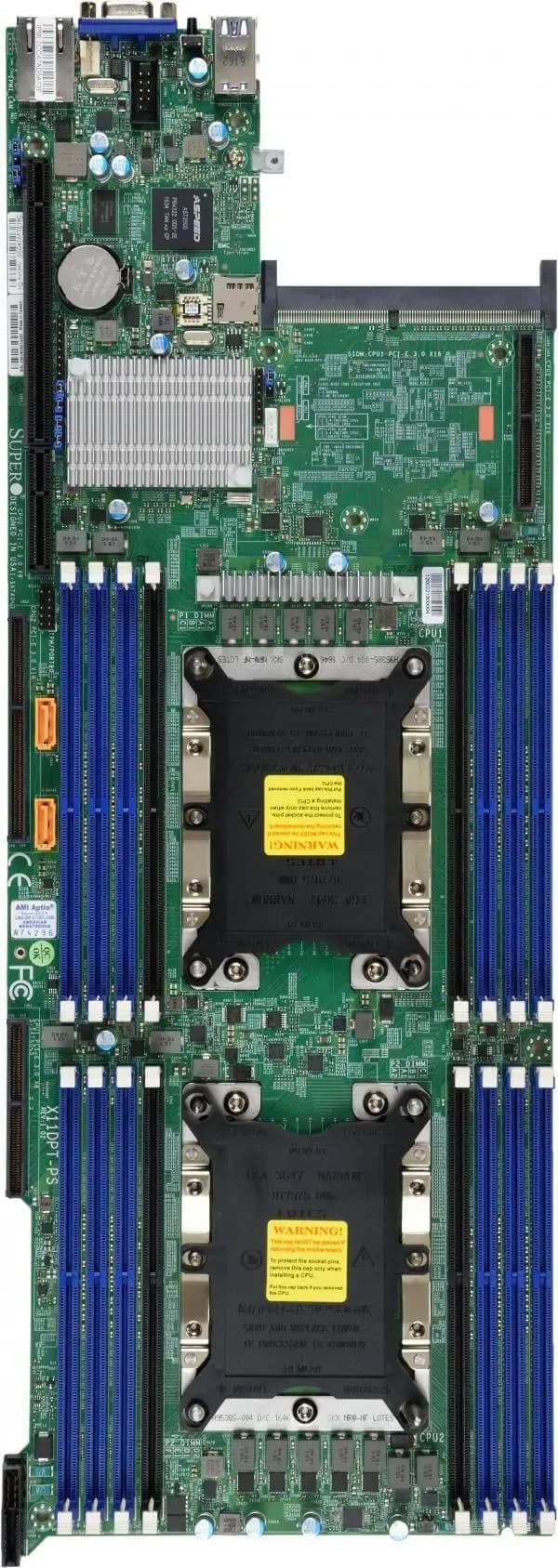

Motherboard (Two per System)

Super X11DPT-PS

Processor (per Node)

CPU

Dual Socket P (LGA 3647)

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,

Dual UPI up to 10.4GT/s

Support CPU TDP 70-145W (Consult with SYS PM for higher CPU TDP Supports)

Cores

Up to 28 Cores

Note

*Processors ending N or S are optimized for networking and storage applications. Customer need POC their application and observe any thermal throttling before large deployment.

Note

‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

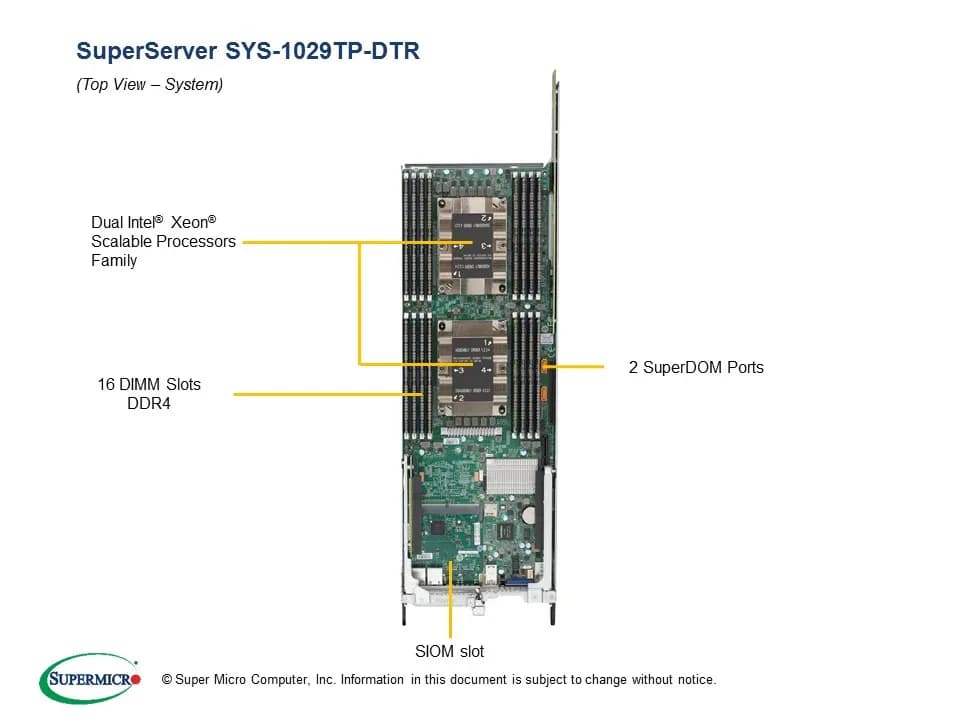

System Memory (per Node)

Memory Capacity

16 DIMM slots

Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM

Memory Type

2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note

† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

On-Board Devices (per Node)

Chipset

Intel® C621 chipset

SATA

SATA3 (6Gbps); RAID 0, 1, 5, 10

Network Controllers

Barebones and Complete System must have at least one SIOM card installed per node

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

ASPEED AST2500 BMC

Input / Output (per Node)

SATA

4 SATA3 (6Gbps) ports

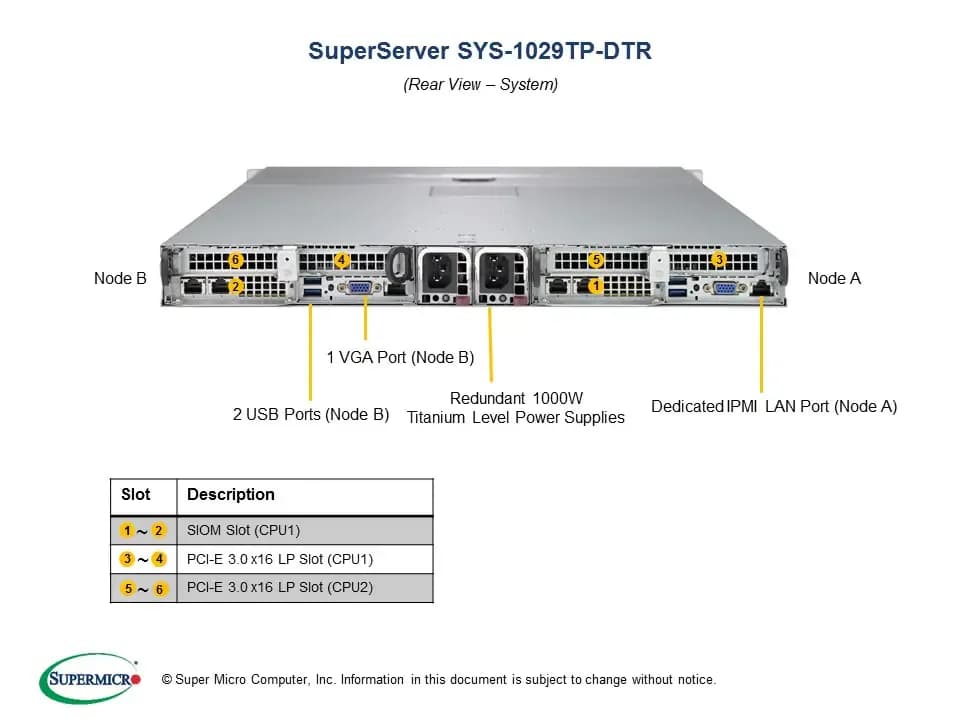

LAN

1 RJ45 Dedicated IPMI LAN port

USB

2 USB 3.0 ports (rear)

VGA

1 VGA port

Serial Port / Header

1 Fast UART 16550 port / 1 Header (internal)

Others

2 SuperDOM support on the motherboard

1 NVMe or 2 SATA M.2 (22×80/60/42 mm) support with option part: AOC-SMG3-2H8M2

M.2 and SuperDOM are for OS boot and they cannot coexist

System BIOS

BIOS Type

AMI 32MB SPI Flash ROM

Management

Software

Intel® Node Manager

IPMI 2.0

KVM with dedicated LAN

NMI

SSM, SPM, SUM

SuperDoctor® 5

Watchdog

Power Configurations

ACPI Power Management

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory.

4+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Product SKUs

SYS-1029TP-DTR

SuperServer 1029TP-DTR (Black)

Motherboard (Two per System)

Super X11DPT-PS

Processor (per Node)

CPU

Dual Socket P (LGA 3647)

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,

Dual UPI up to 10.4GT/s

Support CPU TDP 70-145W (Consult with SYS PM for higher CPU TDP Supports)

Cores

Up to 28 Cores

Note

*Processors ending N or S are optimized for networking and storage applications. Customer need POC their application and observe any thermal throttling before large deployment.

Note

‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory (per Node)

Memory Capacity

16 DIMM slots

Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM

Memory Type

2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note

† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

On-Board Devices (per Node)

Chipset

Intel® C621 chipset

SATA

SATA3 (6Gbps); RAID 0, 1, 5, 10

Network Controllers

Barebones and Complete System must have at least one SIOM card installed per node

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

ASPEED AST2500 BMC

Input / Output (per Node)

SATA

4 SATA3 (6Gbps) ports

LAN

1 RJ45 Dedicated IPMI LAN port

USB

2 USB 3.0 ports (rear)

VGA

1 VGA port

Serial Port / Header

1 Fast UART 16550 port / 1 Header (internal)

Others

2 SuperDOM support on the motherboard

1 NVMe or 2 SATA M.2 (22×80/60/42 mm) support with option part: AOC-SMG3-2H8M2

M.2 and SuperDOM are for OS boot and they cannot coexist

System BIOS

BIOS Type

AMI 32MB SPI Flash ROM

Management

Software

Intel® Node Manager

IPMI 2.0

KVM with dedicated LAN

NMI

SSM, SPM, SUM

SuperDoctor® 5

Watchdog

Power Configurations

ACPI Power Management

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory.

4+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

1U Rackmount

Model

CSE-809H-R1K05P3

Dimensions and Weight

Width

17.2″ (437mm)

Height

1.7″ (88mm)

Depth

28.25″ (718mm)

Package

29.6″ (W) x 8″ (H) x 38.4″ (L)

Weight

Gross Weight: 48.1 lbs (21.9 kg)

Net Weight: 33.5 lbs (15.2 kg)

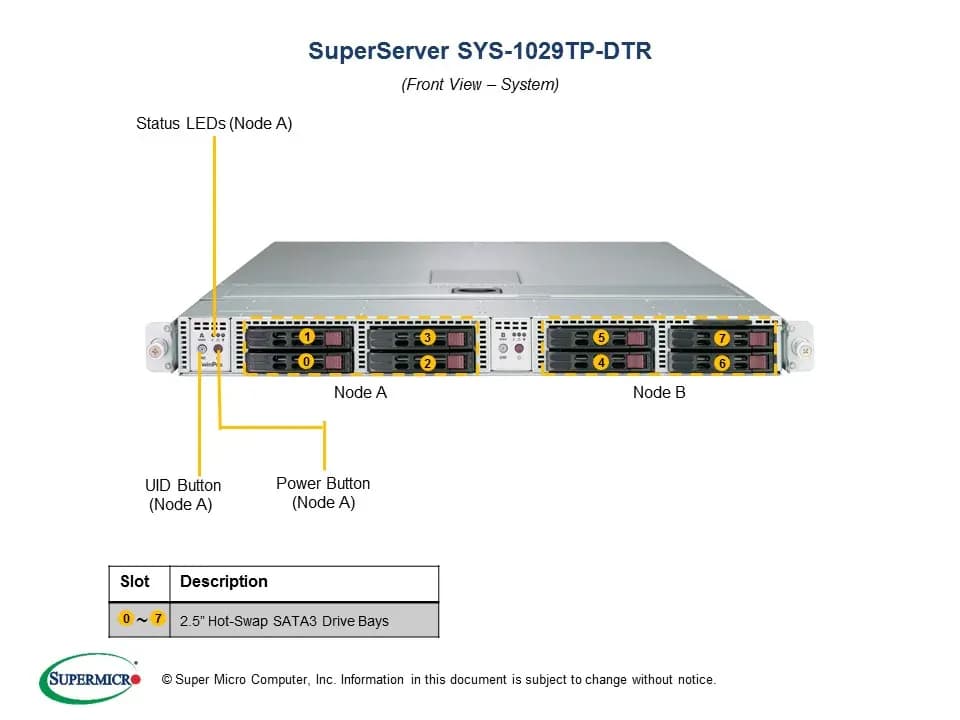

Front Panel

Buttons

Power On/Off button

UID button

LEDs

Power status LED

HDD activity LED

Network activity LEDs

Universal Information (UID) LED

Expansion Slots (per Node)

PCI-Express

2 PCI-E 3.0 x16 Low-profile slots

1 SIOM card support

Note: Barebones and Complete System must bundle with SIOM

(With only one CPU installed, SXB2 M.2 and SXB4 riser card slots not function)

Drive Bays (per Node)

Hot-swap

4 Hot-swap 2.5″ SAS3/SATA3 drive bays

Backplane

SAS3 backplane

System Cooling

Fans

3 Heavy duty counter rotating fans with air shroud and optimal fan speed control

PowerStick Power Supply

1000W 1U Redundant Power Supplies with PMBus

Total Output Power

800W: 100 – 127Vac

1000W: 200 – 240Vac

Dimension

(W x H x L)

38 x 40 x 360 mm

Input

100-127Vac / 9-7.5A / 50-60Hz

200-240Vac / 6-5A / 50-60Hz

+12V

Max: 66.7A / Min: 0A (100-127Vac)

Max: 83A / Min: 0A (200-240Vac)

+5Vsb

Max: 4A / Min: 0A

Output Type

Gold Finger Connector (16 Power Pin, 14 Signal Pin)

Certification

Titanium Level

[ Test Report ]

Operating Environment

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature:

10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature:

-40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity:

8% to 90% (non-condensing)

Non-operating Relative Humidity:

5% to 95% (non-condensing)
