Key Features - Compute Intensive Application - HPC, Data Center, Enterprise Server - Hyperscale / Hyperconverged Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following: 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡ 2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM†† 3. 2 PCI-E 3.0 x16 (LP) slot; 1 SIOM card support (flexible networking) Note: must bundle with Network card 4. 6 Hot-swap 2.5" NVMe drive bays; 2 M.2 SATA3 or NVMe support 5. 1 Carrier Card slot (M.2 support) 6. IPMI 2.0 + KVM with dedicated LAN 7. Video via Aspeed AST2500 BMC 8. 16 Heavy duty 40x56mm fans with optimal fan speed control (4 fans per node) 9. 2600W Redundant Power Supplies Titanium Level (96%)

Key Features

– Compute Intensive Application

– HPC, Data Center, Enterprise

Server

– Hyperscale / Hyperconverged

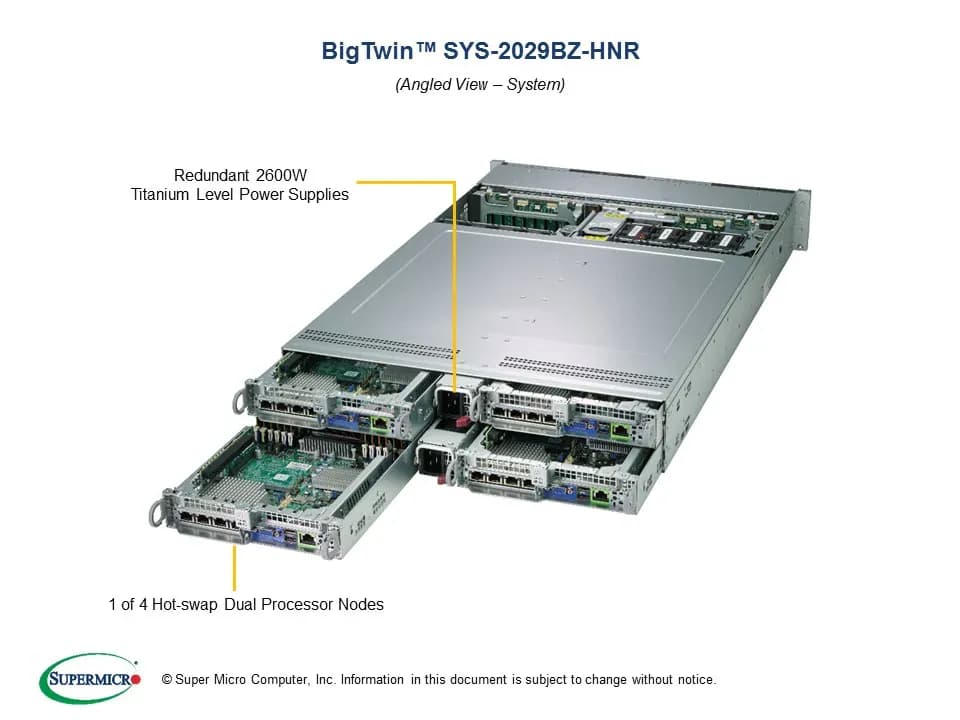

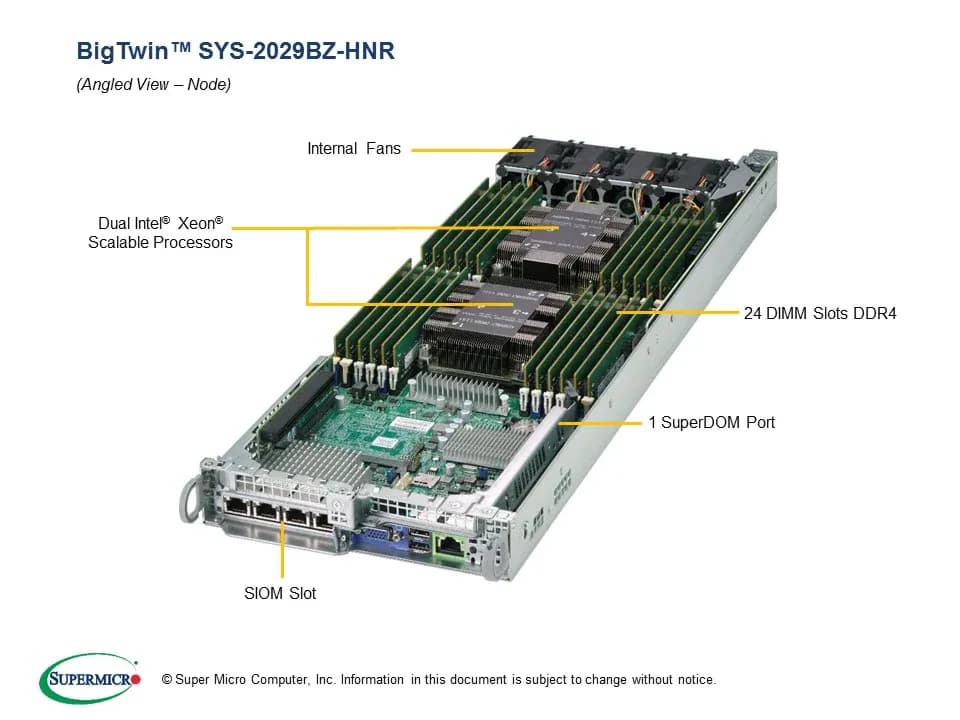

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

1. Dual Socket P (LGA 3647) support

2nd Gen Intel® Xeon® Scalable

processors (Cascade Lake/Skylake)‡

2. 24 DIMMs; up to 6TB 3DS ECC

DDR4-2933MHz† RDIMM/LRDIMM,

Supports Intel® Optane™ DCPMM††

3. 2 PCI-E 3.0 x16 (LP) slot; 1 SIOM

card support (flexible networking)

Note: must bundle with Network card

4. 6 Hot-swap 2.5″ NVMe drive bays;

2 M.2 SATA3 or NVMe support

5. 1 Carrier Card slot (M.2 support)

6. IPMI 2.0 + KVM with dedicated LAN

7. Video via Aspeed AST2500 BMC

8. 16 Heavy duty 40x56mm fans

with optimal fan speed control

(4 fans per node)

9. 2600W Redundant Power Supplies

Titanium Level (96%)

Product SKUs

SYS-2029BZ-HNR

SuperServer 2029BZ-HNR (Black)

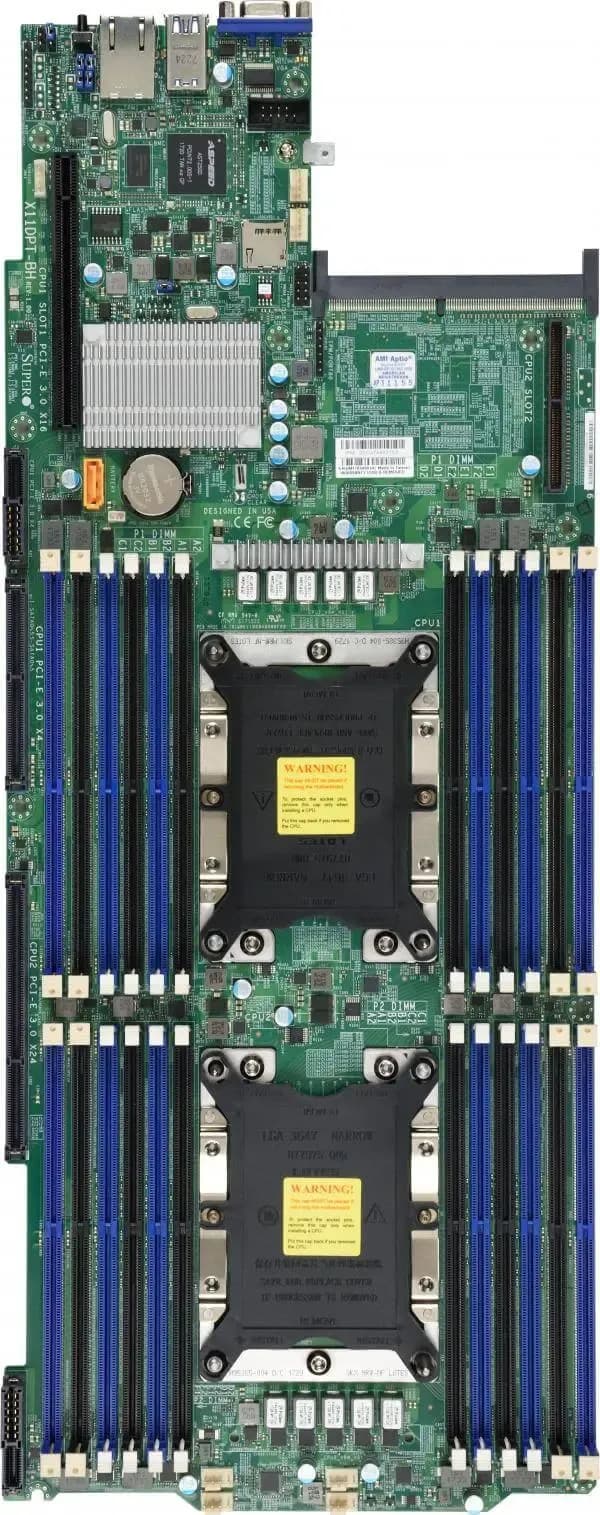

Motherboard

Super X11DPT-BH

Processor

CPU

Dual Socket P (LGA 3647)

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,

3 UPI up to 10.4GT/s

Support CPU TDP 70-205W*

Cores

Up to 28 Cores

Note

* 200W/205W CPUs are supported under certain configurations. Please contact Supermicro Technical Support for additional information about specialized system optimization

Note

‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.

System Memory

Memory Capacity

24 DIMM slots

Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM

Supports Intel® Optane™ DCPMM††

Memory Type

2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note

† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices

Chipset

Intel® C621 chipset

Network

Must bundle with at least one SIOM network card

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Video

ASPEED AST2500 BMC

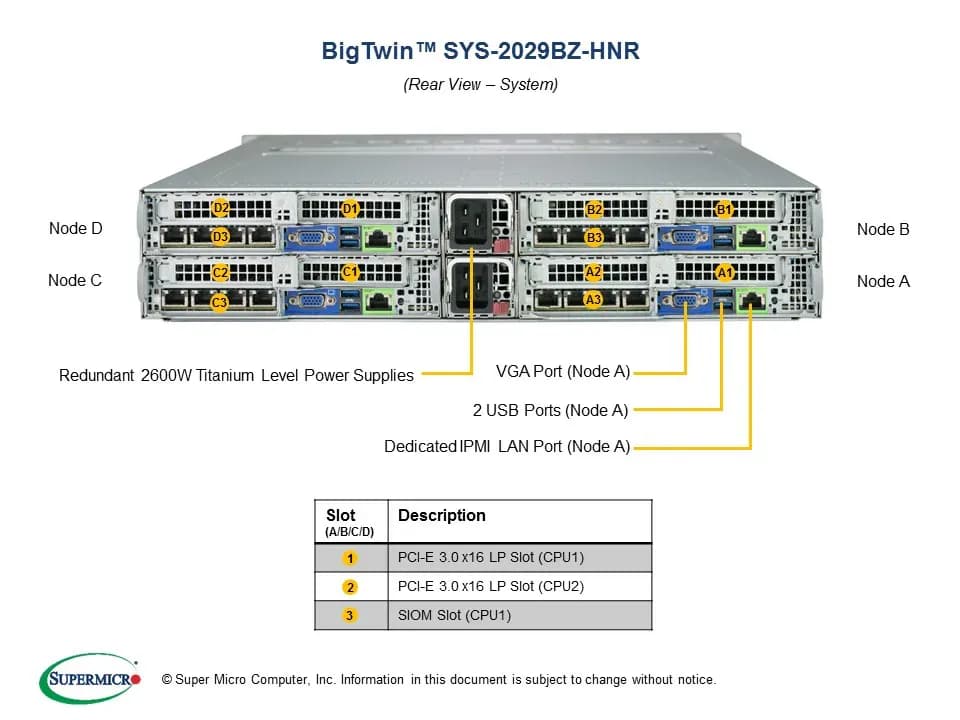

Input / Output (per Node)

LAN

1 RJ45 Dedicated IPMI LAN port

USB

2 USB 3.0 ports (rear)

Video

1 VGA port

DOM

1 SuperDOM (Disk on Module) port

Others

M.2 and SATA DOM for boot drive only

System BIOS

BIOS Type

AMI 32Mb SPI Flash ROM

Management

Software

Intel® Node Manager

IPMI 2.0

KVM with dedicated LAN

SSM, SPM, SUM

SuperDoctor® 5

Watch Dog

Power Configurations

ACPI / APM Power Management

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory.

4+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

2U Rackmount

Model

CSE-217BHQ+-R2K60FP

Dimensions and Weight

Width

17.6″ (447mm)

Height

3.47″ (88mm)

Depth

28.75″ (730mm)

Package

24.65″ (H) x 9.76″ (W) x 45.28″ (D)

Weight

Gross Weight: 85 lbs (38.6kg)

Net Weight: 54.5 lbs (24.7 kg)

Available Colors

Black

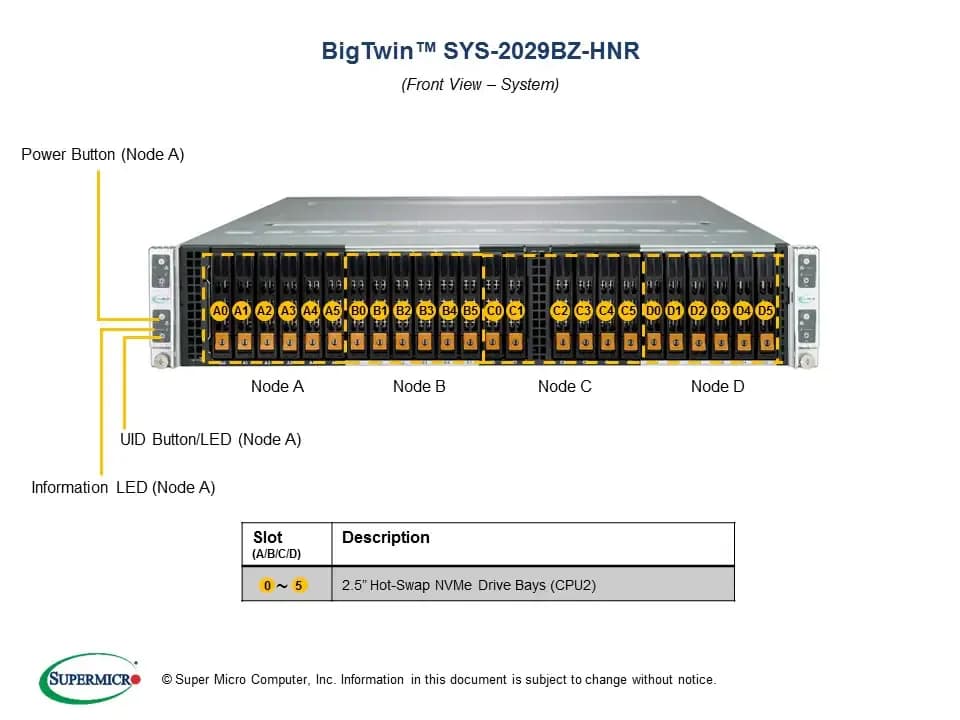

Front Panel

Buttons

Power On/Off button

UID button

LEDs

Power status LED

HDD activity LED

Network activity LEDs

Universal Information (UID) LED

Expansion Slots (per Node)

PCI-Express

2 PCI-E 3.0 (x16) Low-profile slots

1 SIOM card support

(must bundle with network card)

Drive Bays / Storage (per Node)

Hot-swap

6 Hot-swap 2.5″ NVMe drive bays

M.2

2 M.2 NVMe or SATA (2240/2260/2280) via optional AOC-SMG3-2H8M2-B

System Cooling

Fans

16 Heavy duty 40x56mm PWM fans with air shroud (4 fans per node)

AC/DC240V Input Redundant Power Supply

2600W Redundant Power Supplies with PMBus

Total Output Power

2600W: 208 – 240Vac

2600W: 220 – 240Vdc (for CQC only)

Dimension

(W x H x L)

45 x 40 x 480 mm

Input

208-240Vac/15-12.5A / 50-60Hz

220-240Vdc/13.5-12.5A (CQC only)

+12V

Max: 216.6A / Min: 0A

12Vsb

Max: 4.5A / Min: 0A

Output Type

Gold Finger (4HP+2LP-20S output connector)

Certification

Titanium Level

[ Test Report ]

Operating Environment

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature:

10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature:

-40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity:

8% to 90% (non-condensing)

Non-operating Relative Humidity:

5% to 95% (non-condensing)
