Key Applications - 2D/3D and CAD Applications - Big Data Analytics - Edge Computing - VDI - Cloud Computing - Virtualization Key Features 1. Supports up to 6 GPUs 2. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡ 3. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM†† 4. 6 PCI-E 3.0 x16 slots (FHFL), 1 PCI-E 3.0 x8 (in x16) slot (LP) 5. 8 Hot-swap 2.5" SAS/SATA drive bays, 2 Hot-swap 2.5" SATA/NVMe drive bays 6. 1 SIOM for flexible Networking 7. 5x 80mm heavy duty fans with optimal fan speed control 8. 2000W (1+1) Redundant Power Supplies Platinum Level (94%)

Key Applications

– 2D/3D and CAD Applications

– Big Data Analytics

– Edge Computing

– VDI

– Cloud Computing

– Virtualization

Key Features

1. Supports up to 6 GPUs

2. Dual Socket P (LGA 3647) support

2nd Gen Intel® Xeon® Scalable

processors (Cascade Lake/Skylake)‡

3. 16 DIMMs; up to 4TB 3DS ECC

DDR4-2933MHz† RDIMM/LRDIMM,

Supports Intel® Optane™ DCPMM††

4. 6 PCI-E 3.0 x16 slots (FHFL),

1 PCI-E 3.0 x8 (in x16) slot (LP)

5. 8 Hot-swap 2.5″ SAS/SATA

drive bays, 2 Hot-swap 2.5″

SATA/NVMe drive bays

6. 1 SIOM for flexible Networking

7. 5x 80mm heavy duty fans with

optimal fan speed control

8. 2000W (1+1) Redundant Power Supplies

Platinum Level (94%)

Product SKUs

SYS-2029GP-TR

SuperServer 2029GP-TR (Black)

Motherboard

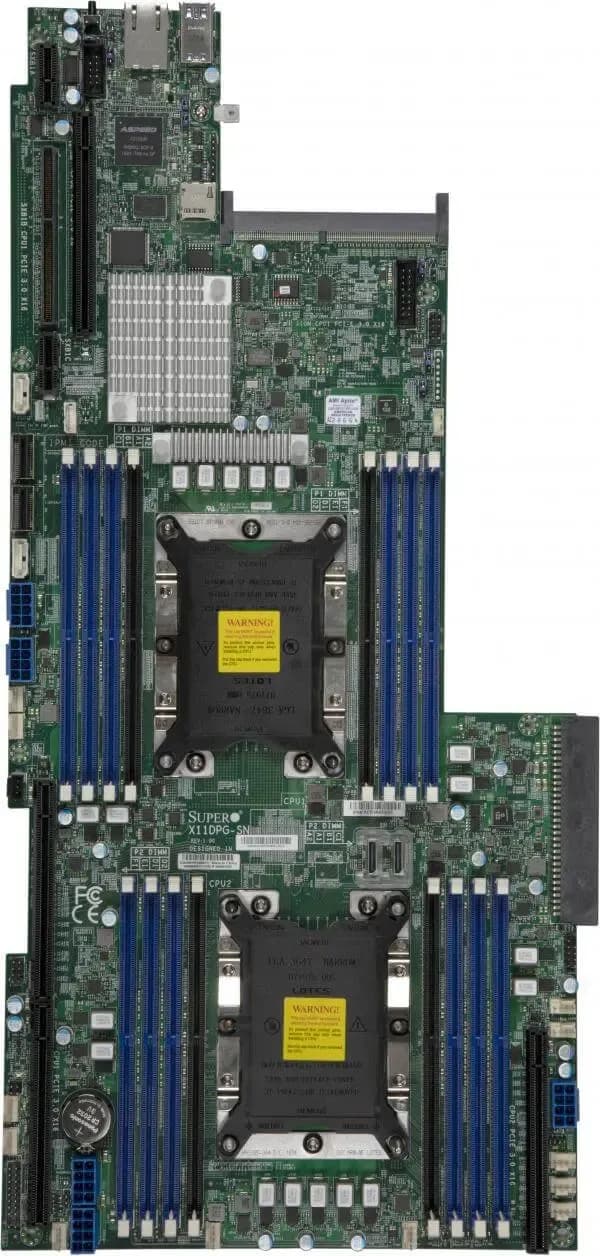

Super X11DPG-SN

Processor

CPU

Dual Socket P (LGA 3647)

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,

3 UPI up to 10.4GT/s

Support CPU TDP 70-205W

Cores

Up to 28 Cores

Note

‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

GPU

Supported GPUs

6 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length)

NVIDIA V100, M10, T4, Quadro RTX

Compatible GPU list

CPU-GPU Interconnect

PCI-E Gen 3 x16 Switch CPU-GPU Interconnect

System Memory

Memory Capacity

16 DIMM slots

Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM

Supports Intel® Optane™ DCPMM††

Memory Type

2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note

† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices

Chipset

Intel® C621 chipset

SATA

SATA3 (6Gbps) with RAID 0, 1, 5, 10

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

ASPEED AST2500 BMC

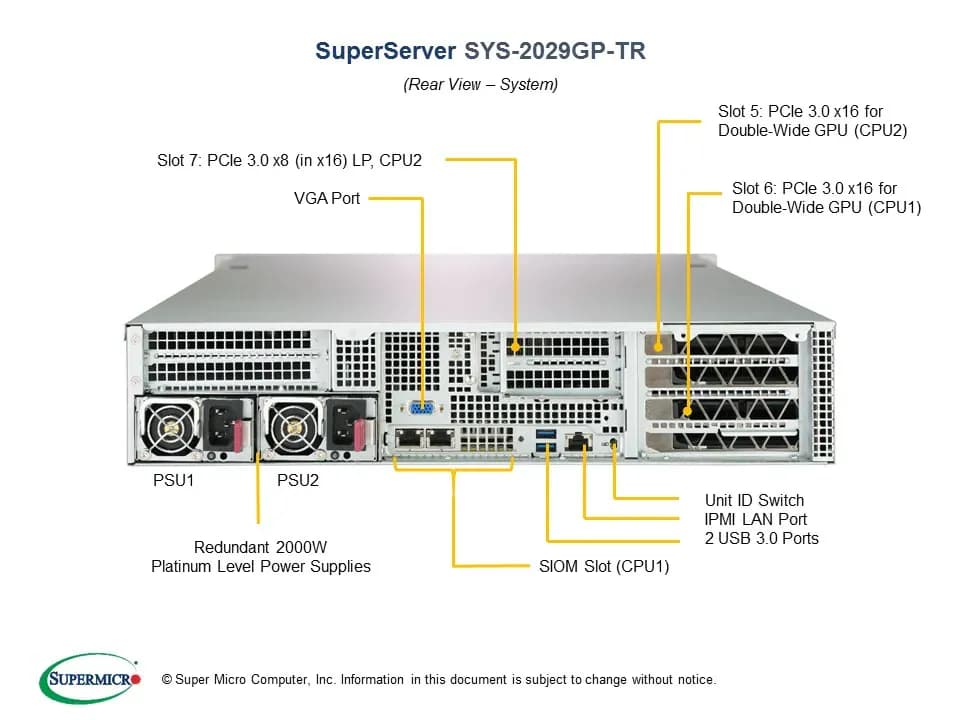

Input / Output

LAN

1 RJ45 Dedicated IPMI LAN port

USB

2 USB 3.0 ports (rear)

Video

1 VGA port

Serial Header

1 Fast UART 16550 header

System BIOS

BIOS Type

AMI 256Mb SPI Flash ROM

Management

Software

Intel® Node Manager

IPMI 2.0

KVM with dedicated LAN

SSM, SPM, SUM

SuperDoctor® 5

Watch Dog

Power Configurations

ACPI / APM Power Management

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory.

4+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

2U Rackmount

Model

CSE-218GH-R2K03B

Dimensions and Weight

Height

3.5″ (89mm)

Width

17.2″ (437mm)

Depth

31″ (787mm)

Package

26.5″ (H) x 11″ (W) x 44.5″ (D)

Weight

Net Weight: 39.5 lbs (17.9 kg)

Gross Weight: 54 lbs (24.5 kg)

Available Color

Black

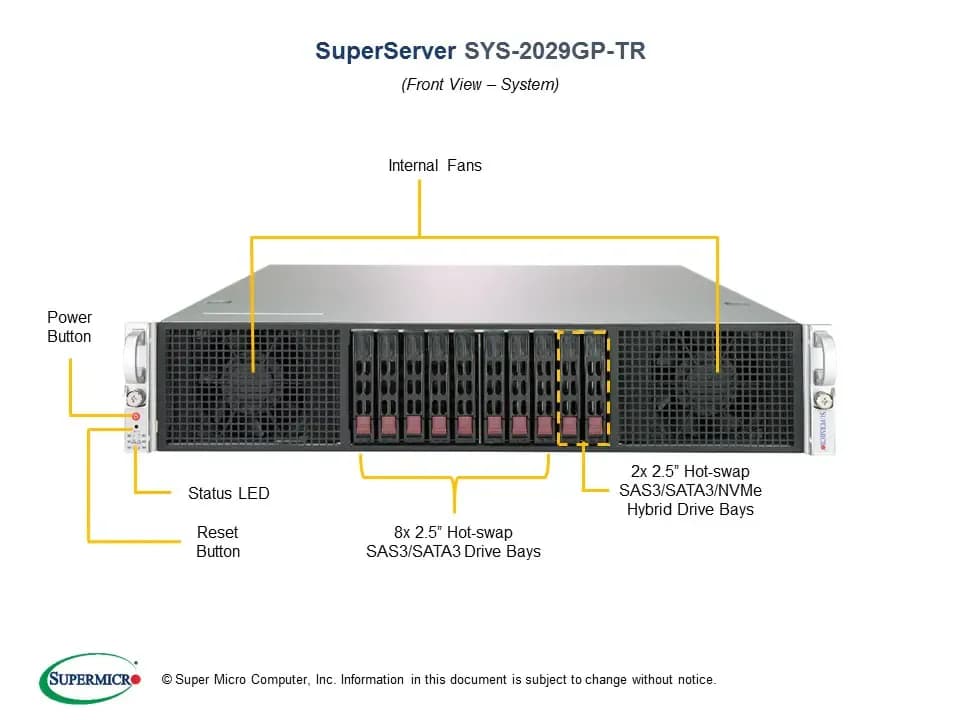

Front Panel

Buttons

Power On/Off button

System Reset button

LEDs

Power LED

Hard drive activity LED

Network activity LEDs

System Overheat LED / Fan fail LED / UID LED

Expansion Slots

PCI-Express

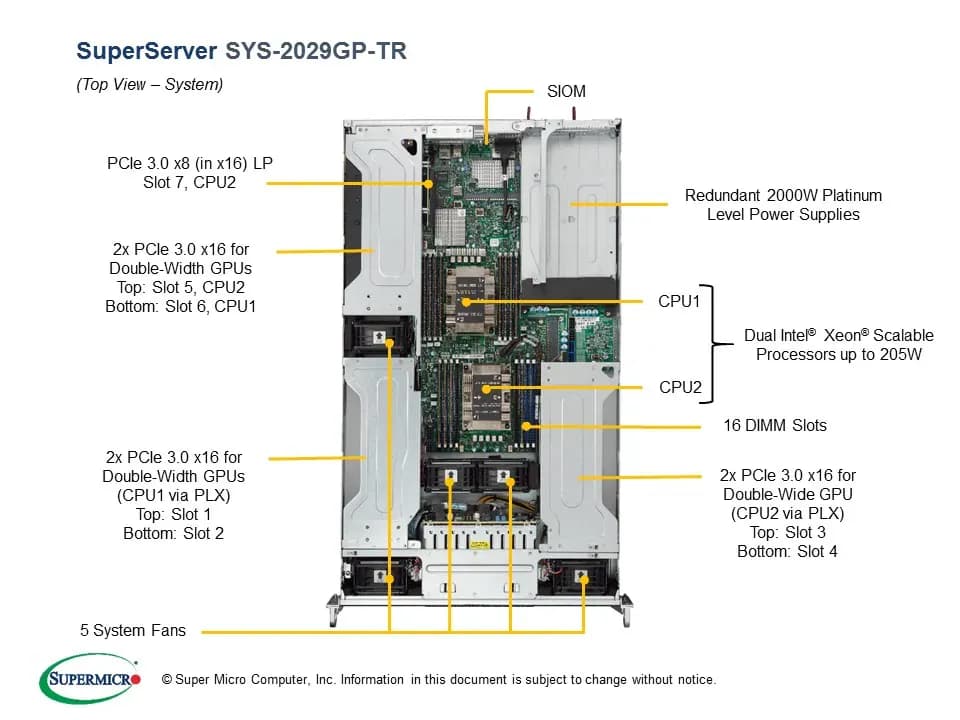

6 PCI-E 3.0 x16 (FHFL) slots – supporting up to 6 GPUs

1 PCI-E 3.0 x8 (in x16, LP) slot

Drive Bays

Hot-swap

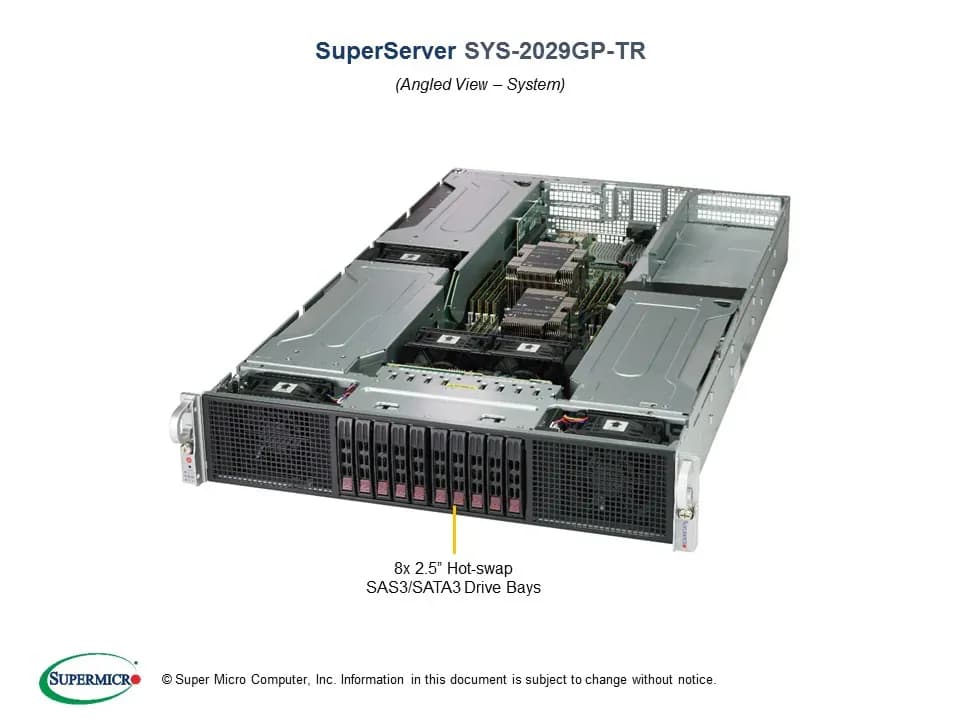

8 Hot-swap 2.5″ SAS/SATA drive bays

2 Hot-swap 2.5″ SATA/NVMe drive bays

System Cooling

Fans

5x 8cm Heavy duty fans with optimal fan speed control

Power Supply

2000W 1U Redundant Power Supplies with PMBus

Total Output Power

1000W: 100 – 120Vac

1800W: 200 – 220Vac

1980W: 220 – 230Vac

2000W: 230 – 240Vac

1980W: 200 – 240Vac (UL/cUL only)

2000W: 200 – 240Vdc (for CCC only)

Dimension

(W x H x L)

73.5 x 40 x 265 mm

Input

100-120Vac / 12.5-10.5A / 50-60Hz

200-220Vac / 10-9.5A / 50-60Hz

220-230Vac / 10-9.8A / 50-60Hz

230-240Vac / 10-9.8A / 50-60Hz

200-240Vac / 10-9.8A (UL/cUL only)

200-240Vdc / 10-9.1A (CCC only)

+12V

Max: 83.3A / Min: 0.1A (100-120Vac)

Max: 150A / Min: 0.1A (200-220Vac)

Max: 165A / Min: 0.1A (220-230Vac)

Max: 166.7A / Min: 0.1A (230-240Vac)

Max: 166.7A / Min: 0.1A (200-240Vac) (UL/cUL only)

12V SB

Max: 3.5A / Min: 0A

Output Type

25 Pairs Gold Finger Connector

Certification

Platinum Level

[ Test Report ]

Operating Environment

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature:

10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature:

-40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity:

8% to 90% (non-condensing)

Non-operating Relative Humidity:

5% to 95% (non-condensing)
