Key Features 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡ 2. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM†† 3. 4 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 slots, support 5 low-profile AOCs 4. 8x 2.5" SAS3 & 8x 2.5" SATA3 Hot-swap Drive Bays, optional DVD-ROM drive, optional support 2 NVMe/SSD/HDD 2.5" fix drives, 1 M.2 support 5. M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280, 22110 M.2 Key: M-Key 6. 2x 10GBase-T LAN ports with Intel X722 7. Integrated IPMI 2.0 with KVM and Dedicated LAN 8. 2 SuperDOM, 1 VGA, 2 COM, 2 USB 3.0, 4 USB 2.0, 1 Type A 9. 3 Heavy duty 8cm fans with PWM fan speed and cooling zone control 10. 1200W Redundant Power Supplies Titanium Level (96%)

Key Features

1. Dual Socket P (LGA 3647) support

2nd Gen Intel® Xeon® Scalable

processors (Cascade Lake/Skylake)‡

2. 16 DIMMs; up to 4TB 3DS ECC

DDR4-2933MHz† RDIMM/LRDIMM,

Supports Intel® Optane™ DCPMM††

3. 4 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 slots,

support 5 low-profile AOCs

4. 8x 2.5″ SAS3 & 8x 2.5″ SATA3 Hot-swap

Drive Bays, optional DVD-ROM drive,

optional support 2 NVMe/SSD/HDD 2.5″

fix drives, 1 M.2 support

5. M.2 Interface: PCI-E 3.0 x4

M.2 Form Factor: 2260, 2280, 22110

M.2 Key: M-Key

6. 2x 10GBase-T LAN ports with Intel X722

7. Integrated IPMI 2.0 with KVM and

Dedicated LAN

8. 2 SuperDOM, 1 VGA, 2 COM,

2 USB 3.0, 4 USB 2.0, 1 Type A

9. 3 Heavy duty 8cm fans with PWM

fan speed and cooling zone control

10. 1200W Redundant Power Supplies

Titanium Level (96%)

Product SKUs

SYS-2029P-C1RT

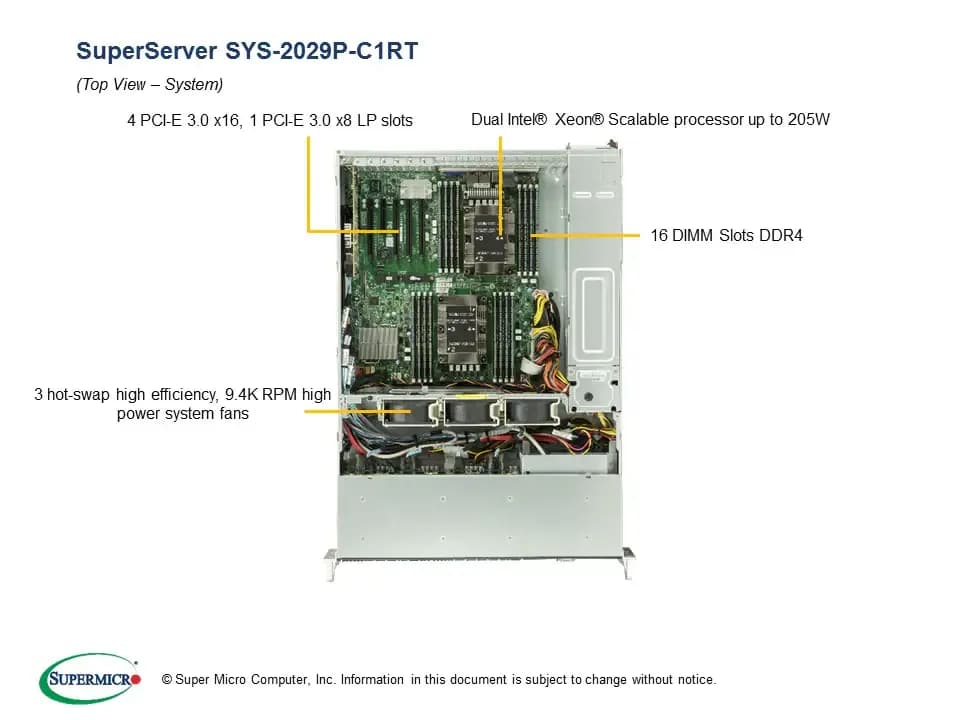

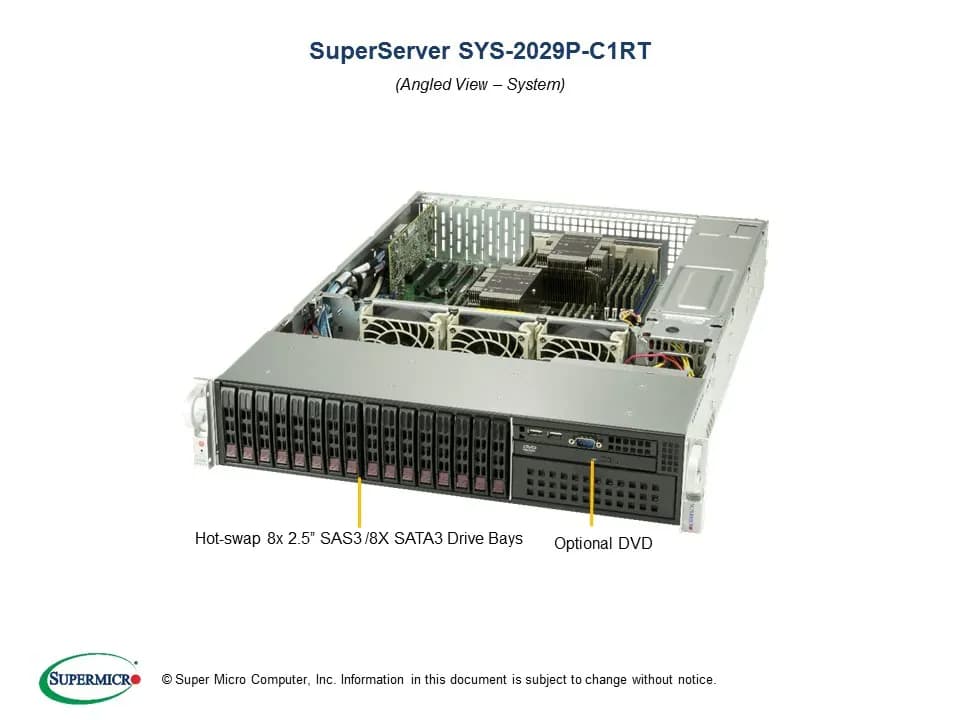

SuperServer 2029P-C1RT (Black)

Motherboard

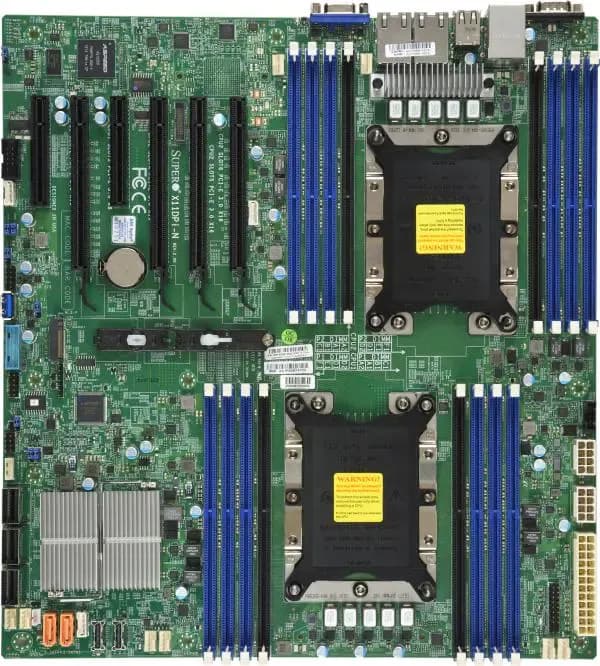

Super X11DPi-NT

Processor

CPU

Dual Socket P (LGA 3647)

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,

Dual UPI up to 10.4GT/s

Support CPU TDP 70-205W

Cores

Up to 28 Cores

Note

‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

* CPU SKUs not supported: Gold 6256 and Gold 6250(L) (L = increased memory capacity per socket), Gold 6233W and Gold 5216W

System Memory

Memory Capacity

16 DIMM slots

Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM

Supports Intel® Optane™ DCPMM††

Memory Type

2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note

† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices

Chipset

Intel® C622 chipset

SATA

SATA3 (6Gbps); RAID 0, 1, 5, 10

SAS

Broadcom 3108 SAS3 (12Gbps) controller;

HW RAID 0, 1, 5, 6, 10, 50, 60

Network Controllers

Intel® X722 10GBase-T Ethernet Controller

Virtual Machine Device Queues reduce I/O overhead

Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2500 BMC

Graphics

ASPEED AST2500 BMC

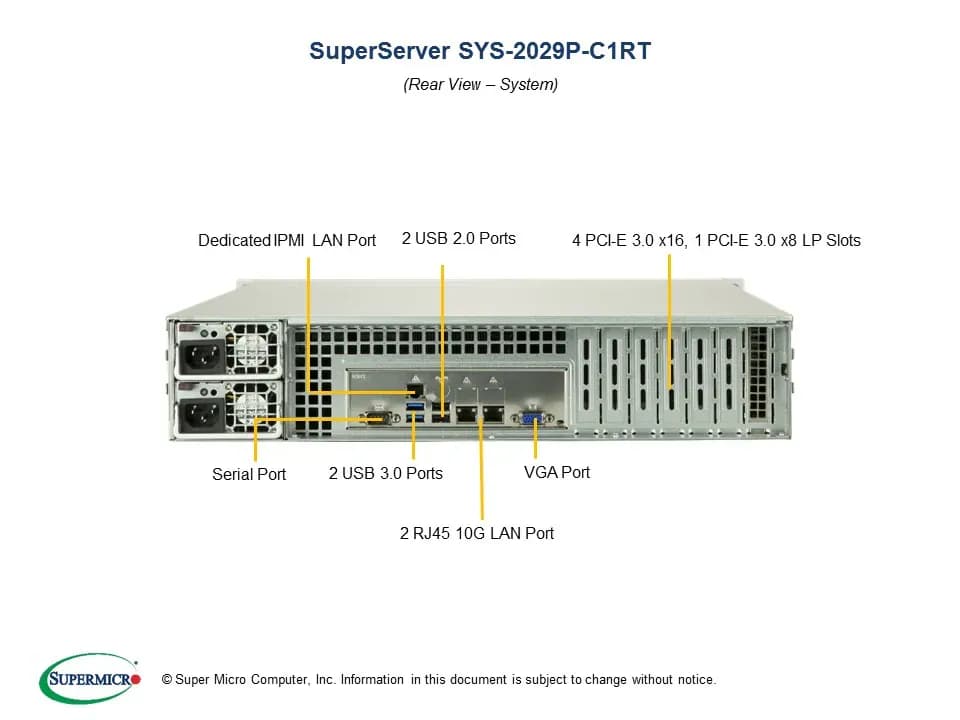

Input / Output

SATA

8 SATA3 (6Gbps) ports

SAS

8 SAS3 (12Gbps) ports

LAN

2 RJ45 10GBase-T ports

1 RJ45 Dedicated IPMI LAN port

USB

2 USB 3.0 ports (2 rear)

4 USB 2.0 ports (2 rear, 2 front)

1 USB Type A

Video

1 VGA Connector

Serial Port / Header

2 Fast UART 16550 serial

2 COM Ports (1 rear, 1 front)

System BIOS

BIOS Type

AMI UEFI

Management

Software

Intel® Node Manager

IPMI 2.0

KVM with dedicated LAN

NMI

SSM, SPM, SUM

SuperDoctor® 5

Watchdog

Power Configurations

ACPI Power Management

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory.

4+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

2U Rackmount

Model

CSE-213AC-R1K23LPB

Dimensions and Weight

Height

3.5″ (89mm)

Width

17.2″ (437mm)

Depth

24.8″ (630mm)

Package

11″ (H) x 29″ (W) x 38.7″ (D)

Weight

Net Weight: 38 lbs (17.4 kg)

Gross Weight: 63 lbs (28.8 kg)

Available Color

Black

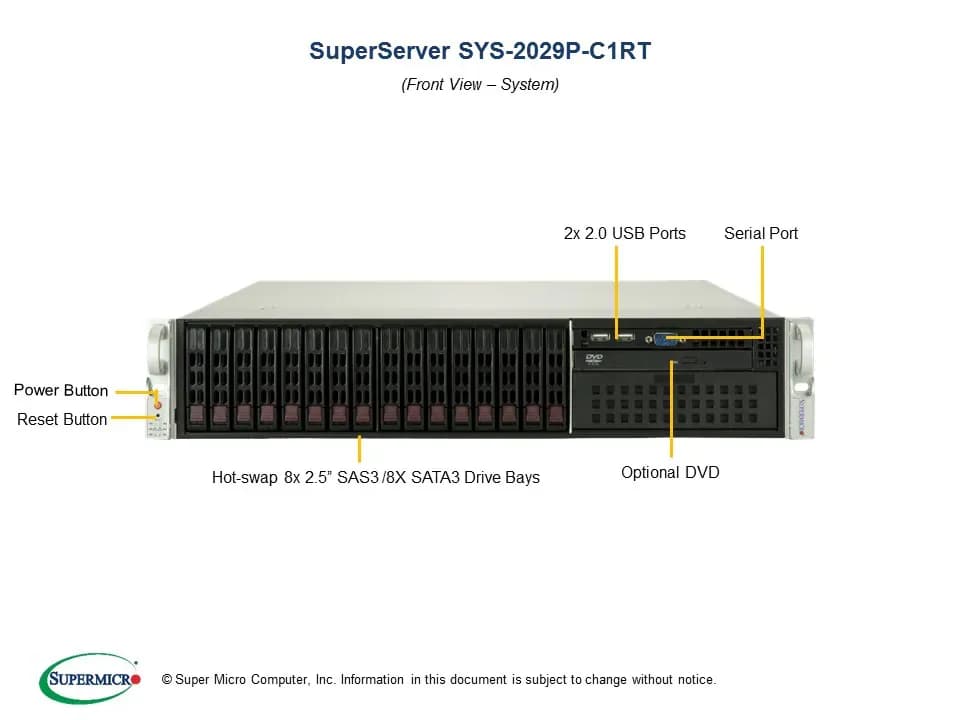

Front Panel

Buttons

Power On/Off button

System Reset button

LEDs

Power LED

Hard drive activity LED

Network activity LEDs

System Overheat LED / Fan fail LED /

UID LED

Expansion Slots

PCI-Express

4 PCI-E 3.0 x16 slots

1 PCI-E 3.0 x8 slot

Support total of 5 Low-profile AOC

Drive Bays

Hot-swap

8x 2.5″ SAS3 and 8x 2.5″ SATA3 Hot-swap drive bays

Peripheral

Optional DVD-ROM drive supports 1x slim or 1x 5.25″ DVD drive

Optional

Optional 2 NVMe/SSD/HDD 2.5″ fix drives

1 M.2 support

System Cooling

Fans

3 Heavy duty 8cm fans with PWM fan speed and cooling zone control

Power Supply (76mm Width)

1200W Redundant Power Supplies with PMBus

Total Output Power

1000W/1200W

Dimension

(W x H x L)

76 x 40 x 336 mm

Input

100-127Vac / 15-12A / 50-60Hz

200-240Vac / 8.5-7A / 50-60Hz

200-240Vdc / 8.5-7A (for CCC only)

+12V

Max: 83A / Min: 0A (100-127Vac)

Max: 100A / Min: 0A (200-240Vac)

Max: 100A / Min: 0A (200-240Vdc)

+5Vsb

Max: 4A / Min: 0A

Output Type

19 Pairs Gold Finger Connector

Certification

Titanium Level

[ Test Report ]

Operating Environment

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature:

10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature:

-40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity:

8% to 90% (non-condensing)

Non-operating Relative Humidity:

5% to 95% (non-condensing)
