Key Features Two systems (nodes) in a 1U form factor. Each node supports the following: 1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s 2. Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots 3. 1x PCI-E 3.0 x16 (in x16) slot 4. 2x 3.5" Hot-swap SAS/SATA drive bays 5. Intel® i350 Dual port GbE LAN 6. I/O ports: 2x SuperDOM, 1x VGA, 1x COM, 2x USB 2.0 (rear) 7. 1000W High-efficiency Power Supply Titanium Level Certified

Key Features

Two systems (nodes) in a 1U form factor. Each node supports the following:

1. Dual socket R3 (LGA 2011) supports

Intel® Xeon® processor E5-2600

v4†/ v3 family; QPI up to 9.6GT/s

2. Up to 1TB† ECC 3DS LRDIMM , up to

DDR4- 2400†MHz ; 8x DIMM slots

3. 1x PCI-E 3.0 x16 (in x16) slot

4. 2x 3.5″ Hot-swap SAS/SATA drive bays

5. Intel® i350 Dual port GbE LAN

6. I/O ports: 2x SuperDOM, 1x VGA,

1x COM, 2x USB 2.0 (rear)

7. 1000W High-efficiency Power Supply

Titanium Level Certified

Product SKUs

SYS-6018TR-T

SuperServer 6018TR-T (Black)

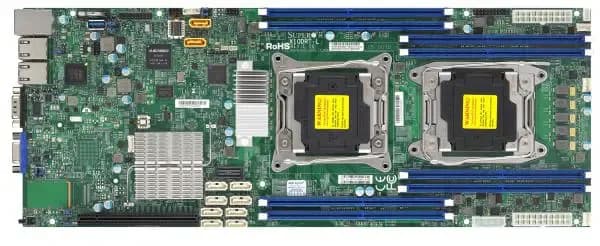

Motherboard

Super X10DRT-L

Processor/Cache

CPU

Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *

Dual Socket R3 (LGA 2011)

Cores / Cache

Up to 22 Cores† / Up to 55MB† Cache

System Bus

QPI up to 9.6 GT/s

Note

† BIOS version 2.0 or above is required

Note

* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory

Memory Capacity

8x 288-pin DDR4 DIMM slots

Up to 1TB† ECC 3DS LRDIMM, 256GB ECC RDIMM

Memory Type

2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB

LRDIMM: 64GB, 32GB

3DS LRDIMM: 128GB

Memory Voltage

1.2 V

Error Detection

Corrects single-bit errors

On-Board Devices

Chipset

Intel® C612 chipset

SATA

SATA3 (6Gbps); RAID 0, 1, 5, 10

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2400 BMC

Network Controllers

Intel® i350 Dual Port Gigabit Ethernet

Supports 10GBASE-T, 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Video

ASPEED AST2400 BMC

Input / Output

Serial ATA

10x SATA3 (6Gbps) ports

LAN

2x RJ45 Gigabit Ethernet LAN ports

1x RJ45 Dedicated IPMI LAN port

USB

2x USB 2.0 ports (rear)

Video

1x VGA port

Serial Port / Header

1x COM port (1 header)

DOM

2x SuperDOM (Disk on Module) ports

Management

Software

Intel® Node Manager

IPMI 2.0

NMI

SuperDoctor® 5

Watch Dog

Power Configurations

ACPI Power Management

Power-on mode for AC power recovery

Chassis

Form Factor

1U Twin

Model

CSE-808TS-1K03B

Dimensions and Weight

Width

17.2″ (437mm)

Height

1.75″ (44.45mm)

Depth

27.75″ (705mm)

Gross Weight

43 lbs (19.5kg)

Available Colors

Black

Front Panel

Buttons

Power On/Off button

System Reset button

UID button

LEDs

Power status LED

HDD activity LED

2x Network activity LEDs

Universal Information (UID) LED

Expansion Slots (per node)

PCI-Express

1x PCI-E 3.0 x16 (in x16) slot

Drive Bays (per node)

Hot-swap

2x 3.5″ Hot-swap drive bays

Backplane

SAS/SATA HDD Backplane

System Cooling (per node)

Fans

3x 40x56mm counter-rotation PWM fans

Power Supply

1000W Titanium Level (96%) AC-DC power supply with PMBus and I2C

AC Input

100-240 V, 50-60 Hz, 11-4.5 Amp

DC Output

4 Amp @ +5V standby

75 Amp @ +12V

Certification

Titanium Level Certified

[ Test Report ]

System BIOS

BIOS Type

128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

Plug and Play (PnP)

PCI 2.3

ACPI 3.0 / 4.0

USB Keyboard support

SMBIOS 2.7.1

UEFI 2.3.1

Operating Environment / Compliance

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature:

10°C to 35°C (50°F to 95°F)

Non-operating Temperature:

-40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity:

8% to 90% (non-condensing)

Non-operating Relative Humidity:

5% to 95% (non-condensing)
