Key Features 8 Hot-plug System Nodes in 4U Each node supports: 1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s 2. Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots 3. Expansion slots: 1 PCI-E 3.0 x16 (LP) 1 PCI-E 3.0 x8 (Micro Low Profile) 4. I/O ports: 2 GbE ports, 1 Built-in video, 2 USB 3.0 ports 5. Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port 6. 6x 2.5" Hot-swap SATA or 4x 2.5" Hot-swap SATA + 2x SATA/NVMe hybrid 7. 2x Internal NVMe ports (PCI-E 3.0 x4) 8. 3x heavy duty internal fans 9. 2000W High efficiency (96%) Redundant PSU; Titanium Level

Key Features

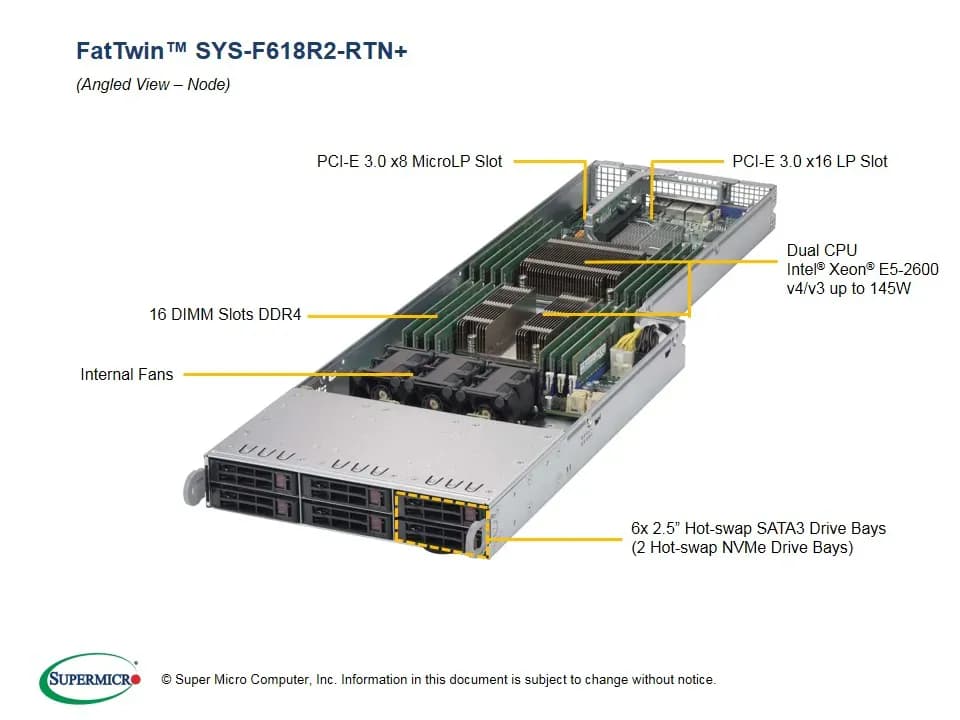

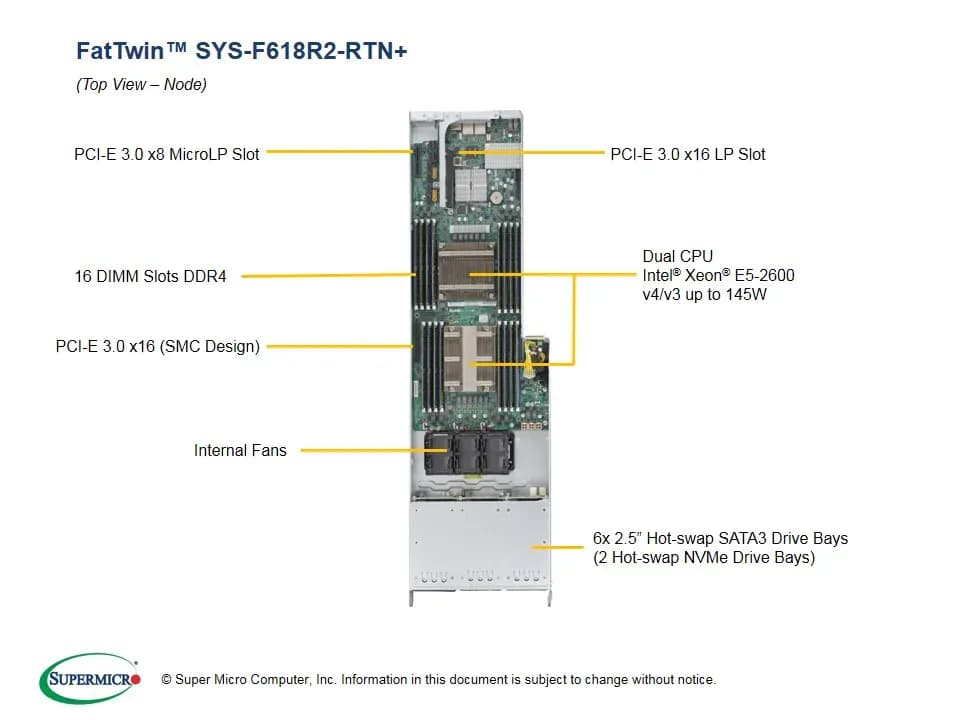

8 Hot-plug System Nodes in 4U

Each node supports:

1. Dual socket R3 (LGA 2011) supports

Intel® Xeon® processor E5-2600

v4†/ v3 family; QPI up to 9.6GT/s

2. Up to 2TB† ECC 3DS LRDIMM , up to

DDR4- 2400†MHz ; 16x DIMM slots

3. Expansion slots: 1 PCI-E 3.0 x16 (LP)

1 PCI-E 3.0 x8 (Micro Low Profile)

4. I/O ports: 2 GbE ports, 1 Built-in

video, 2 USB 3.0 ports

5. Built-in Server management tool

(IPMI 2.0, KVM/media over LAN) with

dedicated LAN port

6. 6x 2.5″ Hot-swap SATA or 4x 2.5″

Hot-swap SATA + 2x SATA/NVMe

hybrid

7. 2x Internal NVMe ports (PCI-E 3.0 x4)

8. 3x heavy duty internal fans

9. 2000W High efficiency (96%)

Redundant PSU; Titanium Level

Product SKUs

SYS-F618R2-RTN+

SuperServer F618R2-RTN+ (Black)

Motherboard

Super X10DRFR-N

Processor/Cache

CPU

Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *

Dual Socket R3 (LGA 2011)

Cores / Cache

Up to 22 Cores† / Up to 55MB† Cache

System Bus

QPI up to 9.6 GT/s

Note

† BIOS version 2.0 or above is required

Note

* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory

Memory Capacity

16x 288-pin DDR4 DIMM slots

Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM

Memory Type

2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB

LRDIMM: 64GB, 32GB

3DS LRDIMM: 128GB

Memory Voltage

1.2 V

Error Detection

Corrects single-bit errors

On-Board Devices

Chipset

Intel® C612 chipset

SATA

SATA3 (6Gbps) with RAID 0, 1, 5, 10

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2400 BMC

Network Controllers

Intel® i350-AM2 Dual Port Gigabit Ethernet

Virtual Machine Device Queues reduce I/O overhead

Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics

ASPEED AST2400 BMC

Input / Output (per node)

Serial ATA

10 SATA3 (6Gbps) ports

NVMe

2 Internal NVMe ports (PCI-E 3.0 x4)

Note: NVMe support requires 2 CPUs installed

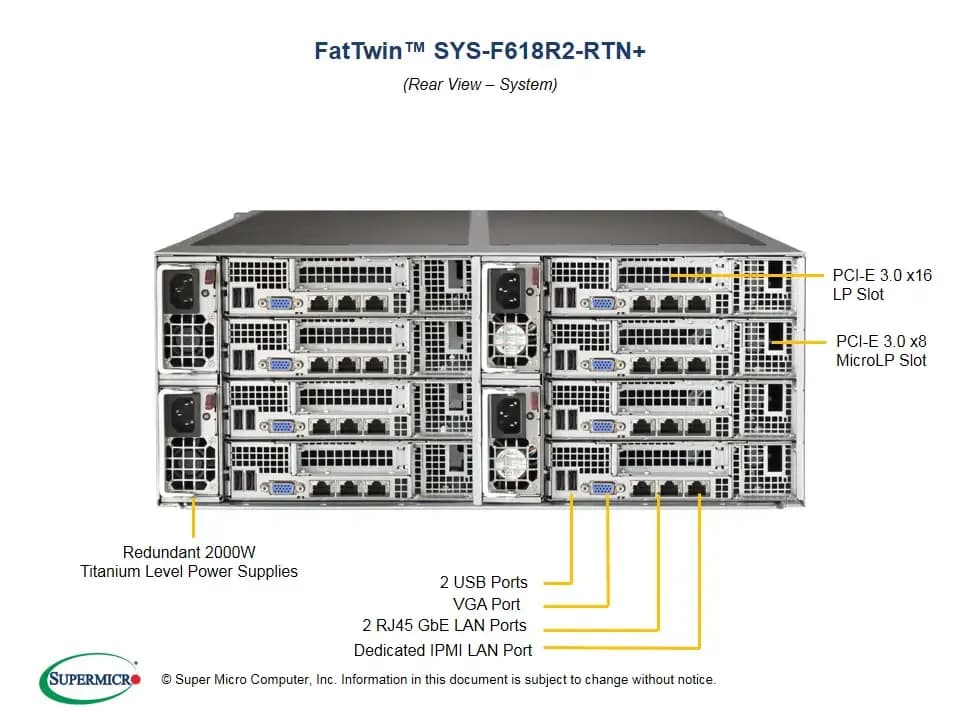

LAN

2 RJ45 Gigabit Ethernet LAN ports

1 RJ45 Dedicated IPMI LAN port

USB

2 USB 3.0 ports

VGA

1 VGA port

Management

Software

SuperDoctor® 5

Watch Dog

NMI

IPMI 2.0

SUM and SSM

Power Configurations

ACPI / APM Power Management

Power-on mode for AC power recovery

Chassis

Form Factor

4U Rackmount

Model

CSE-F418BC-R2K04BP

Dimensions and Weight

Width

17.63″ (448mm)

Height

6.96″ (177mm)

Depth

29″ (737mm)

Package

28.3″ (W) x 15.0″ (H) x 42.4″ (D)

Weight

Net Weight: 150 lbs (68.04 kg)

Gross Weight: 200 lbs (90.71 kg)

Available Colors

Black

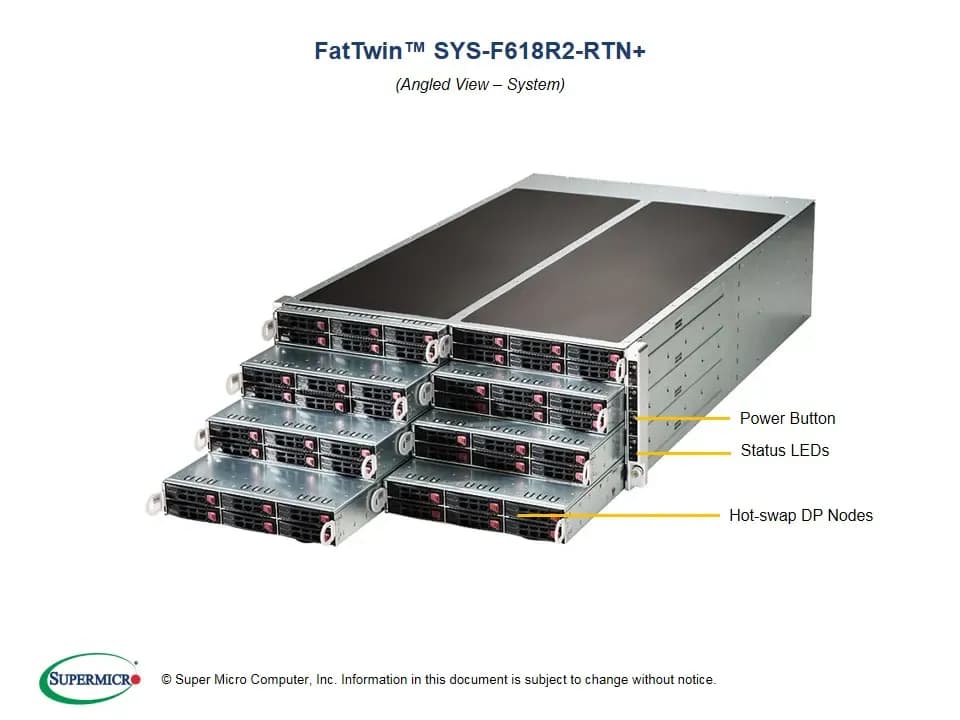

Front Panel

Buttons

Power On/Off button

UID button

LEDs

Power status LED

Hard drive activity LED

2 Network activity LEDs

Information LED (UID, Fan failure, Overheat)

Expansion Slots (per node)

PCI-Express

1 PCI-E 3.0 x16 Low-profile

1 PCI-E 3.0 x8 (Micro LP)

MicroLP Adapter Matrix (Networking options)

Drive Bays (per node)

Hot-swap

6x 2.5″ Hot-swap SATA or 4x 2.5″ Hot-swap SATA + 2x SATA/NVMe hybrid

Backplane

1x SAS/SATA backplane

System Cooling (per node)

Fans

3x 4cm 14k RPM middle fans

Power Supply (76mm Width)

2000W Redundant Power Supplies with PMBus

Total Output Power

1000W: 100 – 127Vac

1800W: 200 – 220Vac

1980W: 220 – 230Vac

2000W: 230 – 240Vac

2000W: 200 – 240Vdc (UL/cUL only)

Dimension

(W x H x L)

76 x 40 x 336 mm

Input

1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz

1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz

1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz

2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz

2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)

+12V

Max: 83.3A / Min: 0A (100-127 Vac)

Max: 150A / Min: 0A (200-220 Vac)

Max: 165A / Min: 0A (220-230 Vac)

Max: 166.7A / Min: 0A (230-240 Vac)

Max: 166.7A / Min: 0A (200-240 Vac)

(UL/cUL only)

+5Vsb

Max: 1A / Min: 0A

Output Type

27 Pairs Gold Finger Connector

Certification

Titanium Level

[ Test Report ]

System BIOS

BIOS Type

128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

Plug and Play (PnP)

APM 1.2

PCI 2.2

ACPI 1.0 / 2.0

USB Keyboard support

SMBIOS 2.3

UEFI

Operating Environment / Compliance

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature:

10°C to 35°C (50°F to 95°F)

Non-operating Temperature:

-40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity:

8% to 90% (non-condensing)

Non-operating Relative Humidity:

5% to 95% (non-condensing)
