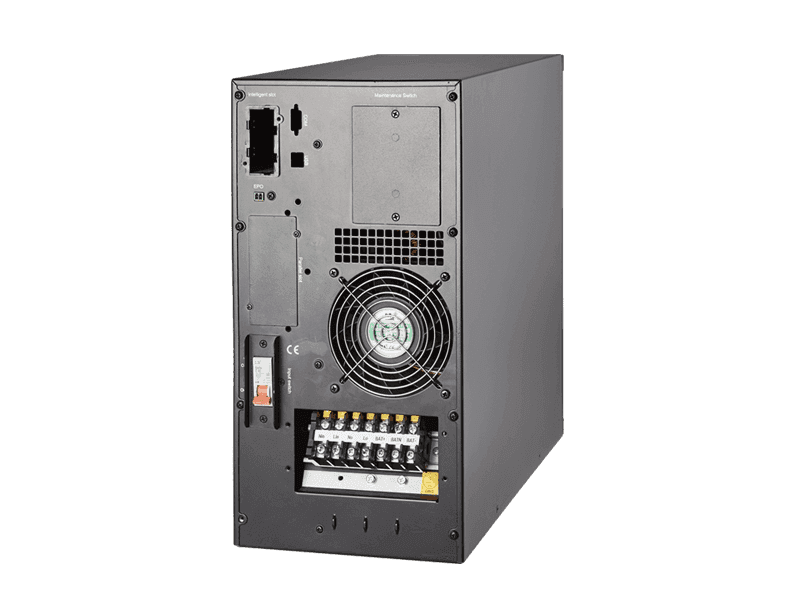

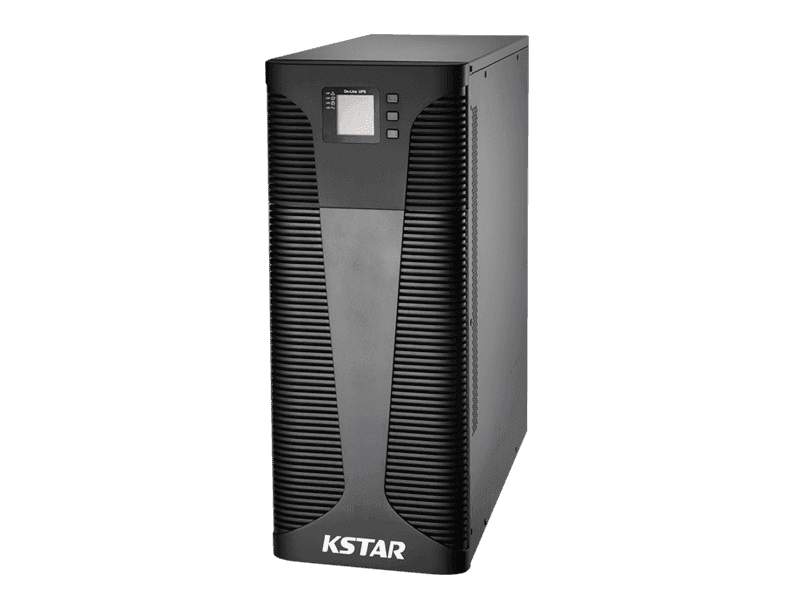

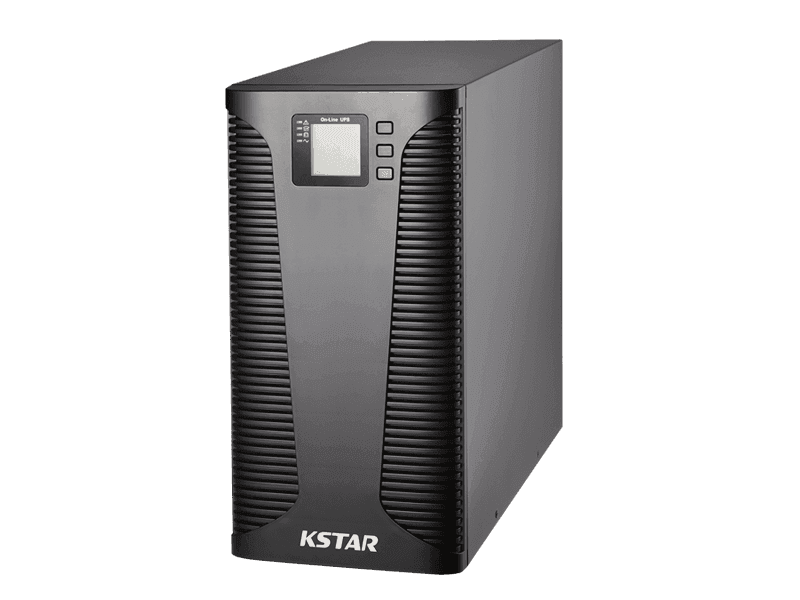

UB 6-10K online tower UPS is suited for all business critical usage such as networks, data centers, banking and building automation. The UPS operates on the online double conversion principle offering protection from numerous power problems. It allows the flexible and simple setup of a parallel system. The ECO mode helps you save the electricity fee and maintenance bypass is convenient for maintenance.

General Features

● True double-conversion

● DSP technology guarantees high reliability

● N+X parallel redundancy

● Selectable quantity of battery for each group:16/18/20 pieces

● Adjustable charging current via LCD

● 3-stage charging design optimizes battery performance

● ECO mode operation for energy saving

● Self-diagnosis at startup

● Emergency power off function(EPO)

● Maintenance bypass is convenient for maintenance

● Generator compatible

● Communications:RS-232,USB,SNMP card(Optional), Relay card (Optional)

● Cold start

Technical Specification

MODEL

UB60

UB60L

UB100

UB100L

Capacity (VA/Watts)

6K / 5.4K

10K / 9K

INPUT

Nominal Voltage

220/230/240Vac(L+N+PE)

Operating Voltage Range

120Vac-276Vac

Operating Frequency Range

50Hz：45~55Hz，60Hz：54~66Hz

Power Factor

≥0.99

Bypass Voltage Range

Max.voltage: 220V：+25%(Optional +10%,+15%,+20% )

230V：+20%(Optional +10%,+15%)

240V：+15%(Optional +10% )

Min. voltage: -45% (Optional -20%,-30%)

ECO Range

Same as bypass

Harmonic Distortion (THDi)

≤5%(100% non-linear load)

OUTPUT

Output Voltage

220/230/240Vac

Power Factor

0.9

Voltage Regulation

±1%

Frequency

Line Mode

±1%/±2%/±4%/±5%/±10% of the rated frequency(Optional)

Bat. Mode

(50/60±0.1)Hz

Crest Factor

3:1

Harmonic Distortion (THDv)

≤2% with linear load

≤5% with non-linear load

Waveform

Pure Sinewave

Transfer Time

Utility to Battery : 0ms; Utility to Bypass: 0ms

EFFICIENCY

Efficiency

Up to 94%

BATTERY

Battery Voltage

Selectable Voltage: ±96/108/120Vdc

Typical Recharge Time

6-8 hours (To 90% capacity)

Charging Current

Maximum current 10A

PROTECTION

Overload

Line Mode

Load≤125%: last 5min;≤150%: last 1min;＞150% 200ms turn to bypass mode

Bypass Mode

40A(Input breaker)

60A(Input breaker)

Short Circuit

Hold Whole System

Overheat

Line Mode: Switch to Bypass; Backup Mode: Shut down UPS immediately

Battery Low

Alarm and Switch off

INDICATORS

Audible & Visual Alarms

Line Failure, Battery Low, Overload, System Fault

Status LED & LCD Display

Line Mode, Backup Mode, Eco Mode, Bypass Mode, Battery Low, Battery Bad, Overload & UPS Fault

Parameters On The LCD Panel

Input/Output Voltage, Input/Output Frequency, Load Level, Battery Level,

Inner Temperature & Remaining    Battery Backup Time

MANAGEMENT

Communication Interface

RS-232,USB,Parallel card(Optional), SNMP card(Optional), Relay card (Optional)

ENVIRONMENT

Operating Temperature

0℃～40℃

Storage Temperature

-25℃～55℃

Humidity Range

0～95% (Non-condensing)

Altitude

< 1500m

Noise Level

<55dB

PHYSICAL

Dimension W×D×H (mm)

250×502×616

220×481×438

250×502×616

220×481×438

Net Weight (kg)

62

18

64

20

STANDARDS

Noise Suppression

Complies with EN62040-2

Safety

IEC/EN62040-1,IEC/EN60950-1

EMC

IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,

IEC61000-4-5,IEC61000-4-6,IEC61000-4-8

BATTERY PACK

Model

EXB±120V

Battery type& Max.quantity

7Ah×40/9Ah×40

Dimensions W×D×H (mm)

250×502×616

Net Weight (kg)

125.8/138
