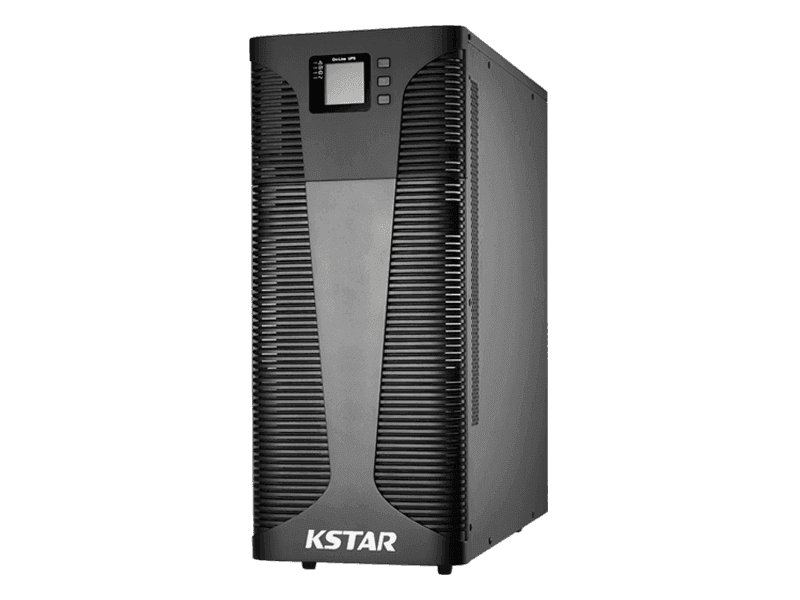

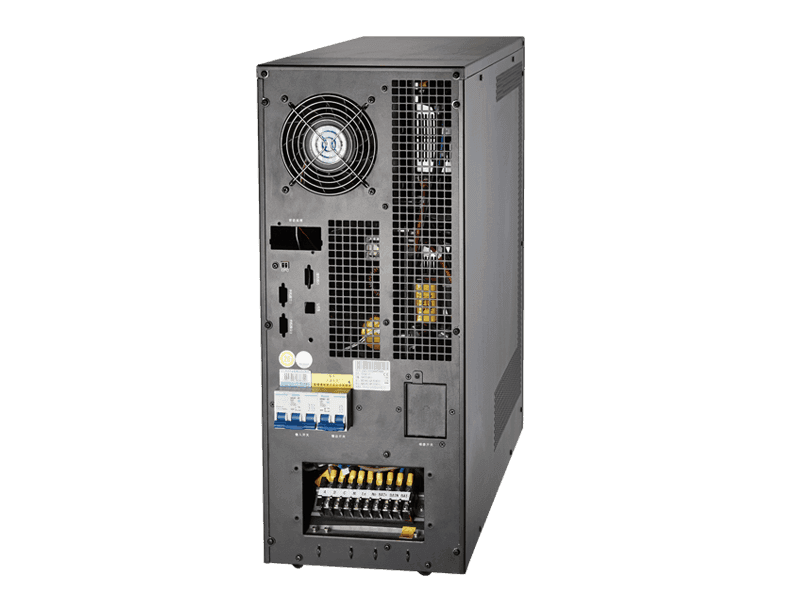

UC100-200 series UPS is a three-phase in and one-phase out high frequency tower-mounted UPS with an output power factor up to 0.9 and a strong load capacity. It adopts leading DSP online double conversion technology to provide high-level power protection. It supports flexible battery quantity configuration, flexible redundancy design and compatible to the generator to fit diverse environment. It has been widely used in small and medium IDC machine room, control center, industry process control fields and so on.

General Features

● True double-conversion

● DSP technology guarantees high reliability

● N+X parallel redundancy

● Compatible with three-phases and single-phase input

● Selectable quantity of battery for each group:16/18/20 pieces

● Adjustable charging current via LCD

● 3-stage charging design optimizes battery performance

● ECO mode operation for energy saving

● Self-diagnosis at startup

● Emergency power off function(EPO)

● Maintenance bypass is convenient for maintenance

● Generator compatible

● Communications:RS-232,USB,Parallel card(Optional),SNMP card(Optional), Relay card (Optional)

● Cold start

Technical Specification

MODEL

UC100

UC100L

UC150L

UC200L

Capacity (VA/Watts)

10K / 9K

15K / 13.5K

20K / 18K

INPUT

Nominal Voltage

380/400/415Vac(3Ph+N+PE) or 220/230/240Vac(L+N+PE)

Operating

Voltage Range

208~478Vac or 120VAC-276Vac

Operating

Frequency Range

50Hz：45~55Hz，60Hz：54~66Hz

Power Factor

≥0.99

Bypass

Voltage Range

Max.voltage: 220V：+25%(Optional +10%,+15%,+20% )

230V：+20%(Optional +10%,+15%)

240V：+15%(Optional +10% )

Min. voltage: -45% (Optional -20%,-30%)

ECO Range

Same as bypass

Harmonic

Distortion (THDi)

≤5%(100% non-linear load)

OUTPUT

Rated Voltage

220/230/240Vac

Power Factor

0.9

Voltage Regulation

±1%

Frequency

Line Mode

±1%/±2%/±4%/±5%/±10% of the rated

frequency(Optional)

Bat. Mode

(50/60±0.1)Hz

Crest Factor

3:1

Harmonic

Distortion (THD)

≤2% with linear load

≤5% with non-linear load

Waveform

Pure Sinewave

Transfer Time

Utility to Battery : 0ms; Utility to Bypass: 0ms

EFFICIENCY

Efficiency

Up to 94%

Up to 94.5%

BATTERY

Battery Voltage

Selectable Voltage: ±96/108/120Vdc

Typical

Recharge Time

6-8 hours (To 90% capacity)

Charging Current

Maximum current 10A

PROTECTION

Overload

Line Mode

Load≤125%: last 5min;≤150%: last 1min;＞150% 200ms

turn to bypass mode

Bypass Mode

63A(Input breaker)

100A(Input breaker)

125A(Input breaker)

Short Circuit

Hold Whole System

Overheat

Line Mode: Switch to Bypass; Backup Mode: Shut down UPS immediately

Battery Low

Alarm and Switch off

INDICATORS

Audible &

Visual Alarms

Line Failure, Battery Low, Overload, System Fault

Status LED &

LCD Display

Line Mode, Backup Mode, Eco Mode, Bypass Mode, Battery Low,

Battery Bad, Overload & UPS Fault

Parameters On

The LCD Panel

Input/Output Voltage, Input/Output Frequency, Load Level, Battery Level,

Inner Temperature & Remaining Battery Backup Time

MANAGEMENT

Communication

Interface

RS-232,USB,Parallel card(Optional), SNMP card(Optional), Relay card (Optional)

ENVIRONMENT

Operating Temperature

0℃～40℃

Storage Temperature

-25℃～55℃

Humidity Range

0～95% (Non-condensing)

Altitude

< 1500m

Noise Level

<55dB

<58dB

PHYSICAL

Dimension

W×D×H (mm)

250×597×655

250×502×616

Net Weight (kg)

76

35

45

46

STANDARDS

Noise Suppression

Complies with EN62040-2

Safety

IEC/EN62040-1,IEC/EN60950-1

EMC

IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,

IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
