Key Applications Virtualization HPC Cloud Computing High End Enterprise Server Software Defined Storage Application Tier Service Provider 5G/Telco Key Features Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors Intel® C621A Chipset 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series Flexible networking options 12x 3.5" hot-swap hybrid NVMe/SATA/SAS drive bays 4 heavy duty fans with optimal fan speed control 1200W redundant Titanium level power supplies

Key Applications

Virtualization

HPC

Cloud Computing

High End Enterprise Server

Software Defined Storage

Application Tier Service Provider

5G/Telco

Key Features

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors

Intel® C621A Chipset

32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series

Flexible networking options

12x 3.5″ hot-swap hybrid NVMe/SATA/SAS drive bays

4 heavy duty fans with optimal fan speed control

1200W redundant Titanium level power supplies

Product SKUs

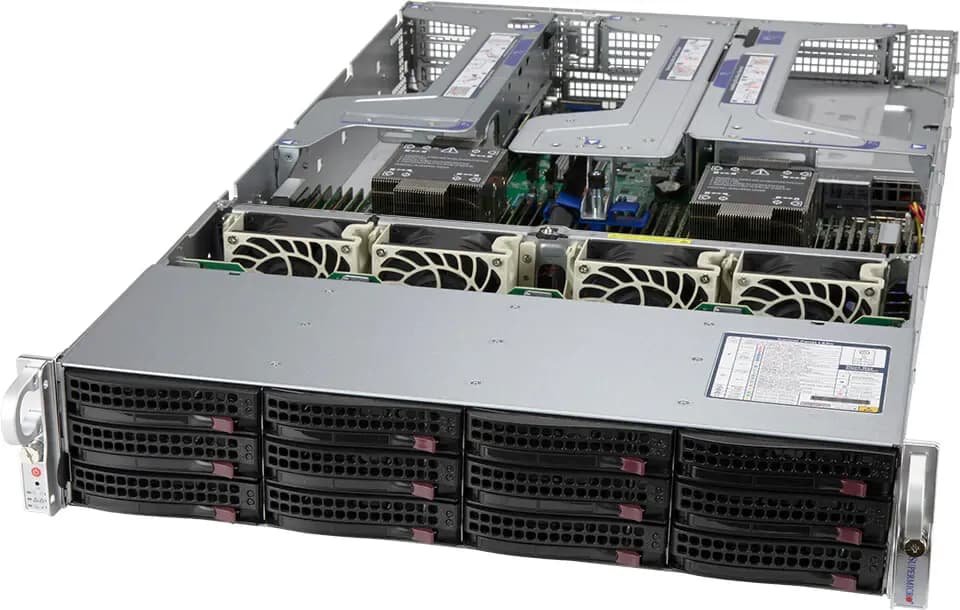

SuperServer SYS-620U-TNR

Motherboard

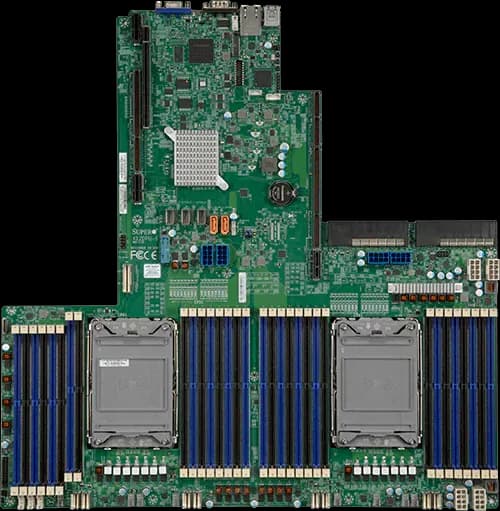

Super X12DPU-6

Processor

CPU

Dual Socket P+ (LGA-4189)

3rd Gen Intel® Xeon® Scalable processors

Core Count

Up to 40C/80T; Up to 60MB Cache per CPU

Note

Supports up to 270W TDP CPUs (Air Cooled)

GPU

Max GPU Count

Up to 4 double-width or 6 single-width GPU(s)

Supported GPU

NVIDIA PCIe: T4, RTX A6000, RTX A5000, RTX A4000, A40, A30, A16, A2, A100, A10

View GPU Options

Certification

System Memory

Memory

Slot Count: 32 DIMM slots

Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Supports Intel® Optane™ persistent memory 200 series

View Memory Options

Memory Voltage

1.2V

On-Board Devices

SATA

SATA (6Gbps) ; RAID 0/1/5/10 support

NVMe

NVMe; RAID 0/1/5/10 support

View NVMe Options

Chipset

Intel® C621A

Network Connectivity

2 RJ45 10GBASE-T with Intel® X710-AT2 (optional)

2 RJ45 10GBASE-T with Intel® X710-TM4 (optional)

2 SFP+ 10GbE with Intel® X710-TM4 (optional)

No NIC option supported

View Network Card (AOC) Options

View AOC Options

Input / Output

LAN

1 RJ45 1 GbE Dedicated BMC LAN port(s)

USB

2 USB 3.0 port(s) (rear)

Video

1 VGA port(s)

DOM

2 SuperDOM (Disk on Module) port(s)

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

Power-on mode for AC power recovery

ACPI Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

7 +1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

2U Rackmount

Model

CSE-829U3TS-R1K22P-T

Dimensions and Weight

Height

3.5″ (89 mm)

Width

17.2″ (437 mm)

Depth

29.05″ (737.9 mm)

Package

10.07″ (H) x 23.81″ (W) x 37.28″ (D)

Weight

Gross Weight: 57.5 lbs (26.2 kg)

Net Weight: 35.5 lbs (16.2 kg)

Available Color

Black Front & Silver Body

Front Panel

LED

HDD activity

Power status

Buttons

Power On/Off

Expansion Slots

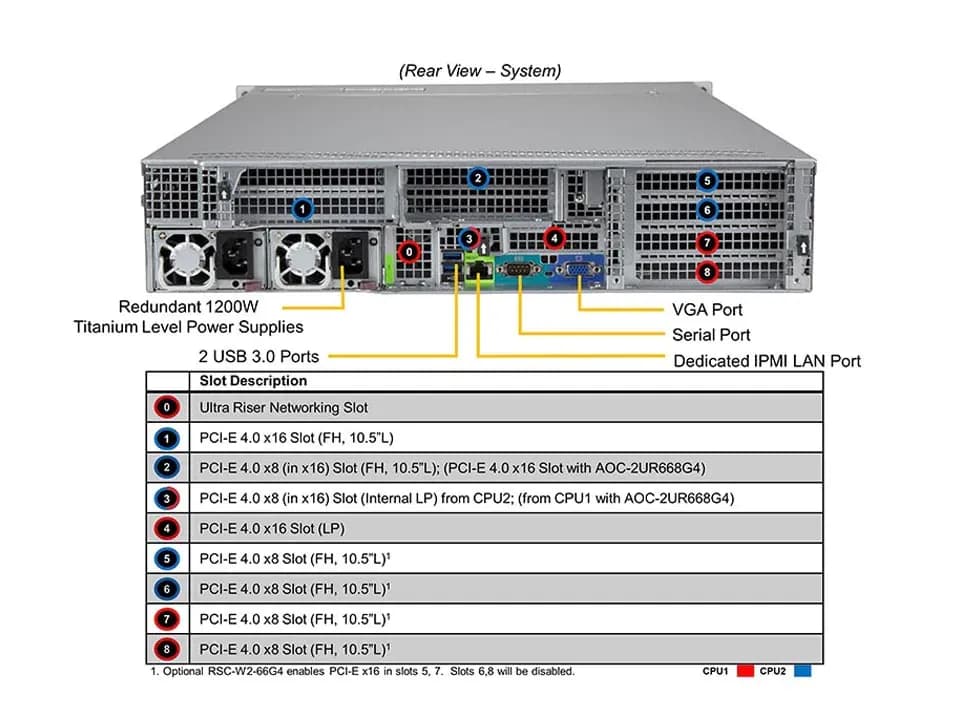

PCI-Express (PCIe) Configuration

Default

1 PCIe 4.0 x16 (in x16) FH/10.5″L slot(s)

5 PCIe 4.0 x8 (in x8) FH/10.5″L slot(s)

1 PCIe 4.0 x8 (in x8) LP slot(s)

1 PCIe 4.0 x16 (in x16) LP slot(s)

View AOC Options

Drive Bays / Storage

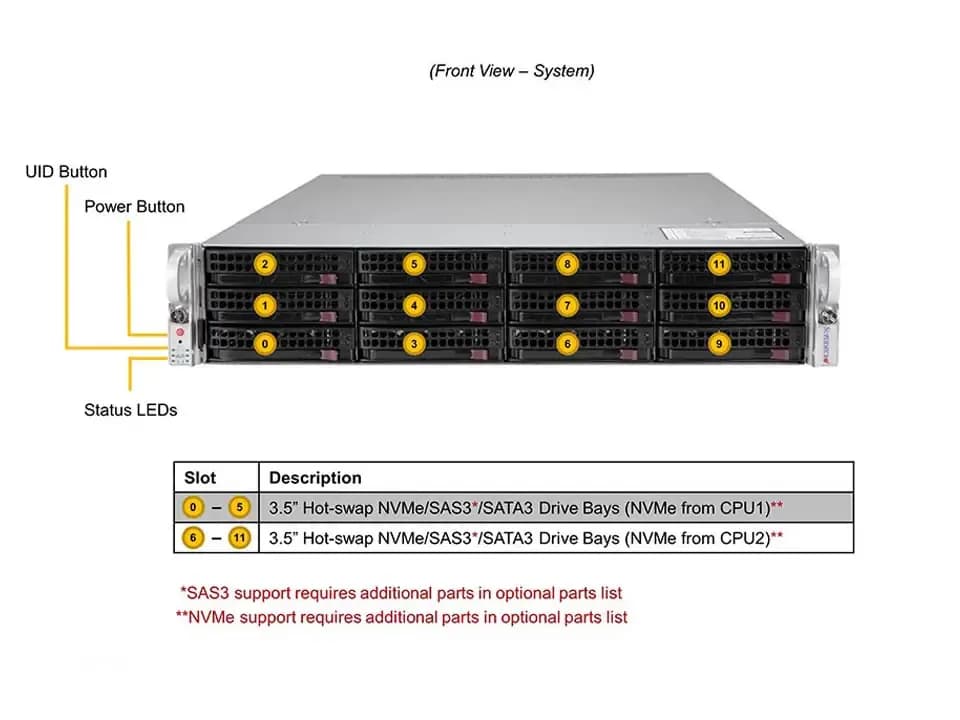

Drive Bays Configuration

Default: Total 12 bay(s)

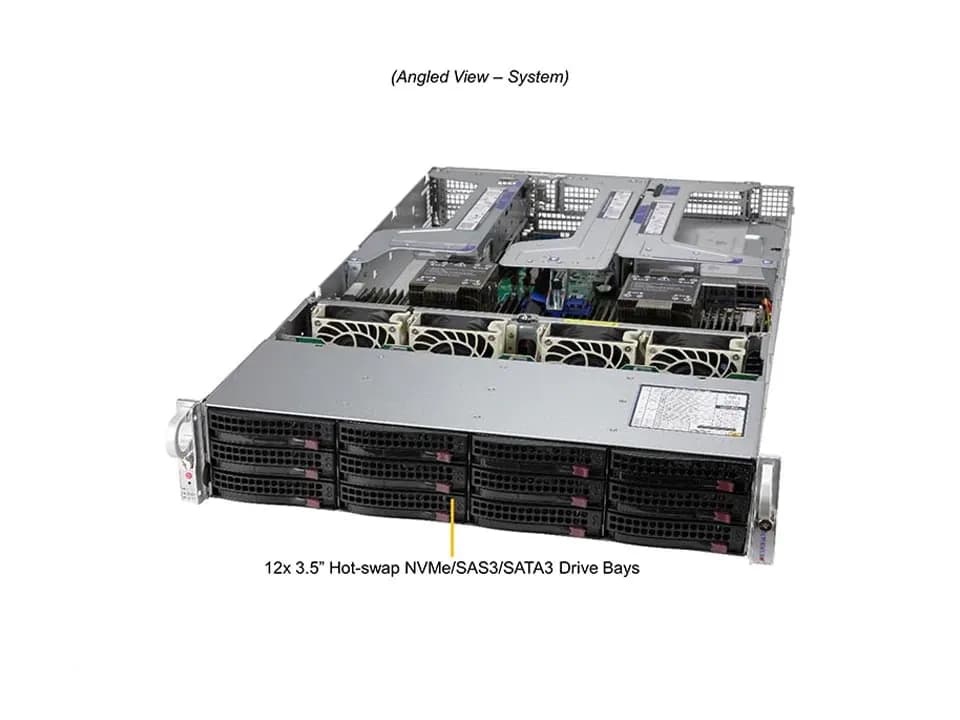

12 front hot-swap 3.5″ NVMe/SAS*/SATA drive bay(s)

(*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)

View Drive Options

M.2

View M.2 Options

System Cooling

Fans

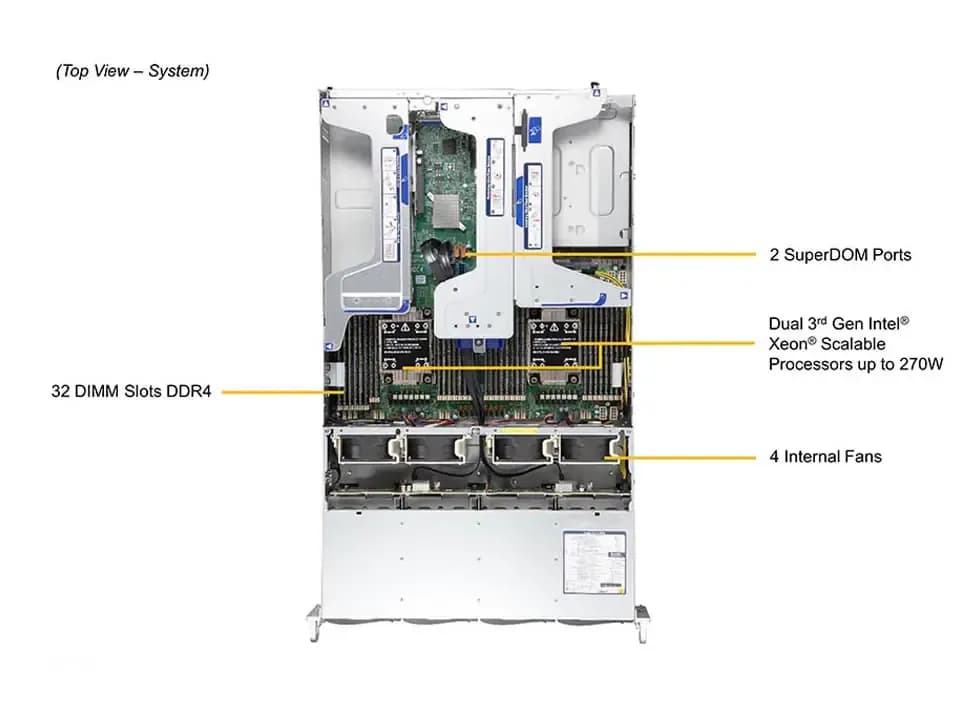

4x 8cm heavy duty fans with optimal fan speed control

Air Shroud

2 Air Shroud(s)

Power Supply

1x 1200W Redundant Titanium Level (96%) Hot-plug power supply

Dimension (WxHxL)

73.5 x 40 x 203 mm

AC Input

800W: 100-127Vac / 50-60Hz

1200W: 200-240Vac / 50-60Hz

1200W: 200-240Vdc / 50-60Hz (for CCC only)

+12V

Max: 66.7A / Min: 0A (100Vac-127Vac)

Max: 100A / Min: 0A (200Vdc-240Vdc)

Max: 100A / Min: 0A (200Vac-240Vac)

12V SB

Max: 2.1A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)
