Key Applications Small Business Web/Hosting Application Email/Firewall/Print Server Key Features Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 220W TDP. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM 1 PCIe 4.0 x16 (FHHL) slot Intel® Ethernet Controller i350 2x 1GbE RJ45 4x hot-swap 3.5'' Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 2x NVMe/SATA M.2 Single Platinum 500W Power Supply

Key Applications

Small Business

Web/Hosting Application

Email/Firewall/Print Server

Key Features

Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 220W TDP.

8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM

1 PCIe 4.0 x16 (FHHL) slot

Intel® Ethernet Controller i350 2x 1GbE RJ45

4x hot-swap 3.5” Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 2x NVMe/SATA M.2

Single Platinum 500W Power Supply

Product SKUs

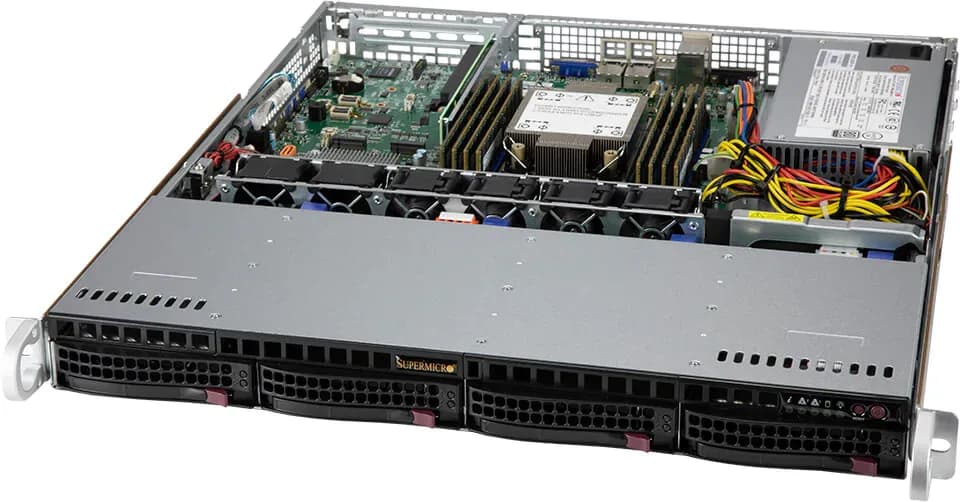

SuperServer SYS-510P-M

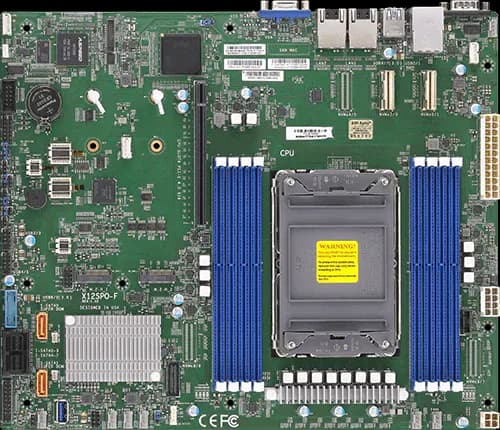

Motherboard

Super X12SPO-F

Processor

CPU

Single Socket P+ (LGA-4189)

3rd Gen Intel® Xeon® Scalable processors

Core Count

Up to 36C/72T; Up to 54MB Cache

Note

Supports up to 220W TDP CPUs (Air Cooled)

GPU

Max GPU Count

Up to 1 single-width GPU(s)

Supported GPU

NVIDIA PCIe: T400

View GPU Options

System Memory

Memory

Slot Count: 8 DIMM slots

Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Supports Intel® Optane™ persistent memory 200 series

View Memory Options

Memory Voltage

1.2V

On-Board Devices

SATA

SATA (6Gbps) ; RAID 0/1/5/10 support

NVMe

NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

View NVMe Options

Chipset

Intel® C621A

Network Connectivity

2 RJ45 1GbE with Intel® I350

View AOC Options

Input / Output

LAN

2 RJ45 1 GbE LAN port(s)

1 RJ45 1 GbE Dedicated IPMI LAN port(s) (IPMI shared on LAN port 1)

USB

4 USB 2.0 port(s) (header)

2 USB 3.2 Gen1 Type-A port(s) (rear)

2 USB 2.0 Type-A port(s) (rear)

2 USB 3.2 Gen1 port(s) (Header)

1 USB 3.2 Gen1 Type-A port(s) (Header)

Video

1 VGA port(s)

Serial

1 COM port(s) (Rear)

1 COM port(s) (Header)

DOM

2 SuperDOM (Disk on Module) port(s) with built-in power

TPM

1 TPM header

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

ACPI/APM Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

7+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

1U Rackmount

Model

CSE-813MF2TS-505CBP

Dimensions and Weight

Height

1.7″ (43 mm)

Width

17.2″ (437 mm)

Depth

19.98″ (507 mm)

Package

8.5″ (H) x 24″ (W) x 29.5″ (D)

Weight

Gross Weight: 30.4 lbs (13.8 kg)

Net Weight: 17.6 lbs (8 kg)

Available Color

Black

Front Panel

LED

Device Activity

LAN 1 Activity

LAN 2 Activity

Power status

System information

Buttons

Power On/Off

System Reset

Expansion Slots

PCI-Express (PCIe) Configuration

Default

1 PCIe 4.0 x16 FHHL slot(s)

View AOC Options

Drive Bays / Storage

Drive Bays Configuration

Default: Total 4 bay(s)

4 front hot-swap 3.5″ PCIe 4.0 NVMe*/SAS*/SATA drive bay(s)

(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)

View NVMe Options

View Drive Options

M.2

2 M.2 PCIe 3.0 x4 NVMe/SATA slot(s) (M-key 2280/22110; VROC required for RAID)

View M.2 Options

Peripheral Bays

2 2.5″ bay(s) (optional)

System Cooling

Fans

4 middle cooling PWM 40x40x28mm Fan(s)

2 AOC cooling Fan(s) (optional)

Power Supply

1x 500W Platinum Level (93%) power supply

Dimension (WxHxL)

100 x 40 x 180 mm

AC Input

500W: 100-240Vac / 50-60Hz

+12V

Max: 41A / Min: 0.5A (100Vac-240Vac)

5V SB

Max: 3A / Min: 0A

Output Type

24pin ATX

Certification

Platinum Level

[ Test Report ]

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)
