Key Applications Data Center Optimized Database Processing and Storage Network Appliance Key Features Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM 2 PCIe 4.0 x16 (FHFL) slots, 2 PCIe 4.0 x8 (LP) slots Intel® Ethernet Controller X550 2x 10GbE RJ45 8x hot-swap 3.5'' SATA3 drive bays, SAS3 with additional SAS controller card, Optional 2x 2.5'' Gen4 NVMe drives at rear; Onboard 1x NVMe/SATA M.2 Redundant Platinum 650W Power Supply

Key Applications

Data Center Optimized

Database Processing and Storage

Network Appliance

Key Features

Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.

8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM

2 PCIe 4.0 x16 (FHFL) slots, 2 PCIe 4.0 x8 (LP) slots

Intel® Ethernet Controller X550 2x 10GbE RJ45

8x hot-swap 3.5” SATA3 drive bays, SAS3 with additional SAS controller card, Optional 2x 2.5” Gen4 NVMe drives at rear; Onboard 1x NVMe/SATA M.2

Redundant Platinum 650W Power Supply

Product SKUs

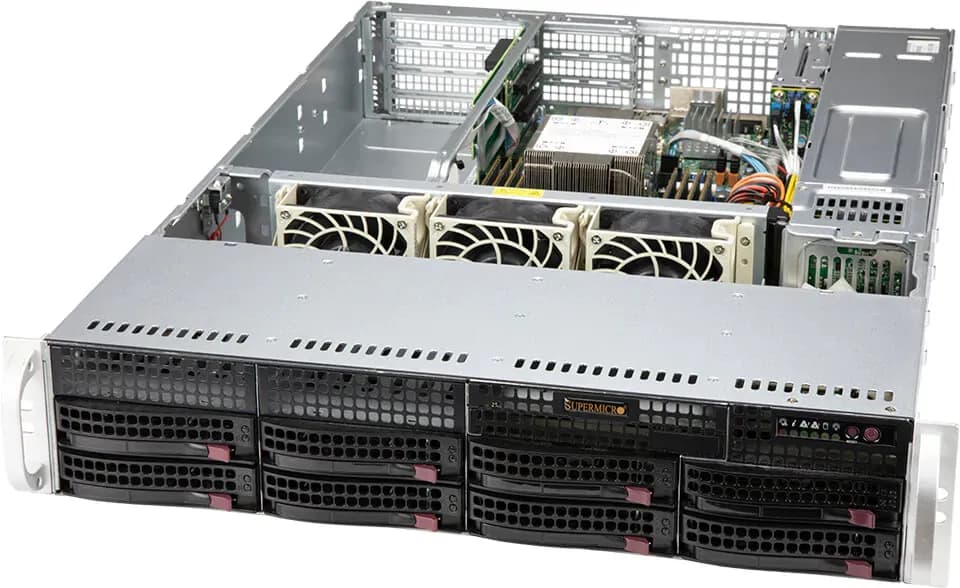

SuperServer SYS-520P-WTR Standard version with PWS-609P-1R2 (Platinum Level)

SuperServer SYS-520P-WTR-EU European version with PWS-802A-1R (Titanium Level)

Motherboard

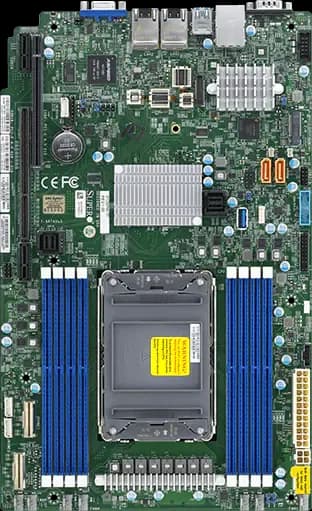

Super X12SPW-TF

Processor

CPU

Single Socket P+ (LGA-4189)

Intel® Xeon® Scalable Processors

Core Count

Up to 40C/80T; Up to 60MB Cache

Note

Supports up to 270W TDP CPUs (Air Cooled)

GPU

Max GPU Count

Up to 1 double-width or 1 single-width GPU(s)

Supported GPU

NVIDIA PCIe: T400, T1000, RTX A4000, RTX A2000

View GPU Options

CPU-GPU Interconnect

PCIe 4.0 x16 CPU-to-GPU Interconnect

System Memory

Memory

Slot Count: 8 DIMM slots

Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Supports Intel® Optane™ persistent memory 200 series

View Memory Options

Memory Voltage

1.2V

On-Board Devices

SATA

SATA (6Gbps) ; RAID 0/1/5/10 support

NVMe

NVMe; RAID 0/1 support(Intel® VROC RAID key required)

View NVMe Options

Chipset

Intel® C621A

Network Connectivity

2 RJ45 10GbE with Intel® X550

View AOC Options

Input / Output

LAN

2 RJ45 1 GbE LAN port(s)

1 RJ45 1 GbE Dedicated IPMI LAN port(s) (IPMI shared on LAN port 1)

USB

2 USB 2.0 port(s) (header)

2 USB 3.2 Gen1 Type-A port(s) (rear)

2 USB 2.0 Type-A port(s) (rear)

2 USB 3.2 Gen1 port(s) (Header)

1 USB 3.2 Gen1 Type-A port(s)

Video

1 VGA 2.0 port(s)

Serial

1 COM port(s) (Rear)

1 COM port(s) (Header)

DOM

2 SuperDOM (Disk on Module) port(s) with built-in power

TPM

1 TPM header

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

ACPI/APM Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

7+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

2U Rackmount

Model

CSE-825BTS-R609WP

Dimensions and Weight

Height

3.5″ (89 mm)

Width

17.2″ (437 mm)

Depth

25.5″ (647 mm)

Package

11″ (H) x 26.5″ (W) x 34″ (D)

Weight

Gross Weight: 59 lbs (26.76 kg)

Net Weight: 34 lbs (15.42 kg)

Available Color

Black

Front Panel

LED

Device Activity

LAN 1 Activity

LAN 2 Activity

Power Failure LED

Power status

System information

Buttons

Power On/Off

System Reset

Expansion Slots

PCI-Express (PCIe) Configuration

Default

2 PCIe 4.0 x16 FHFL slot(s)

2 PCIe 4.0 x8 LP slot(s)

Option A*

1 PCIe 4.0 x16 FHFL double-width slot(s)

2 PCIe 4.0 x8 FHFL slot(s)

2 PCIe 4.0 x8 LP slot(s)

Option B*

4 PCIe 4.0 x8 FHFL slot(s)

2 PCIe 4.0 x8 LP slot(s)

…

View AOC Options

Drive Bays / Storage

Drive Bays Configuration

Default: Total 8 bay(s)

8 front hot-swap 3.5″ SAS*/SATA drive bay(s)

Option A: Total 10 bay(s)

8 front hot-swap 3.5″ SAS*/SATA drive bay(s)

2 rear hot-swap 2.5″ PCIe 4.0 NVMe*/SAS*/SATA drive bay(s)

(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)

View NVMe Options

View Drive Options

M.2

1 M.2 PCIe 3.0 x4 NVMe/SATA slot(s) (M-key 2280/22110; VROC required for RAID)

View M.2 Options

System Cooling

Fans

3 heavy duty PWM 80x80x38mm Fan(s)

Power Supply

2x 650W Redundant (1 + 1) Platinum Level (94%) power supplies

Dimension (WxHxL)

76 x 40 x 336 mm

AC Input

600W: 100-127Vac / 50-60Hz

650W: 200-240Vac / 50-60Hz

650W: 200-240Vdc / 50-60Hz (for CCC only)

+12V

Max: 50A / Min: 0A (100Vac-127Vac)

Max: 54.16A / Min: 0A (200Vac-240Vac)

Max: 54.16A / Min: 0A (200Vdc-240Vdc) (for CCC only)

5V SB

Max: 4A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)
