Key Applications Data Center Optimized Network Appliance Database/Storage Entry GPU server Key Features Single Socket E (LGA-4677) 4th/5th Gen Intel® Xeon® Scalable processors. Up to 300W TDP Intel® C741 Chipset 8 DIMMs; Supports 3DS DDR5 RDIMM. Up to 5600 MHz Onboard 1G LAN ports (Intel® i210), 1 dedicated IPMI LAN 8x front hot-swap 3.5" SATA3 drive bays (Optional 4 hybrid Gen5 NVMe), SAS3 with additional SAS controller card Redundant Now Titanium 1000W Power Supplies

Key Applications

Data Center Optimized

Network Appliance

Database/Storage

Entry GPU server

Key Features

Single Socket E (LGA-4677) 4th/5th Gen Intel®  Xeon® Scalable processors. Up to 300W TDP

Intel® C741 Chipset

8 DIMMs; Supports 3DS DDR5 RDIMM. Up to 5600 MHz

Onboard 1G LAN ports (Intel® i210), 1 dedicated IPMI LAN

8x front hot-swap 3.5″ SATA3 drive bays (Optional 4 hybrid Gen5 NVMe), SAS3 with additional SAS controller card

Redundant Now Titanium 1000W Power Supplies

Product SKUs

SuperServer SYS-521E-WR

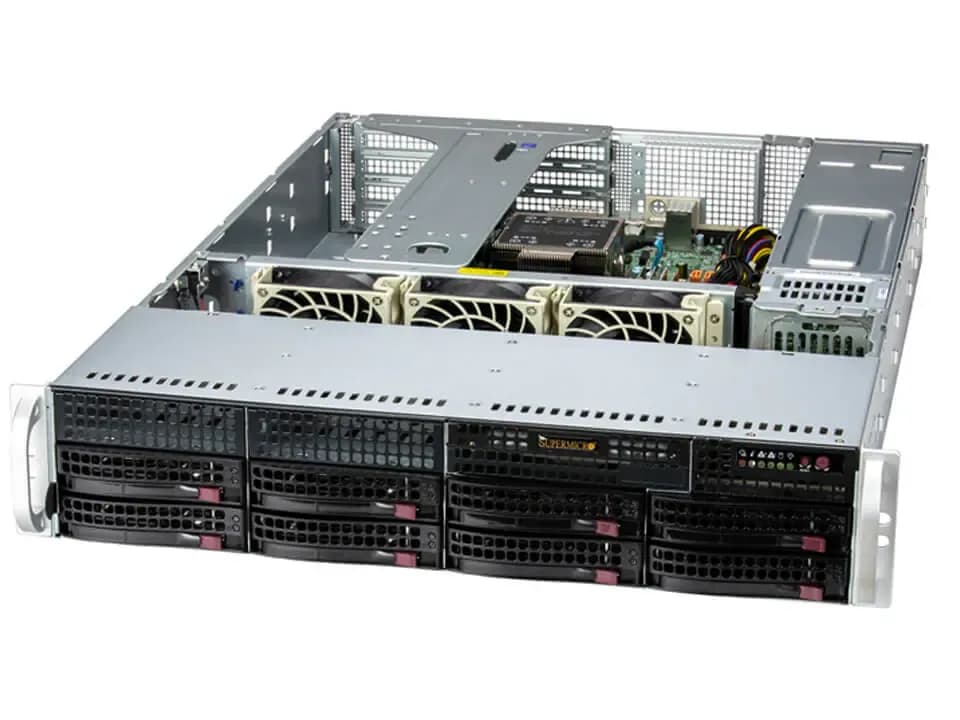

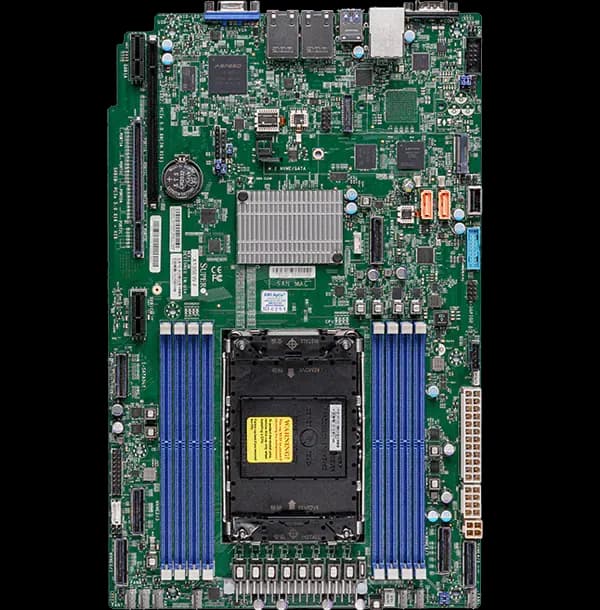

Motherboard

Super X13SEW-F

Processor

CPU

Single Socket E (LGA-4677)

5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Core Count

Up to 52C/104T; Up to 300MB Cache

Note

Supports up to 300W TDP CPUs (Air Cooled)

GPU

Max GPU Count

Up to 1 double-width or 2 single-width GPU(s)

Supported GPU

NVIDIA PCIe: T400, RTX A5000, RTX A4500, RTX A4000, RTX A2000

View GPU Options

CPU-GPU Interconnect

PCIe 5.0 x16 CPU-to-GPU Interconnect

System Memory

Memory

Slot Count: 8 DIMM slots/8 Channels

Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM

View Memory Options

Memory Voltage

1.1V

On-Board Devices

SATA

SATA (6Gbps) ; RAID 0/1/5/10 support

NVMe

NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

View NVMe Options

Chipset

Intel® C741

Network Connectivity

2 RJ45 1GbE with Intel® I210

View AOC Options

Input / Output

LAN

2 RJ45 1 GbE LAN port(s)

1 RJ45 1 GbE Dedicated BMC LAN port(s) (IPMI shared on LAN port 1)

USB

2 USB 3.2 Gen1 Type-A port(s) (rear)

2 USB 2.0 Type-A port(s) (rear)

1 USB 2.0 Type-A port(s) (Header)

2 USB 3.2 Gen1 port(s) (Header)

Video

1 VGA port(s)

Serial

1 COM port(s) (Rear)

1 COM port(s) (Header)

TPM

1 TPM header

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

ACPI/APM Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

Supply Chain Security: Remote Attestation

Runtime BMC Protections

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

8 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

2U Rackmount

Model

CSE-825B2TS-R0WNP

Dimensions and Weight

Height

3.5″ (89 mm)

Width

17.2″ (437 mm)

Depth

25.5″ (647 mm)

Package

11″ (H) x 26.5″ (W) x 34″ (D)

Weight

Gross Weight: 59 lbs (26.76 kg)

Net Weight: 34 lbs (15.42 kg)

Available Color

Black

Front Panel

LED

Device Activity

LAN 1 Activity

LAN 2 Activity

Power Failure LED

Power status

System information

Buttons

Power On/Off

System Reset

Expansion Slots

PCI-Express (PCIe) Configuration

Default

2 PCIe 5.0 x16 FHFL double-width slot(s)

2 PCIe 5.0 x8 LP slot(s)

Option A*

1 PCIe 5.0 x16 FHFL double-width slot(s)

2 PCIe 5.0 x8 FHFL slot(s)

2 PCIe 5.0 x8 LP slot(s)

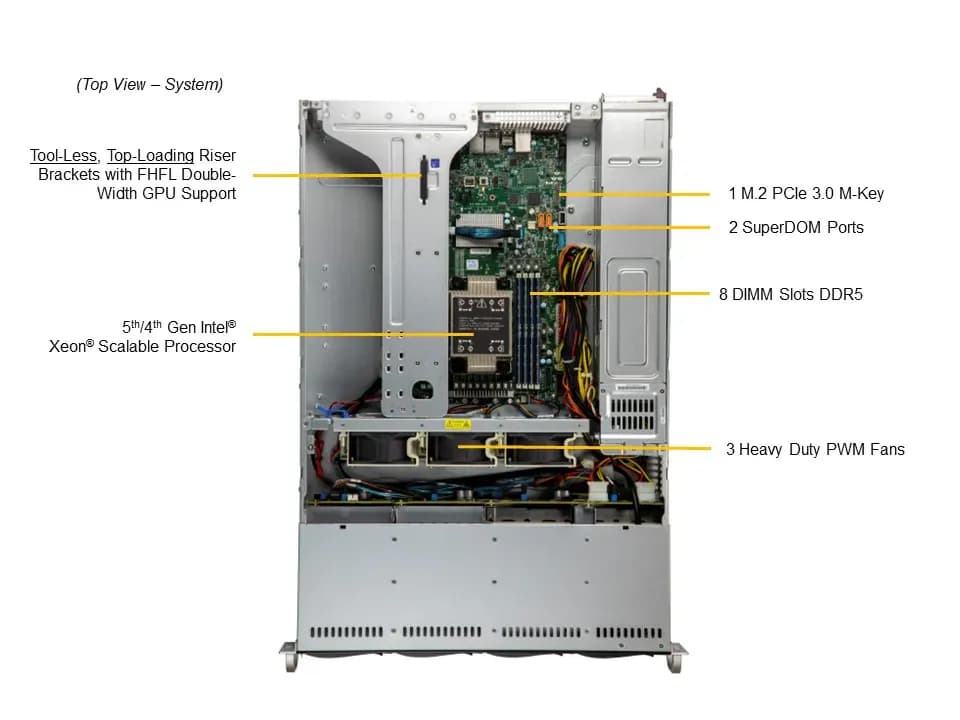

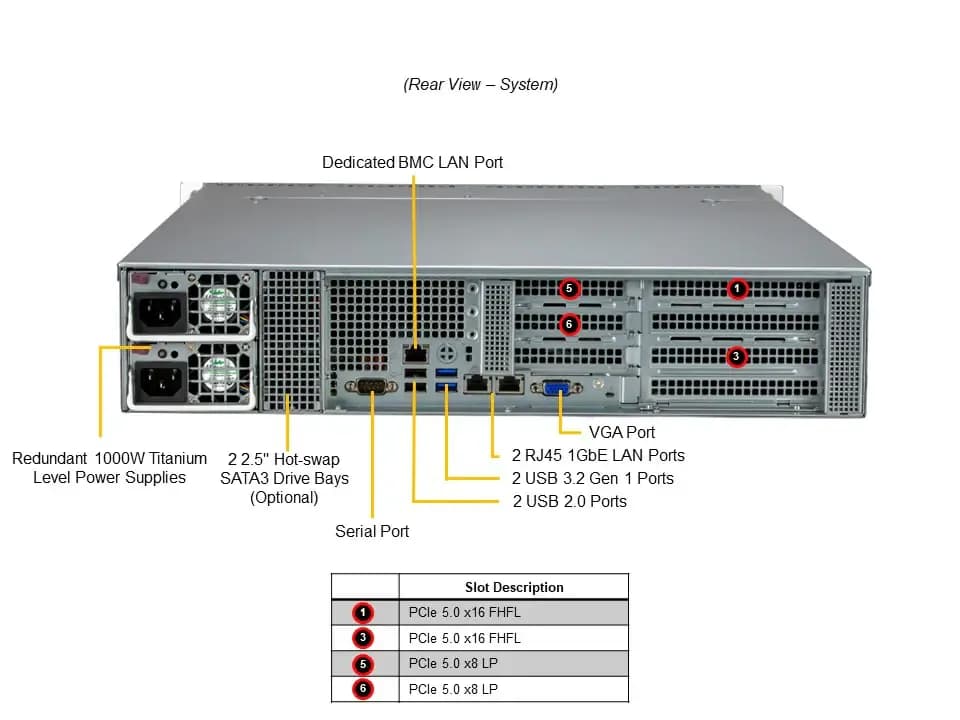

(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

View AOC Options

Drive Bays / Storage

Drive Bays Configuration

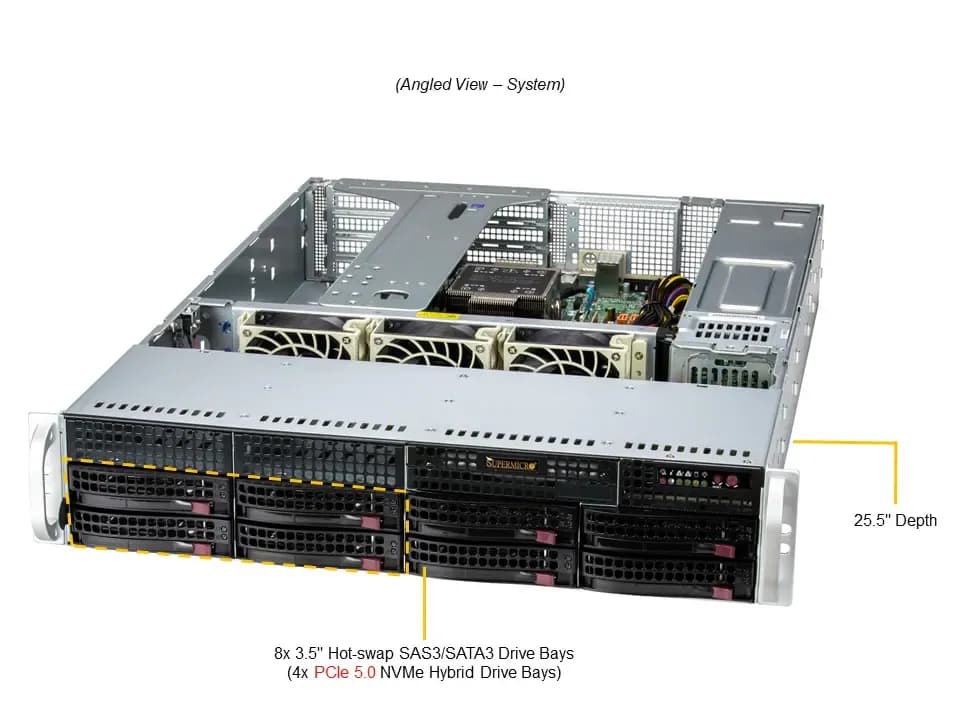

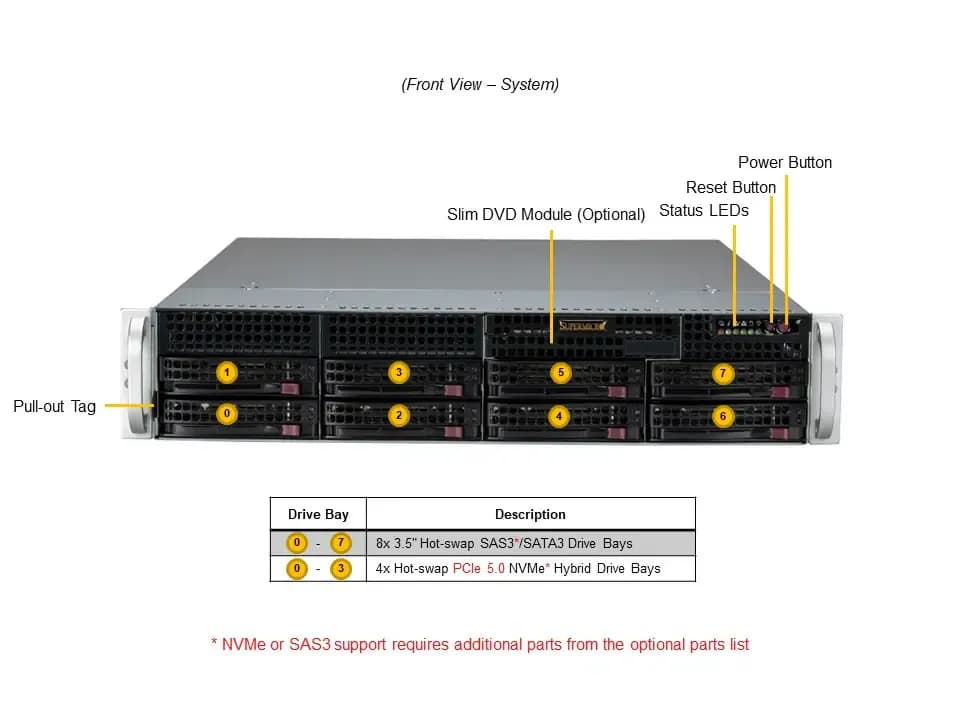

Default: Total 8 bay(s)

4 front hot-swap 3.5″ SAS*/SATA drive bay(s)

4 front hot-swap 3.5″ PCIe 5.0 NVMe*/SAS*/SATA drive bay(s)

(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)

View NVMe Options

View Drive Options

M.2

1 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 2280/22110)

View M.2 Options

Peripheral Bays

2 2.5″ bay(s) (optional)

System Cooling

Fans

3 heavy duty PWM 80x80x38mm Fan(s)

Power Supply

2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)

76 x 40 x 336 mm

AC Input

800W: 100-127Vac / 50-60Hz

1000W: 200-240Vdc / 50-60Hz

1000W: 200-240Vac / 50-60Hz

+12V

Max: 66.7A / Min: 0A (100Vac-127Vac)

Max: 83A / Min: 0A (200Vdc-240Vdc)

Max: 83A / Min: 0A (200Vac-240Vac)

5V SB

Max: 4A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)

Operating Relative Humidity: 8% to 80% (non-condensing)

Non-operating Relative Humidity: 8% to 90% (non-condensing)
