Key Applications - Financial Services - Cloud Computing - Network Appliance - Private Cloud - Content Delivery Network (CDN) - Deep Learning Inferencing Key Features 1.Single AMD EPYC™ 7002/7003 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) 2.16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM 3.Expansion slots: 2 PCI-E 4.0 x16 (FHHL) slots, 2 AIOM slots for flexible networking (One x8 AIOM slot and one x16 AIOM slot) 4.Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management 5.10 Hot-swap 2.5" SATA3 drive bays, optional 10x SAS3/NVMe support via additional SAS/NVMe kit M.2 Interface: 2 PCI-E 4.0 x4 M.2 Form Factor: 2242, 2260, 2280, 22110 M.2 Key: M-Key 6.2 USB 3.0 ports (rear), 1 VGA, 1 COM, ASPEED AST2600 BMC graphics 7.Tool-less Drive Trays and Tool-less Brackets 8.860W Redundant Platinum Level Power Supplies (Full redundancy based on configuration and application load)

Key Applications

– Financial Services

– Cloud Computing

– Network Appliance

– Private Cloud

– Content Delivery Network (CDN)

– Deep Learning Inferencing

Key Features

1.Single AMD EPYC™ 7002/7003 Series Processor

(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)

2.16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM

3.Expansion slots:

2 PCI-E 4.0 x16 (FHHL) slots,

2 AIOM slots for flexible networking

(One x8 AIOM slot and one x16 AIOM slot)

4.Integrated IPMI 2.0 + KVM with dedicated LAN

• Software Out of Band License

key (SFT-OOB-LIC) included

for OOB BIOS management

5.10 Hot-swap 2.5″ SATA3 drive bays,

optional 10x SAS3/NVMe support via additional SAS/NVMe kit

M.2 Interface: 2 PCI-E 4.0 x4

M.2 Form Factor: 2242, 2260, 2280, 22110

M.2 Key: M-Key

6.2 USB 3.0 ports (rear),

1 VGA, 1 COM,

ASPEED AST2600 BMC graphics

7.Tool-less Drive Trays and Tool-less Brackets

8.860W Redundant Platinum Level Power Supplies

(Full redundancy based on configuration and application load)

Product SKUs

AS -1114CS-TNR

Standard version with PWS-860P-1R2 (Platinum Level)

AS -1114CS-TNR-EU

European version with PWS-861A-1R (Titanium Level)

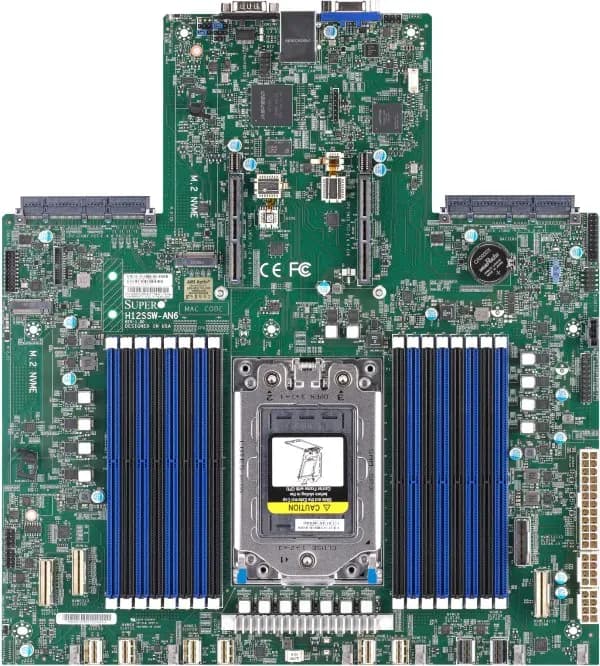

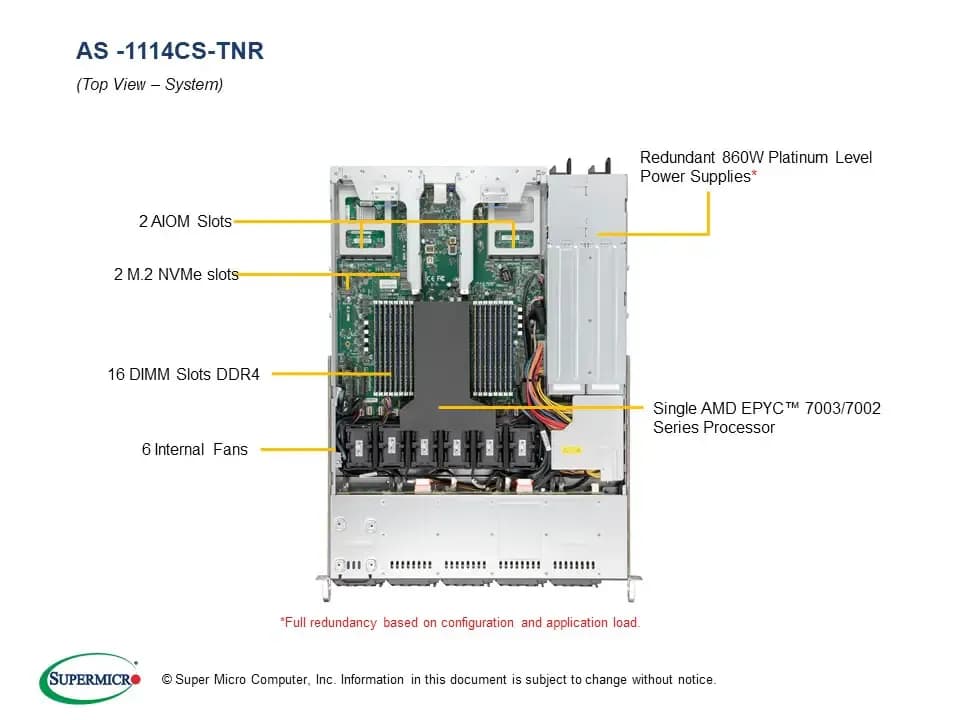

Motherboard

Super H12SSW-AN6

Processor/Chipset

CPU

Single AMD EPYC™ 7002/7003 Series Processor

(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)

Socket SP3

Supports CPU TDP up to 280W

Cores

Up to 64 Cores

Note

CPU 7773X, 7573X, 7473X, 7373X, 75F3, or 7763 requires updating Fans to 6x FAN-0163L4

System Memory

Memory Capacity

16 DIMM slots

Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM

Memory Type

DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

On-Board Devices

Chipset

System on Chip

SATA

SATA3 (6Gbps)

Network Controllers

Flexible networking provided via AIOM

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Video

ASPEED AST2600 BMC

Input / Output

SATA

16 SATA3 (6 Gbps) ports

LAN

Networking provided via AIOM

1 RJ45 Dedicated IPMI LAN port

USB

2 USB 3.0 ports (rear)

COM

1 COM Port (rear)

Video

1 VGA port

System BIOS

BIOS Type

AMI 256Mb SPI Flash EEPROM

Management

Software

Super Doctor 5

Watch Dog

SUM

IPMI 2.0, KVM with dedicated LAN

Power Configurations

ACPI / APM Power Management

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory.

4+1 Phase-switching voltage regulator

FAN

6 Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

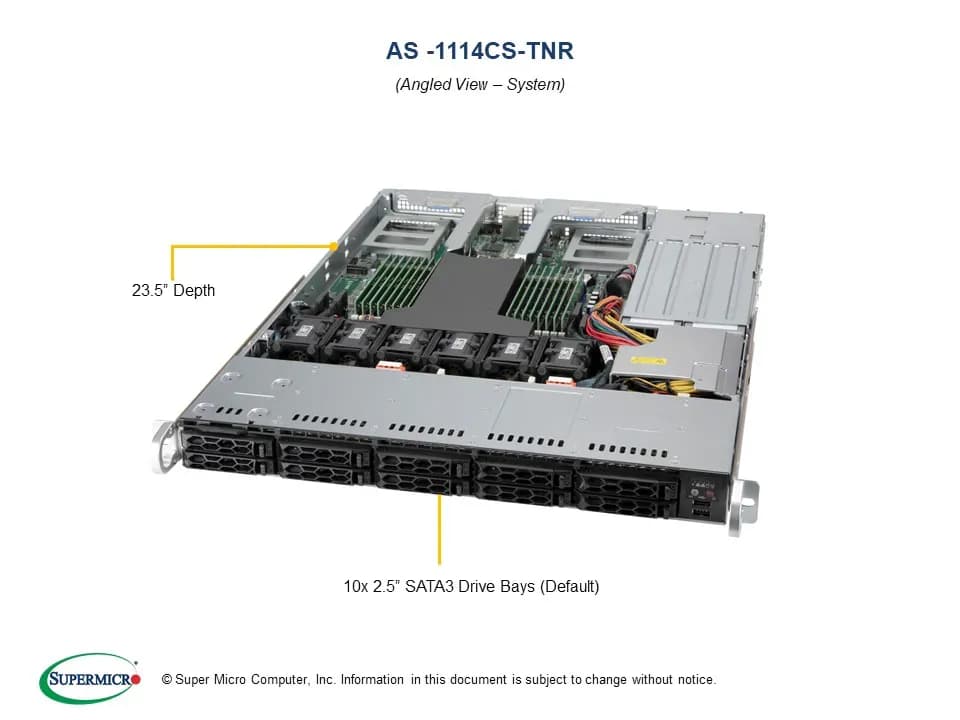

Chassis

Form Factor

1U Rackmount

Model

CSE-LB16TS-R860AWP2

Dimensions and Weight

Width

17.2″ (437mm)

Height

1.7″ (43mm)

Package

7.76″ (H) 23.82″ (W) 32.36″ (D)

Depth

23.5″ (597mm)

Gross Weight

46 lbs (20.9kg)

Available Colors

Black

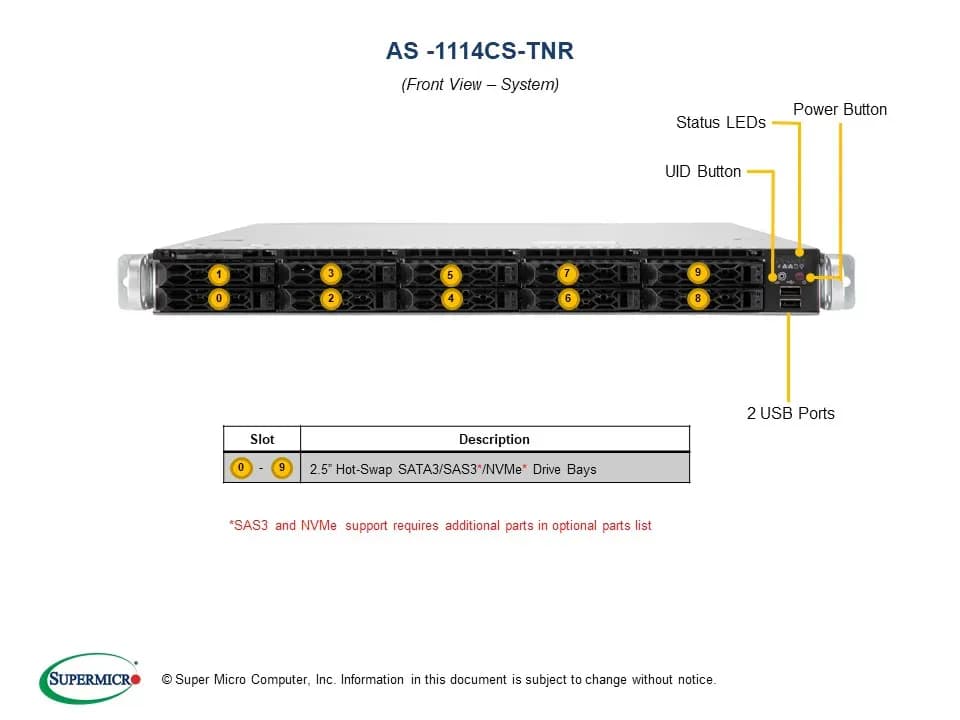

Front Panel

Buttons

Power On/Off button

UID button

LEDs

Power status LED

HDD activity LED

Network activity LEDs

Universal Information (UID) LED

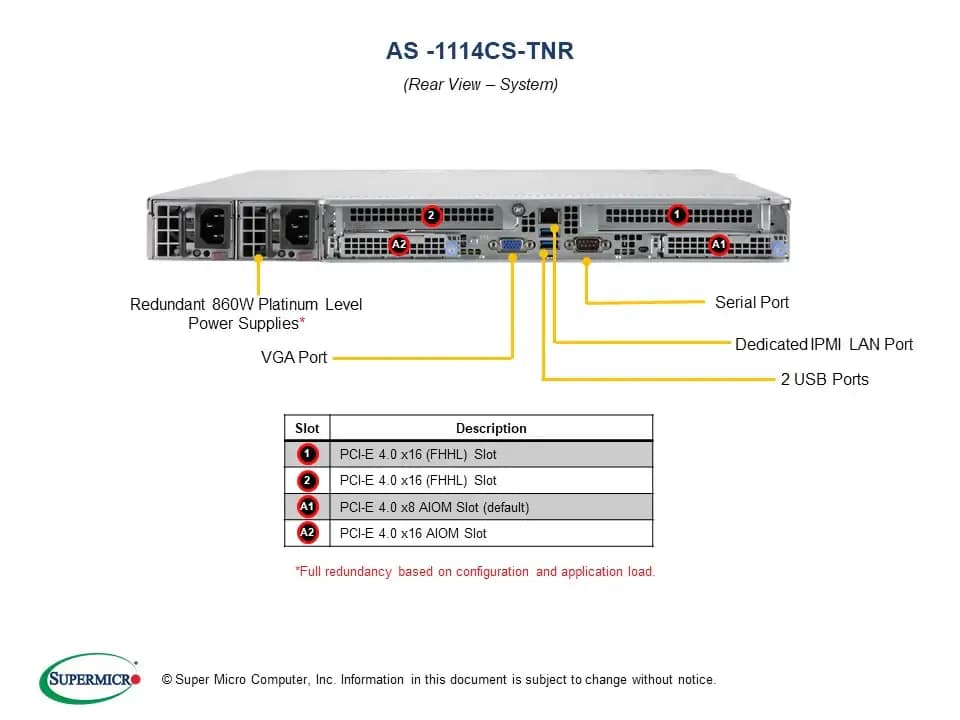

Expansion Slots

PCI-Express

2 PCI-E 4.0 x16 (FHHL) slots

2 PCI-E 4.0 x16 AIOM networking slots (One x8 AIOM slot and one x16 AIOM slot)

Drive Bays

Hot-swap

10 Hot-swap 2.5″ SATA3 drive bays

Optional 10 SAS3/NVMe drive support via additional SAS/NVMe kit

Backplane

SAS/SATA/NVMe HDD Backplane

System Cooling

Fans

6 Counter-rotating 40x40x56mm PWM fans

Power Supply

800W/860W 1U redundant power supply

Note: AS -1114CS-TNR-EU (European) SKU uses PWS-861A-1R (Titanium Level)

Total Output Power and Input

800W with Input 100 – 127Vac

860W with Input 200 – 240Vac

860W with Input 200 – 240Vdc

Dimension

(W x H x L)

54.5 x 40.25 x 322 mm

AC Input Frequency

50-60Hz

+12V

Max: 66.6A / Min: 0A (100Vac-127Vac)

Max: 71.6A / Min: 0A (200Vac-240Vac)

+5Vsb

Max: 4A / Min: 0A

Output Type

Backplanes (gold finger)

Certification

Operating Environment

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature:

10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature:

-40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity:

8% to 90% (non-condensing)

Non-operating Relative Humidity:

5% to 95% (non-condensing)
