Key Applications

– AI / Deep Learning

– High Performance Computing (HPC)

– Cloud Gaming

– Molecular Dynamics Simulation

Key Features

1.Supports up to 8 double-width GPUs

Direct connect for maximum performance

2.Dual AMD EPYC™ 7003/7002 Series Processors

3.8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs

4.9 PCI-E 4.0 x16

(Option: 10 PCI-E 4.0 x16 slots without NVMe devices)

5.Up to 24 Hot-swap 2.5″ drive bays.

With included hardware:

• 2x 2.5″ SATA in RAID 1 via onboard

Marvell 9230

• 4x 2.5″ NVMe Gen4 (depends on

PCI-E quantity based on #4)

RAID controller option available for 24 HDDs

6.2 GbE LAN ports (rear)

7.8 Hot-swap 11.5K RPM cooling fans

8.2000W (2+2) Redundant Power Supplies

Titanium Level (96%+)

(full redundancy based on configuration and application load)

Product SKUs

AS -4124GS-TNR+

A+ Server 4124GS-TNR+ (Black)

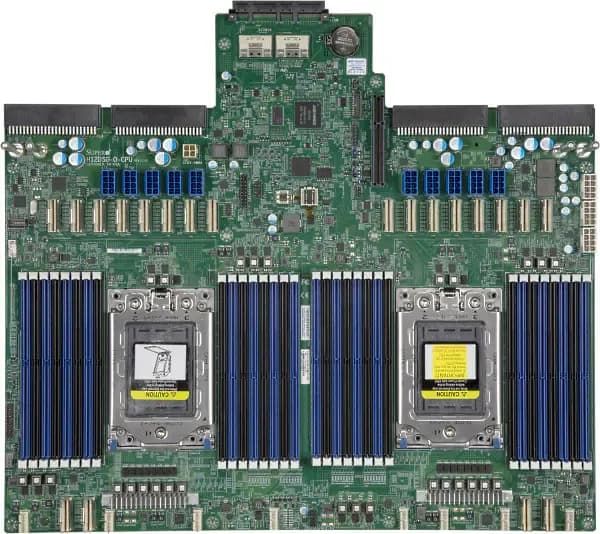

Motherboard

Super H12DSG-O-CPU

Processor/Cache

CPU

Dual AMD EPYC™ 7003/7002 Series Processors

Socket SP3

Supports CPU TDP up to 280W**

Cores

Up to 128 Cores (64 per CPU)

Note

* Supports 2 CPUs only – single socket not supported

** Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization

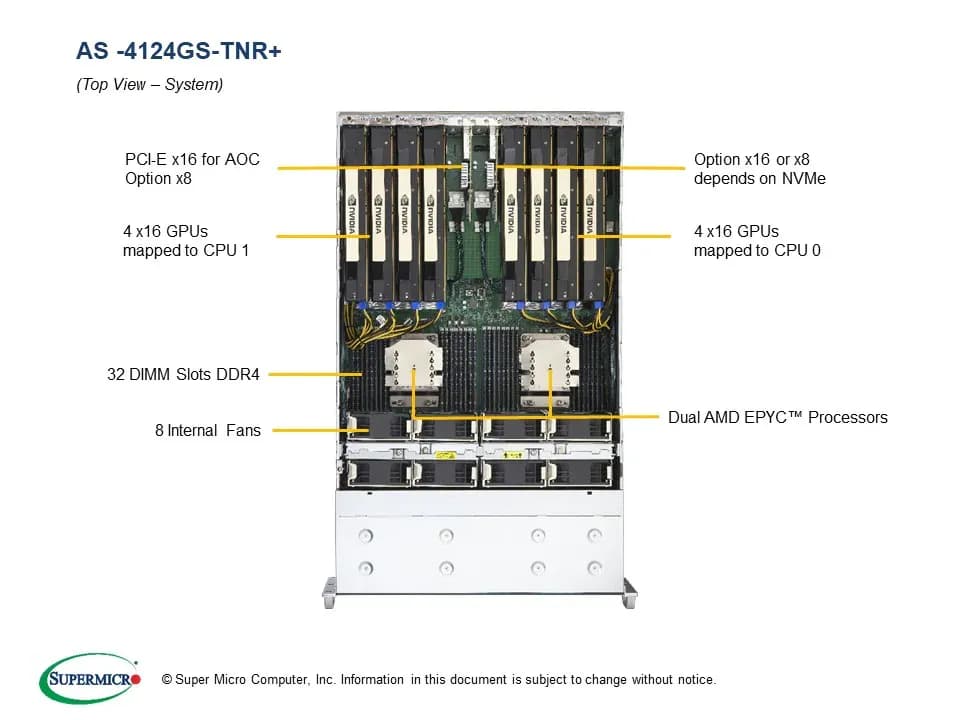

GPU

Supported GPUs

8 Double-Width/Single-Width PCI-E 3.0/4.0 x16 Card (Full Height Full Length)

NVIDIA A100, V100, A40, T4, Quadro RTX, AMD Instinct

Supports both active and passive cooled GPUs

Compatible GPU list

CPU-GPU Interconnect

PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root

GPU-GPU Interconnect

NVIDIA® NVLink™ Bridge (Optional), AMD Infinity Fabric (optional)

System Memory

Memory Capacity

32 DIMM slots*

Up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM

Memory Type

3200MHz ECC DDR4 RDIMM/LRDIMM**

Note

* Minimum 4 DIMMs per CPU required with EPYC 7003 Series processors

** In 2DPC configurations memory speed is up to 2933MHz

On-Board Devices

Chipset

System on Chip (SoC)

SATA

SATA3 (6Gbps)

Network Controllers

Provided via riser card

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

ASPEED AST2500 BMC

Input / Output

SATA/SAS

24 SATA/SAS with a controller

LAN

2 RJ45 GbE LAN ports (rear)

1 RJ45 Dedicated IPMI LAN port

USB

2 USB 3.0 ports (rear)

Video

1 VGA Connector

COM Port

1 COM port (header)

System BIOS

BIOS Type

AMI 32Mb SPI Flash ROM

Management

Software

IPMI 2.0

KVM with dedicated LAN

SSM, SPM, SUM

SuperDoctor® 5

Watchdog

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory.

4+1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Other Features

RoT

Chassis

Form Factor

4U Rackmountable

Rackmount Kit (MCP-290-00057-0N)

Model

CSE-418G2TS-R4016BP

Dimensions

Height

7.0″ (178mm)

Width

17.2″ (437mm)

Depth

29″ (737mm)

Package

26.57″ (H) x 27″ (W) x 41″ (D)

Weight

Net Weight: 65.5 lbs (29.7 kg)

Gross Weight: 100 lbs (45.3 kg)

Available Colors

Black

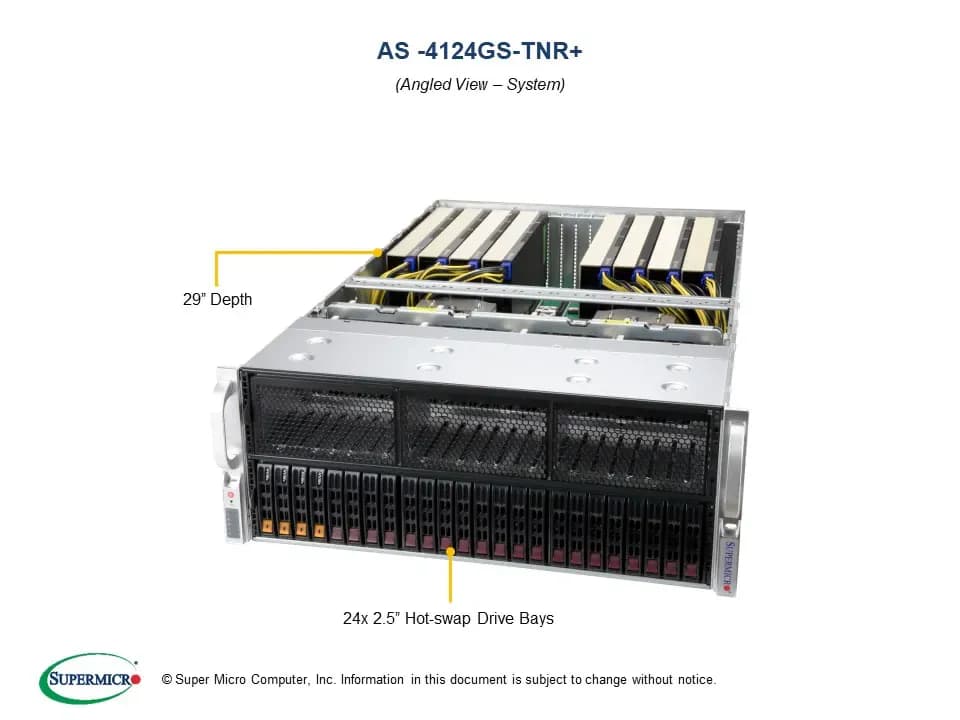

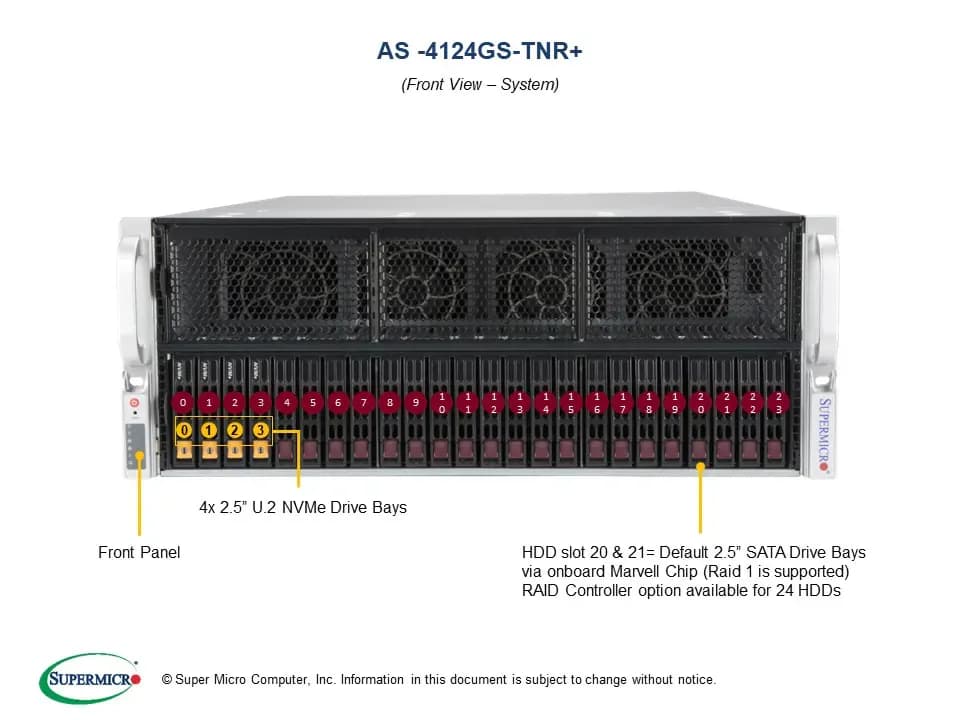

Drive Bays / Storage

Hot-swap

Up to 24x 2.5″ SAS/SATA drive bays

2x 2.5″ SATA supported natively*

4x 2.5″ NVMe Gen4 supported natively

RAID controller option available for 24 HDDs

Note

* 2x drives in RAID 1 only via onboard Marvell 9230

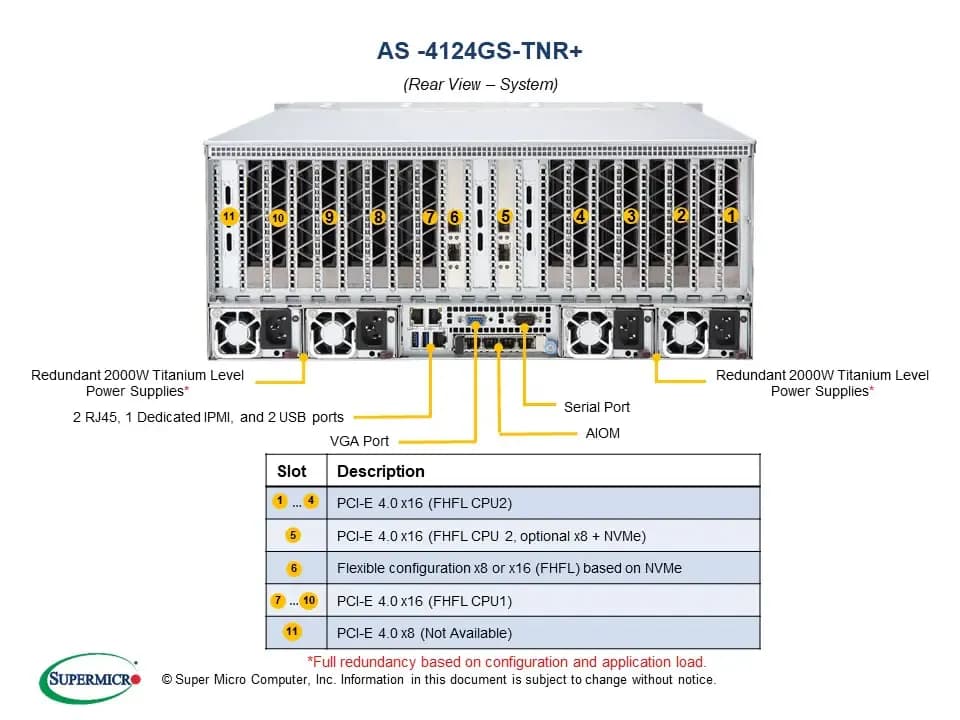

Expansion Slots

PCI-Express

9 PCI-E 4.0 x16 (FHFL) slots

or 10 PCI-E 4.0 x16 (FHFL) slots without NVMe devices

System Cooling

Fans

8x 11.5K RPM heavy duty fans

Power Supply

2000W Redundant Power Supplies with PMBus

Total Output Power

1000W: 100 – 127Vac

1800W: 200 – 220Vac

1980W: 220 – 230Vac

2000W: 230 – 240Vac

2000W: 220 – 240Vac (UL only)

Dimension

(W x H x L)

73.5 x 40 x 203 mm

Input

100-127Vac / 12-9A / 50-60Hz

200-220Vac / 10-9.8A / 50-60Hz

220-230Vac / 10-9.8A / 50-60Hz

230-240Vac / 10-9.8A / 50-60Hz

220-240Vac / 11-10A / 50-60Hz (UL only)

+12V

Max: 83A / Min: 0A (100-127Vac)

Max: 150A / Min: 0A (200-220Vac)

Max: 165A / Min: 0A (220-230Vac)

Max: 166A / Min: 0A (230-240Vac)

Max: 166A / Min: 0A (220-240Vac) (UL only)

12Vsb

Max: 3.5A / Min: 0A

Output Type

25 Pairs Gold Finger Connector

Certification

Titanium Level

[ Test Report ]

Operating Environment

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature:

10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature:

-40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity:

8% to 90% (non-condensing)

Non-operating Relative Humidity:

5% to 95% (non-condensing)
