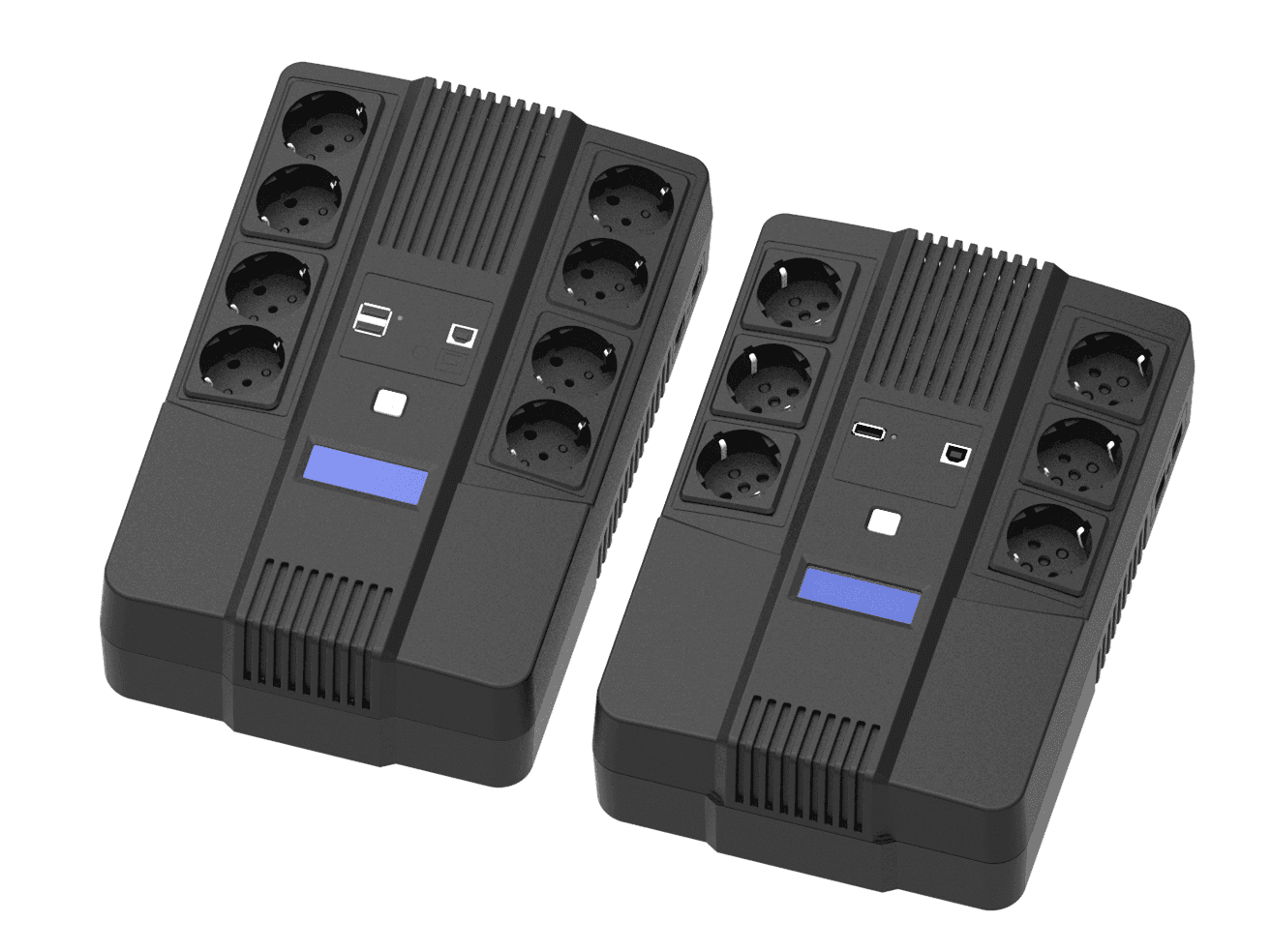

AIO UPS is a compact UPS for standalone and mounting flexible. With intelligent microprocessor control design, AVR boost and buck, intelligent USB communication interface and cold start function, it guarantees high reliability which makes it an ideal solution for protecting home applications and small office systems. In addition, AIO UPS has a built-in USB charger, which can charge your mobile phone, PAD, etc.

AIO Line Interactive UPS 600-1000VA.pdf

General Features

● Boost and Buck AVR corrects either under-voltage or over-voltage condition to minimize the usage of battery energy, hence to extend the life of battery

■ Built-in USB charger supplies feasible access to recharge your mobile or PAD alone

■ With ergonomic cable management design, all the access of the cable is from top only

■ Easy user replacable battery

■ Cold start function

■ Smart USB interface for power management supports real-time power and UPS status monitoring.  Automatic shutdown, schedule and many other advanced power management functions.

■ Automatic restart function enables UPS power to restart automatically when the normal power supply returns

Technical Specification

Model

AIO 600

AIO 800

AIO 1K

Capacity(VA/Watts)

600 / 360

800 / 480

1000  / 600

INPUT

Voltage

220/230/240Vac

Voltage Range

162~290Vac

Frequency Range

50/60 Hz (1±10%) auto-sensing

OUTPUT

AC Voltage Regulation (Batt. Mode)

±10%

Frequency Range (Batt. Mode)

50/60 Hz±1Hz

Transfer Time

Typical 2-6 ms,10 ms Max.

Waveform (Batt. Mode)

Simulated Sinewave

BATTERY

Battery Voltage

12Vdc

Battery Type & Number

12 V / 7Ah x 1

12 V / 9Ah x1

Typical Recharge Time

6~8 hours recover to 90% capacity

INDICATORS

LED Display(LED version)

AC Mode, Battery Mode, Overload, Fault

LCD Display(LCD version)

AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Battery Low

PROTECTION

Full Protection

Short circuit, Overload , Overcharge and overdischarge protection

ALARM

Battery mode

Sounding every 10 seconds

Low Battery

Sounding every second

Overload

Sounding every 0.5 second

Battery Replacement Alarm

Sounding every 2 seconds

Fault

Continuously sounding

MANAGEMENT

Communication port

USB or RS232((Supports Windows

2000/2003/XP/Vista/2008, Windows

7, Linux, Unix, and MAC))

Other

USB Charger port

5Vdc/1A type A (for mobile or iPad charging)

5Vdc/2A type A (for mobile or iPad charging)

OPERATING ENVIRONMENT

Humidity

0-90 % RH @ 0- 40°C (non-condensing)

Noise Level

Less than 45dB

PHYSICAL

Approx. Dimension D * W * H (mm)

293*202*93

309*202*93

Approx. Net Weight (kgs)

3.6

4.9

6.4

Safety

IEC/EN62040-1;IEC/EN60950-1

EMC

IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4;IEC61000-4-5;IEC61000-4-6;IEC61000-4-8

Specifications are subject to change without prior notice.
