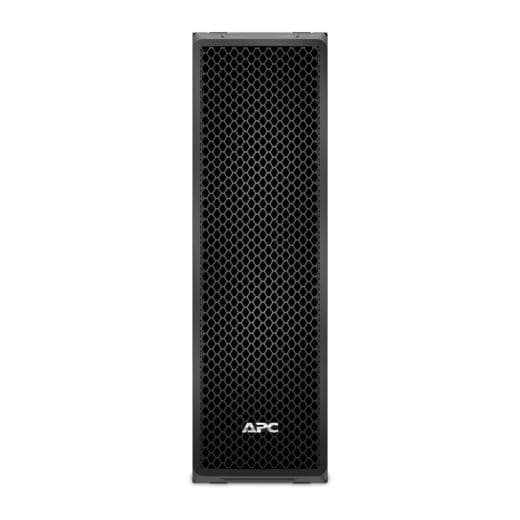

Extended-run battery systems provide flexible runtime to critical Smart-UPS applications. Includes: Documentation CD, Installation guide, Warranty card

Extended-run battery systems provide flexible runtime to critical Smart-UPS applications.

Includes: Documentation CD, Installation guide, Warranty card

Output

Battery Output Voltage

+/- 192 V

Batteries & Runtime

Battery type

Lead-acid battery

Battery mounting

Stand alone battery stack

Expected Battery Life (years)

3 – 5

RBC Quantity

2

Physical

Maximum Height

432MM, 43.2CM

Maximum Width

130MM, 13.0CM

Maximum Depth

683MM, 68.27CM

Net Weight

91.0KG

Shipping weight

101.5KG

Shipping Height

420MM, 42.0CM

Shipping Width

600MM, 60.0CM

Shipping Depth

1000MM, 100.0CM

Color

Black

Units per Pallet

1.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15240meters

Conformance

Standard warranty

2 years repair or replace
