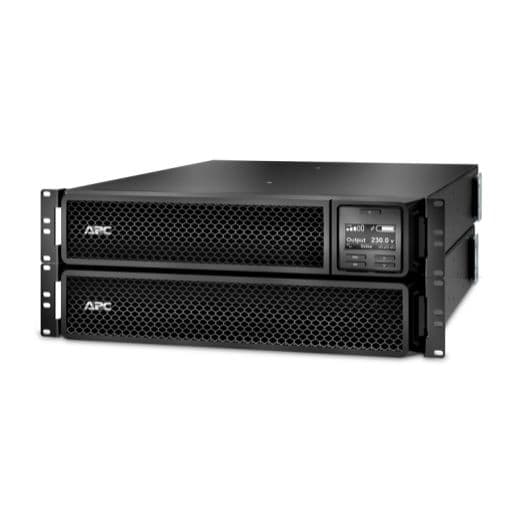

High density, double-conversion on-line power protection with scalable runtime Includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting

High density, double-conversion on-line power protection with scalable runtime

Includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting

Output

Max Configurable Power (Watts)

1.98kWatts / 2.2kVA

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Built-in bypass

Input

Input frequency

40 – 70 Hz Auto-sensing

Input voltage range for main operations

100 – 275 Adjustable (half load), 160 – 275V

Number of Power Cords

1

Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Lead-acid battery

Included Battery Modules

1

Typical recharge time

3hour(s)

Nominal Battery Voltage

72 V

Replacement Battery

APCRBC141

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

122 Watts

Extendable Run Time

1

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

RJ-45 Serial, Smart-Slot, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

340Joules

Physical

Maximum Height

85MM, 8.5CM

Maximum Width

432MM, 43.2CM

Maximum Depth

584MM, 58.4CM

Net Weight

25.0KG

Shipping weight

34.02KG

Shipping Height

246MM, 24.6CM

Shipping Width

599MM, 59.9CM

Shipping Depth

810MM, 81.0CM

Color

Black

Units per Pallet

12.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3048meters

Storage Temperature

-20 – 50 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

535.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS

Compliant
