Highly available single phase UPS features redundant and scalable double-conversion on-line power protection Includes: CD with software, Documentation CD, Installation guide, User manual, Web/SNMP management card

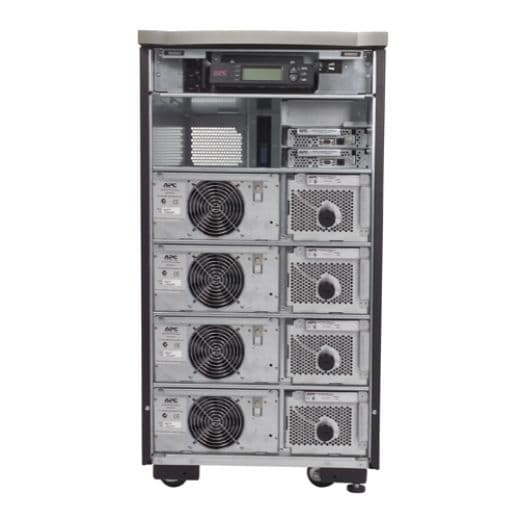

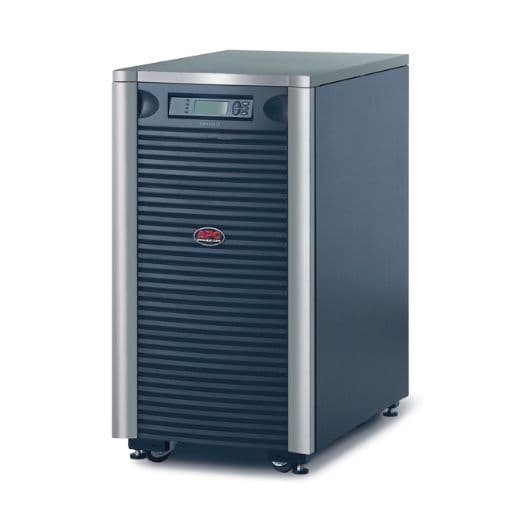

Highly available single phase UPS features redundant and scalable double-conversion on-line power protection

Includes: CD with software, Documentation CD, Installation guide, User manual, Web/SNMP management card

Output

Max Configurable Power (Watts)

11.2kWatts / 16.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 5 % at full load

Output Frequency (sync to mains)

47 – 63 Hz Sync to mains, 50 Hz +/- 0.1 % For 50 Hz nominal Unsynchronised, 60 Hz +/- 0.1 % For 60 Hz nominal Unsynchronised

Other Output Voltages

220, 240

Load Crest Factor

Up to 5 : 1

Topology

Double conversion online

Waveform type

Sine wave

Maximum Output Current

73

Bypass

Internal bypass (automatic and manual)

Input

Input frequency

45 – 65 Hz Auto-sensing

Input voltage range for main operations

155 – 276, 290 – 480 3:1V

Input Total Harmonic Distortion

Less than 7 % for full load

Other Input Voltages

220, 240, 380, 415

Input Power Factor at Full Load

0.98

Batteries & Runtime

Battery type

Lead-acid battery

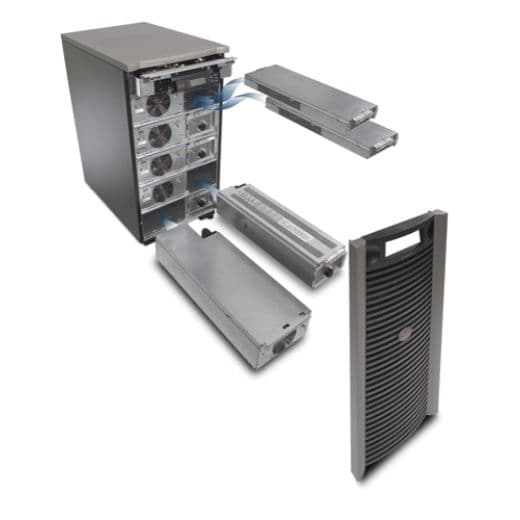

Included Battery Modules

4

Typical recharge time

3hour(s)

Replacement Battery

SYBT5

Expected Battery Life (years)

3 – 5

Battery Charge Power (Watts)

1.148kWatts

Extendable Run Time

1

Efficiency

View Efficiency Graph

Communications & Management

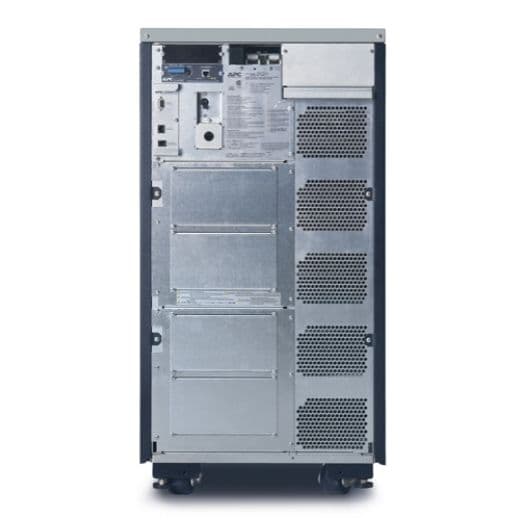

Interface Port(s)

DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot

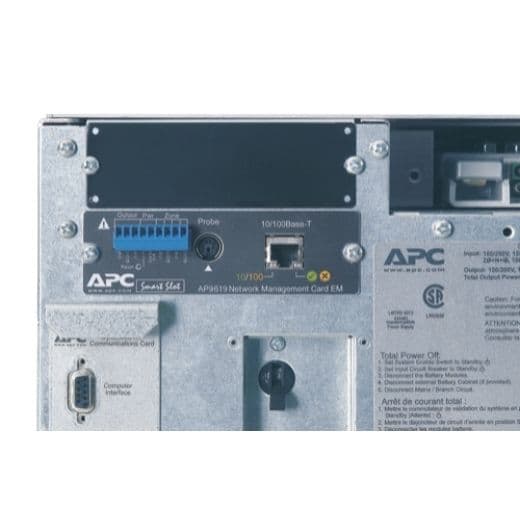

Pre-Installed SmartSlot™ Cards

AP9631

Control panel

Multifunction LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Physical

Maximum Height

937MM, 93.7CM

Maximum Width

483MM, 48.3CM

Maximum Depth

726MM, 72.6CM

Net Weight

307.73KG

Shipping weight

337.73KG

Shipping Height

1181MM, 118.1CM

Shipping Width

599MM, 59.9CM

Shipping Depth

997MM, 99.7CM

Color

Black, Silver

Units per Pallet

1.0

Environmental

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0 – 4572meters

Audible noise at 1 meter from surface of unit

62.0dBA

Online thermal dissipation

3707.0BTU/hr

Conformance

Approvals

C-Tick, CE, EN 50091-1, EN 50091-2, EN 55022 class A, EN 55024, EN 60950, GOST, IEC 60950, VDE

Standard warranty

2 years repair or replace

Sustainable Offer Status

RoHS

Compliant
