ASA 5505 50-user, AIP SSC-5, SW, 3DES/AES, Cisco ASA 5500 Series IPS Edition Bundles

Model:

ASA5505-50-AIP5-K9 Cisco ASA 5500 IPS

Brand:

Cisco

ASA5505-50-AIP5-K9 Overview

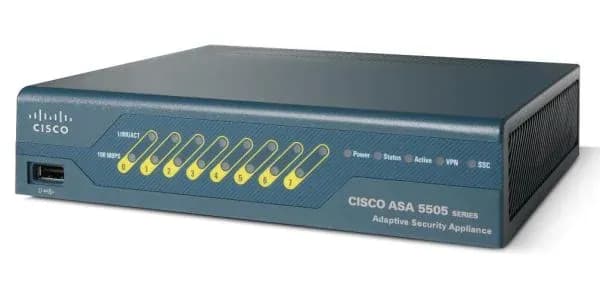

The Cisco ASA 5505 Adaptive Security Appliance ASA5505-50-AIP5-K9 is a next-generation, full-featured security appliance for small business, branch office, and enterprise teleworker environments. The Cisco ASA 5505 delivers high-performance firewall, SSL and IPsec VPN, and rich networking services in a modular, “plug-and-play” appliance. Using the integrated Cisco ASDM, the Cisco ASA 5505 can be rapidly deployed and easily managed, enabling businesses to minimize operations costs. The Cisco ASA 5505 features a flexible 8-port 10/100 Fast Ethernet switch, whose ports can be dynamically grouped to create up to three separate VLANs for home, business, and Internet traffic for improved network segmentation and security. The Cisco ASA 5505 provides two Power over Ethernet (PoE) ports, enabling simplified deployment of Cisco IP phones with zero-touch secure voice over IP (VoIP) capabilities, and deployment of external wireless access points for extended network mobility. High-performance intrusion prevention and worm mitigation service is available with the addition of AIP SSC.  Multiple USB ports can be used to  enable additional services and capabilities  in the future.

Quick Spec

Table 1 shows the quick spec.

Product Code

ASA5505-50-AIP5-K9

Product Description

Cisco ASA 5505 50-User Adaptive Security Appliance with AIP-SSC-5 (chassis, software, 8 Fast Ethernet interfaces,10 IPsec VPN peers, 2 SSL VPN peers, 3DES/AES license)

Users/Nodes

50

Firewall Throughput

Up to 150 Mbps

Maximum Firewall and IPS Throughput

Up to 150 Mbps with AIP-SSC-5

Memory

256 MB

Minimum System Flash

64 MB

Dimensions (H x W x D)

1.75 x 7.89 x 6.87 in. (4.45 x 20.04 x 17.45 cm)

Weight (with Power Supply)

4.0 lb (1.8 kg)

Product Details

Compare to Similar Items

Table 3 shows the comparison between ASA5505-50-AIP5-K9 and ASA5510-BUN-K9.

Product Code

ASA5505-50-AIP5-K9

ASA5510-BUN-K9

Product Description

Cisco ASA 5505 50-User Adaptive Security Appliance with AIP-SSC-5 (chassis, software, 8 Fast Ethernet interfaces,10 IPsec VPN peers, 2 SSL VPN peers, 3DES/AES license)

ASA 5510 Security Appliance with SW, 5FE,3DES/AES, Cisco ASA 5500 Series Firewall Edition Bundles

Users/Nodes

50

Unlimited

Firewall Throughput

Up to 150 Mbps

Up to 300 Mbps

Maximum Firewall and IPS Throughput

Up to 150 Mbps with AIP-SSC-5

Up to 150 Mbps with AIP-SSM-10

Up to 300 Mbps with AIP-SSM-20

Memory

256 MB

256 MB

Minimum System Flash

64 MB

64 MB

Dimensions (H x W x D)

1.75 x 7.89 x 6.87 in. (4.45 x 20.04 x 17.45 cm)

1.75 x 7.89 x 6.87 in. (4.45 x 20.04 x 17.45 cm)

Weight (with Power Supply)

4.0 lb (1.8 kg)

20.0 lb (9.07 kg)
