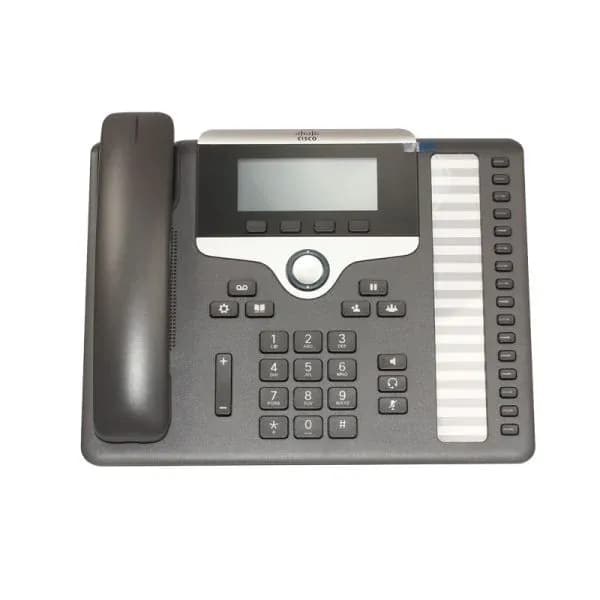

Cisco Unified IP Phone CP-7861 Cisco 7800 Unified IP Phone

Model:

CP-7861-K9

Brand:

Cisco

CP-7861-K9 Overview

The Cisco IP Phone 7861 is designed for small to large businesses, seeking high-quality, full-featured VoIP communications.

Quick Specs

Table 1 shows the Quick Spec.

Product Code

CP-7861-K9

Screen

396 x 162 pixel (3.5 in. / 89 mm)

Ethernet Switch

10/100

Programmable Line Keys

16

Full Duplex Speakerphone

Yes

Number of Line Keys

16

Wideband Audio

Yes

PoE Class

1

Third-party Call Control

Yes

Replaceable Bezel

Yes

Package Weight

1.7 Kg

Product Details

Before you use the Cisco IP Phone 7861, it should be connected to the corporate IP telephony network.

Note:

?AC power wall plug (optional)

?Network port (10/100 SW) connection. IEEE 802.3af power enabled

?Access port (10/100 PC) connection

?Auxiliary port (optional)

?Handset connection

?Analog headset connection (optional)

Note:

Handset light strip

Phone screen

Softkey buttons

Programmable feature buttons

Navigation and Select button

Hold/Resume button

Conference button

Transfer button

Speakerphone button

Headset

button Mute button

Keypad

Volume button

Contacts button

Applications butto

Messages button

Handset

Compare to Similar Items

Table 2 shows the comparison of Cisco IP Phone 7811, 7821, 7841 and 7861.

Model

CP-7811-K9

CP-7821-K9

CP-7841-K9

CP-7861-K9

Ethernet switch

10/100

10/100

10/100/1000

10/100

Programable line keys

0

2

4

16

Number of Line Keys

0

2

4

16

Full duplex speakerphone

Yes (narrowband)

Yes

Yes

Yes

PoE Class

1

1

1

1

Third-party call control

Planned

Yes

Yes

Yes

Replaceable bezel

N/A

Yes

Yes

Yes
