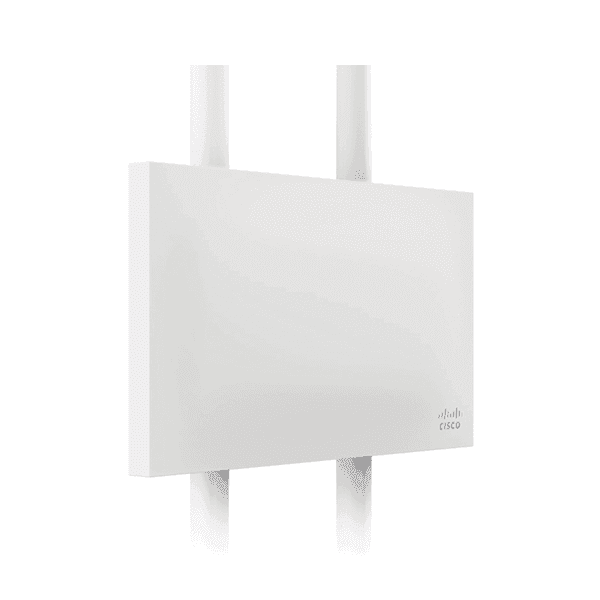

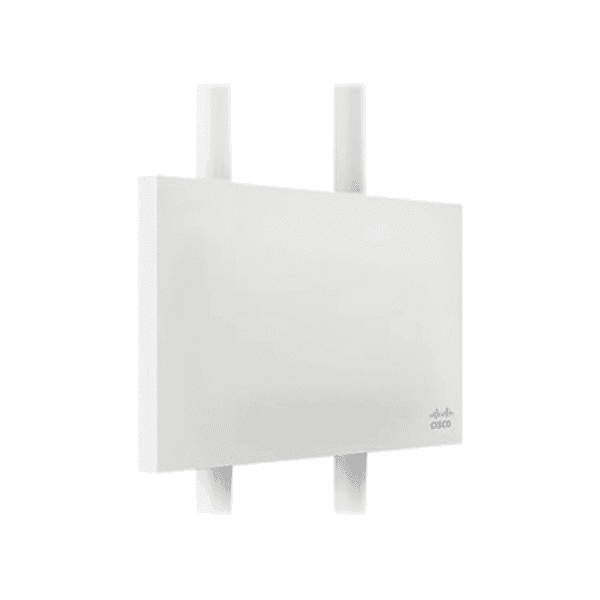

The Cisco Meraki MR84 is a cloud-managed four-radio 4×4 MU-MIMO 802.11ac Wave 2 access point with four radios. The MR84 is designed for high-performance next-generation deployments in high-density environments with challenging RF. It provides performance, enterprise-grade security, and simple cloud-based management. A one-of-a-kind industrial design allows for flexible installation in harsh outdoor or indoor environments. The MR84 has a maximum aggregate frame rate of 2.5 Gbps* with concurrent 2.4 GHz and 5 GHz radios. A third dedicated radio provides real-time WIDS/WIPS with automated RF optimization, and a fourth integrated radio provides Bluetooth Low Energy (BLE) scanning and Beaconing.

Product Highlights

4×4:4 160 MHz MU-MIMO 802.11ac Wave 2

2.5 Gbps* dual-radio aggregate frame rate

24×7 real-time WIDS/WIPS and spectrum analytics via dedicated 3rd radio

Integrated BLE Beacon and scanning radio

Full-time WiFi location tracking via dedicated 3rd radio

Integrated enterprise security and guest access

Application-aware traffic shaping

Optimized for voice and video

Self-configuring, plug-and-play deployment

Flexible omni- and directional antenna options

Sleek, low-profile design blends into indoor and outdoor environments

Specifications

Radios

2.4 GHz 802.11b/g/n client access radio

5 GHz 802.11a/n/ac client access radio

2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio

2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and scanning support

Concurrent operations of all four radios

Supported frequency bands (country-specific restrictions apply):

2.412-2.484 GHz

5.150-5.250 GHz (UNII-1)

5.250-5.350 GHZ (UNII-2)

5.470-5.600, 5.660-5.725 GHz (UNII-2e)

5.725 -5.825 GHz (UNII-3)

802.11ac Wave 2 and 802.11n Capabilities

4 x 4 multiple input, multiple output (MIMO) with four spatial streams

SU-MIMO and MU-MIMO support

Maximal ratio combining (MRC) & beamforming

20 and 40 MHz channels (802.11n), 20, 40, 80, 160, 80 + 80 MHz channels (802.11ac)

Up to 256-QAM on both 2.4 GHz & 5 GHz bands

Packet aggregation

Power

Power over Ethernet: 37 – 57 V (802.3at required with functionality-restricted 802.3af

mode supported)

Power consumption: 21W max (802.3at)

Power over Ethernet injector sold separately

Mounting

Mounts to walls and vertical poles.

Mounting hardware included

Physical Security

Security screw included

Concealed mount plate

Environment

Operating temperature: -40 °F to 131 °F (-40 °C to 55 °C)

Humidity: 5 to 95% non-condensing

IP67 environmental rating

Physical Dimensions

28.6 cm x 17.6 cm x 18.5 cm including mounting bracket

Weight: 3.8 lbs. (1.7 kg)

Interfaces

1x 100/1000/2.5G BASE-T Ethernet & 1x 10/100/1000 BASE-T Ethernet (RJ45)

Four external N-type female antenna connector

Security

Integrated Layer 7 firewall with mobile device policy management

Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal

Flexible guest access with device isolation

VLAN tagging (802.1q) and tunneling with IPsec VPN

PCI compliance reporting

WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X

EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM

TKIP and AES encryption

Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration

Cisco ISE integration for Guest access and BYOD Posturing

Quality of Service

Advanced Power Save (U-APSD)

WMM Access Categories with DSCP and 802.1p support

Layer 7 application traffic identification and shaping

Mobility

PMK, OKC, & 802.11r for fast Layer 2 roaming

Distributed or centralized layer 3 roaming

Analytics

Embedded location analytics reporting and device tracking

Global L7 traffic analytics reporting per network, per device, & per application
