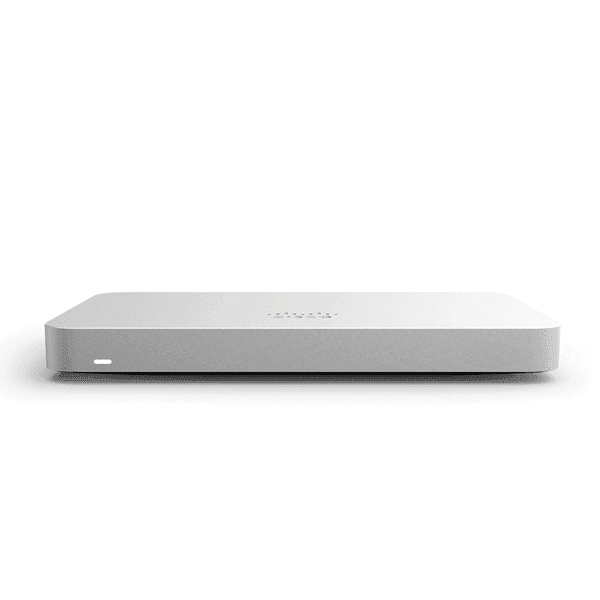

Meraki MX64 and MX65 enterprise security appliances are designed for distributed deployments requiring remote administration. It is ideal for network administrators who require ease of deployment as well as a cutting-edge feature set. The Meraki Dashboard enables simple and easy deployment of the MX64 or MX65 in almost any location with minimal pre-configuration. The MX64 and MX65 are also available in wireless models (MX64W / MX65W) that can provide wireless clients with 802.11ac coverage.

Meraki MX64 and MX65 enterprise security appliances are designed for distributed deployments requiring remote administration. It is ideal for network administrators who require ease of deployment as well as a cutting-edge feature set. The Meraki Dashboard enables simple and easy deployment of the MX64 or MX65 in almost any location with minimal pre-configuration.

The MX64 and MX65 are also available in wireless models (MX64W / MX65W) that can provide wireless clients with 802.11ac coverage.

Features

Managed via Cisco Meraki Dashboard

Automatic Firmware upgrades

WAN Link Balancing

Automatic WAN Failover

SD-WAN over Meraki AutoVPN

L3/L7 Stateful Firewall

Geo-based firewall rules

1:1 and 1:Many NAT

Configurable VLANs / DHCP support

Static Routing

Client VPN endpoint

Meraki AutoVPN and L2TP/IPSec VPN endpoint

Active Directory integration

Content Filtering

Malware Protection (AMP) w/ optional Threat Grid integration

IDS/IPS protection

Custom Traffic Shaping

Historical Client Usage statistics

Netflow support

Syslog integration

Remote Packet Capture tools

Hardware Features

Dual WAN uplinks

Built-in 802.11ac Wireless capability (Wireless models only)

Built-in PoE+ capabilities (MX65 only)

Specification

Model Name/Number: MX65-HW

Brand: Cisco Meraki

Usage/Application: Firewall

Dimension: 10.0″ x 5.2″ x 1″ (256mm x 132mm x 25mm)

Recommended Clients: 50

Stateful Firewall Throughput: 250 Mbps

Advanced Security Throughput: 200 Mbps

Maximum VPN Throughput: 100 Mbps

Maximum Concurrent VPN Tunnels: 50

WAN Interfaces Dedicated: 2 x GbE RJ45, 1 x USB (cellular failover)

Mounting: Desktop or Wall mount

LAN Interfaces Fixed: 10 x GbE RJ45 (2 x PoE+)

Weight: 1.98 lb (0.9 kg)

Power Supply: 90W DC (included)

Power Load: 6W / 72W (idle/max)

Operating Temperature: 32 DegreeF to 104 DegreeF

Humidity: 5% to 95%
