3925E Voice Bundle w/ PVDM3-64,FL-CME-SRST-25, UC License PA

Model:

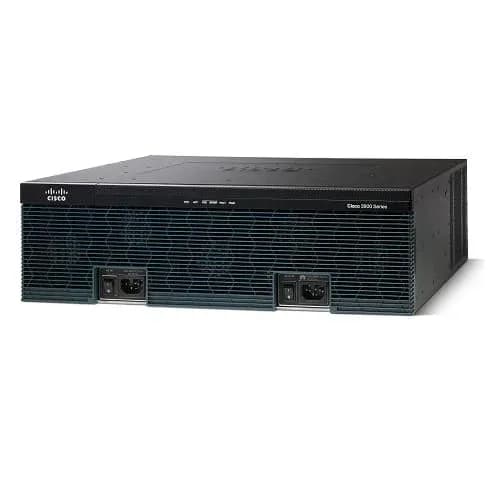

C3925E-CME-SRST/K9 Cisco 3925E Voice Bundle

Brand:

Cisco

C3925E-CME-SRST/K9 Overview

C3925E-CME-SRST/K9 is a Cisco 3925E router bundled with Voice Bundle w/ PVDM3-64, FL-CME-SRST-25, UC License PAK.

When Unified CME is used in SRST mode, it provides more call processing features for the IP phones than those are available with the SRST feature on a router. In addition, to the SRST features such as call preservation, auto-provisioning, and failover, Unified CME in SRST mode also provides most of the Unified CME telephony features for the SCCP phones, including:

Paging

Conferencing

Hunt groups

Basic automatic call distribution (B-ACD)

Call park, call pickup, call pickup groups

Overlay-DN, softkey templates

Cisco IP Communicator

Cisco Unified Video Advantage

Integration with Cisco Unity with MWI support at remote sites, with distributed Microsoft Exchange or IBM Lotus Domino server

Quick Specs

Table 1 shows the Quick Specs of the C3925E-CME-SRST/K9.

Product Code

C3925E-CME-SRST/K9

Bundle

Cisco 3925E Voice Bundle w/ PVDM3-64,FL-CME-SRST-25, UC License PAK

Services Performance Engine module

w/SPE 200

Rack Units

3U

Interfaces

4 integrated 10/100/1000 Ethernet ports with 2 SFP ports

Expansion Slot(s)

2 service module slots

3 onboard digital signal processor (DSP) slots

3 Enhanced High-Speed WAN Interface Card (EHWIC) slots

RAM

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

47.6 cm x 43.8 cm x 13.3 cm

Product Details

Modularity Features

Table 2 shows recommended modules for this router.

Models

Description

C3900-SPE200/K9

Cisco Services Performance Engine 200 for Cisco 3925E ISR

(It’s a configured item in the CISCO3925E/K9.)

SM-ES3G-16-P

Enhanced EtherSwitch Service Module, L2/L3 switching, 16* 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology

SM-ES3G-24-P

Enhanced EtherSwitch Service Module, L2/L3 switching, 24 * 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology

VWIC3-2MFT-G703

Cisco Voice/WAN Card VWIC3-2MFT-G703

HWIC-2T

2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card

EHWIC-1GE-SFP-CU

Cisco 1900, 2900, 3900 Router EHWIC WAN Card EHWIC-1GE-SFP-CU

EHWIC-4ESG

Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers

ISM-SRE-300-K9

Internal Services Module (ISM) with Services Ready Engine

MEM-CF-256U1GB

256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U2GB

256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U512MB

256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR

MEM-CF-256U4GB

256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEMUSB-1024FT

1GB USB Flash Token

Compare to Similar Routers

Table 3 shows the comparison of CISCO3925E/k9 and C3925E-CME-SRST/K9.

Model

CISCO3925E/k9

C3925E-CME-SRST/K9

Bundle

N/A

Cisco 3925E Voice Bundle w/ PVDM3-64,FL-CME-SRST-25, UC License PAK

SPE

w/SPE 200

w/SPE 200

Interface

4GE

4GE

EHWIC slots

3

3

SM slots

2

2

ISM slots

0

0

DSP

3

3

SFP

2

2

Rack Unit

3U

3U

Get more information

C3925E-CME-SRST/K9 Specification

C3925E-CME-SRST/K9 Specification

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

C3925E-CME-SRST/K9

Product Type

Router

Bundle

Cisco 3925E Voice Bundle w/ PVDM3-64,FL-CME-SRST-25, UC License PAK

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

C3925E-CME-SRST/K9

Product Type

Router

Form Factor

Desktop – modular – 3U

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Capacity

Cisco Unified Communications Manager Express sessions : 400

Cisco Unified SRST sessions : 1350

Network / Transport Protocol

IPSec, PPPoE, L2TPv3

Routing Protocol

OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)

Remote Management Protocol

SNMP, RMON

Features

Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN)

Compliant Standards

IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag

DRAM Memory

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

LED Status Lights Indicators

Link activity, power

Communications

Type

Voice / fax module

Digital Ports Qty

64

Protocols & Specifications

ITU G.168

IP Telephony

Voice Codecs

G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726

Connectivity Slots

Router Interfaces

WAN : 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45

Management : 1 x console – RJ-45

Management : 1 x console – mini-USB Type B

Serial : 1 x auxiliary – RJ-45

USB : 2 x 4 pin USB Type A

2 x SFP (mini-GBIC)

Expansion Slot(s)

3 (total) / 3 (free) x EHWIC

3 (total) / 2 (free) x PVDM

2 (total) / 1 (free) x CompactFlash Card

2 (total) / 2 (free) x service module (SM)

Power Supply

Power Device

Power supply – internal

Voltage Required

AC 120/230 V ( 50/60 Hz )

Dimensions / Weight / Miscellaneous

Approximate Width

18.7 in

Depth

17.2 in

Height

5.2 in

Weight

39 lbs

Compliant Standards

CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438, NEBS

System software

Software Included

Cisco IOS Unified Communications, Cisco Unified Communications Manager Express / Cisco Unified Survivable Remote Site Telephony (25 phones)
