Cisco 3925 Voice Bundle, PVDM3-64, UC License PAK

Model:

CISCO3925-V/K9 Cisco 3900 Router Voice Bundle

Brand:

Cisco

CISCO3925-V/K9 Overview

CISCO3925-V/K9 is the Cisco 3925 Router with voice bundle, PVDM3-64, and UC License PAK. The Cisco 3925 router, modular Services Performance Engine (SPE) 100, which can be upgraded for even higher performance as next-generation WAN environments evolve.

Quick Specs

Table 1 shows the Quick Specs.

Product Code

CISCO3925-V/K9

Bundle

Voice bundle, PVDM3-64, and UC License PAK

Services Performance Engine module

w/SPE 100

Rack Units

3U

Interfaces

3 integrated 10/100/1000 Ethernet ports with 2 ports capable of RJ-45 or SFP connectivity

Expansion Slot(s)

2 service module slots

1 Internal Services Module slot

4 onboard digital signal processor (DSP) slots

4 Enhanced High-Speed WAN Interface Card (EHWIC) slots

RAM

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

47.6 cm x 43.8 cm x 13.3 cm

Product Details

Note:

① On/Off switch ② Power connector ③ LEDs area

Note:

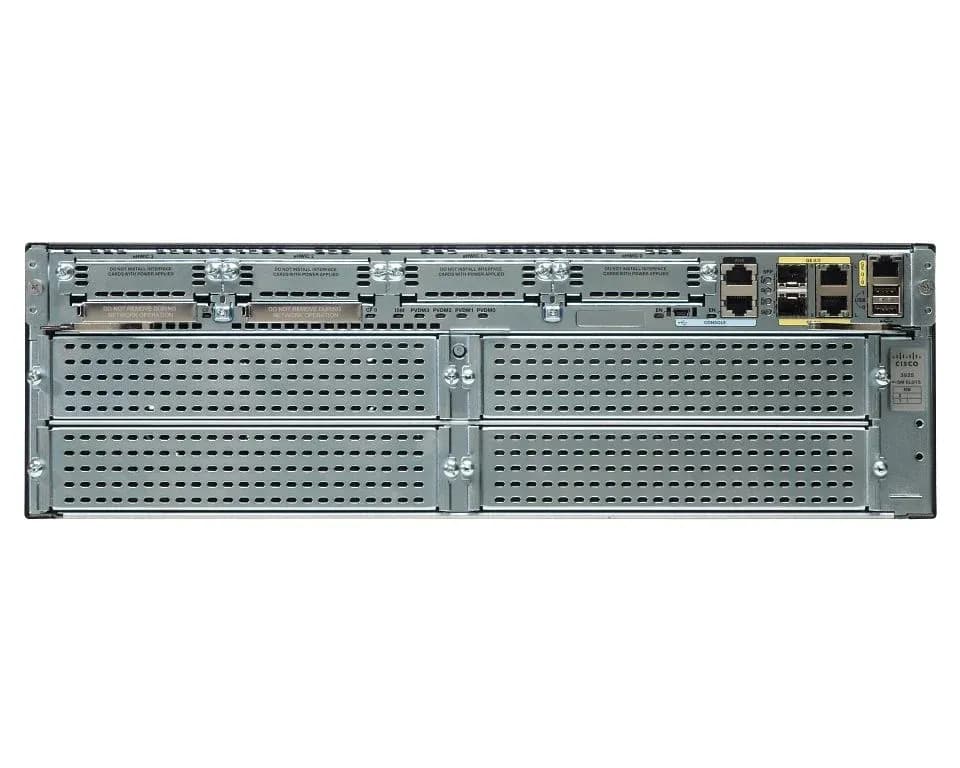

① Compact flash 0 and 1 (0, right) ② EHWIC 0,1,2 and 3 (0, far right) ③ USB serial port ④ RJ-45 serial console port ⑤ AUX port ⑥ SFP 1 and SFP 2 (2, top)

⑦ 10/100/1000 Ethernet port GE 0/1 and GE 0/2 (GE 0/1, down) ⑧ 10/100/1000 Ethernet port GE 0/0 ⑨ USB 0 and USB 1 (1,top) ⑩ Ground  Service module slots

Modules and License

Table 2 shows modules and licenses for this router.

Models

Description

C3900-SPE100/K9

Cisco Services Performance Engine 100 for Cisco 3925 ISR. (It’s a configured item in the CISCO3925/K9.)

SM-ES3G-16-P

Enhanced EtherSwitch Service Module, L2/L3 switching, 16* 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology

SM-ES3G-24-P

Enhanced EtherSwitch Service Module, L2/L3 switching, 24 * 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology

HWIC-2T

2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card

EHWIC-1GE-SFP-CU

Cisco 1900, 2900, 3900 Router EHWIC WAN Card EHWIC-1GE-SFP-CU

EHWIC-4ESG

Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers

ISM-SRE-300-K9

Internal Services Module (ISM) with Services Ready Engine

MEM-CF-256U1GB

256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U2GB

256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U512MB

256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR

MEM-CF-256U4GB

256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEMUSB-1024FT

1GB USB Flash Token

Licenses

Description

L-FL-39-HSEC-K9=

Cisco 3900 License L-FL-39-HSEC-K9 U.S. Export Restriction Compliance license for 3900 series

L-FL-39-SNA=

Cisco 3900 Router License – FL-39-SNA= SNA E-Delivery License for Cisco 3925/3945 for Cisco 3900 Series

L-SL-39-APP-K9=

Cisco Application Experience License ISR 3900 series – includes licenses for: AppX, DATA and WAASX.

L-SL-39-SEC-K9=

Cisco 3900 License L-SL-39-SEC-K9 Security E-Delivery PAK for Cisco 3900 Series

Get more information

CISCO3925-V/K9 Specification

CISCO3925-V/K9 Specification

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

CISCO3925-V/K9

Product Type

Router

Form Factor

Desktop – modular – 3U

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Routing Protocol

OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing

Remote Management Protocol

SNMP, RMON

Features

Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair

Queuing (CBWFQ), Weighted Random Early Detection (WRED)

Compliant Standards

IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag

DRAM Memory

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

LED Status Lights Indicators

Link activity, power

Communications

Type

Voice / fax module

Digital Ports Qty

64

IP Telephony

Voice Codecs

G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726

Connectivity Slots

Router Interfaces

3 x 10Base-T/100Base-TX/1000Base-T – RJ-45

Management : 1 x console – RJ-45

Management : 1 x console – mini-USB Type B

Serial : 1 x auxiliary – RJ-45

USB : 2 x 4 PIN USB Type A

2 x SFP (mini-GBIC)

Expansion Slots Total (Free)

4 ( 4 ) x HWIC

3 ( 2 ) x PVDM

2 ( 1 ) x CompactFlash Card

1 ( 1 ) x Expansion Slot

Power Supply

Power Device

Power supply – internal

Voltage Required

AC 120/230 V ( 50/60 Hz )

Dimensions / Miscellaneous

Width

47.6 cm

Depth

43.8 cm

Height

8.9 cm

Compliant Standards

CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, CAN/CSA-E60065-00, ICES-003 Class A,

CS-03, AS/NZS 3548, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065,

BSMI CNS 13438

System Software

Software Included

Cisco IOS Unified Communications
