Cisco 3945E Voice Bundle, PVDM3-64, UC License PAK

Model:

CISCO3945E-V/K9 Cisco 3945E Voice Bundle

Brand:

Cisco

CISCO3945E-V/K9 Overview

CISCO3945E-V/K9 is the Cisco 3945E router with Voice Bundle, including PVDM3-64, and UC License PAK.

Quick Specs

Table 1 shows the Quick Specs of the CISCO3945E-V/K9.

Product Code

CISCO3945E-V/K9

Bundle

Voice Bundle, PVDM3-64, UC License PAK.

Services Performance Engine module

w/SPE 250

Rack Units

3U

Interfaces

4 integrated 10/100/1000 Ethernet ports with 2 SFP ports

Expansion Slot(s)

4 service module slots

3 Enhanced High-Speed WAN Interface Card slots

3 onboard digital signal processor (DSP) slots

RAM

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

18.7 x 17.2 x 5.7 in

Product Details

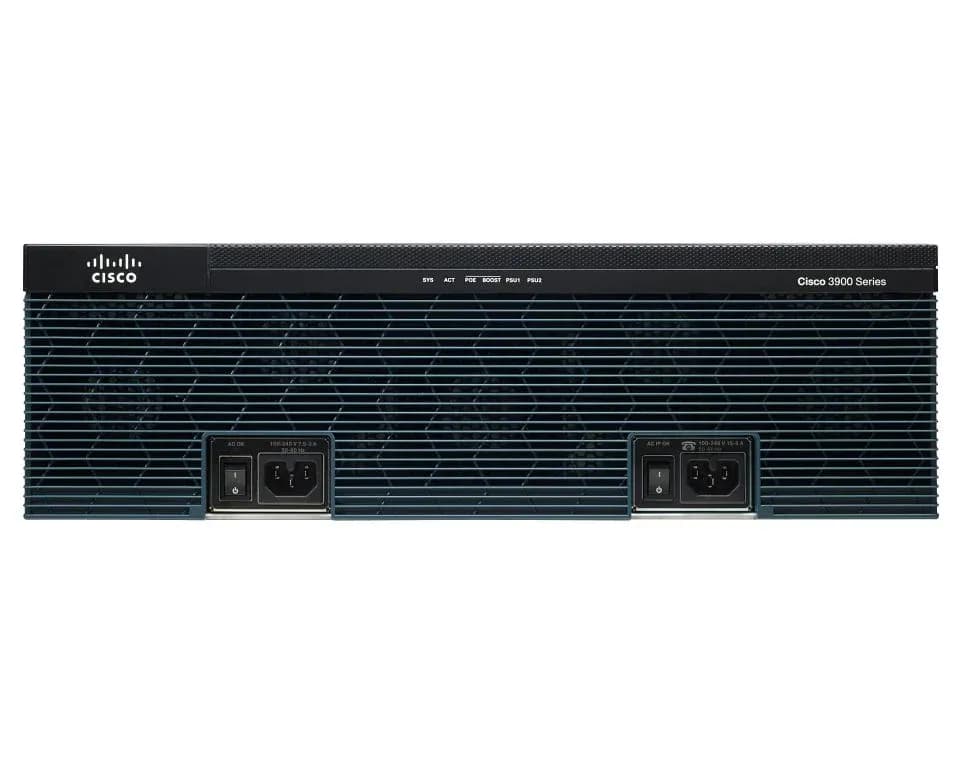

Note:

①

②

③

On/Off switch

Power connector

LEDs area

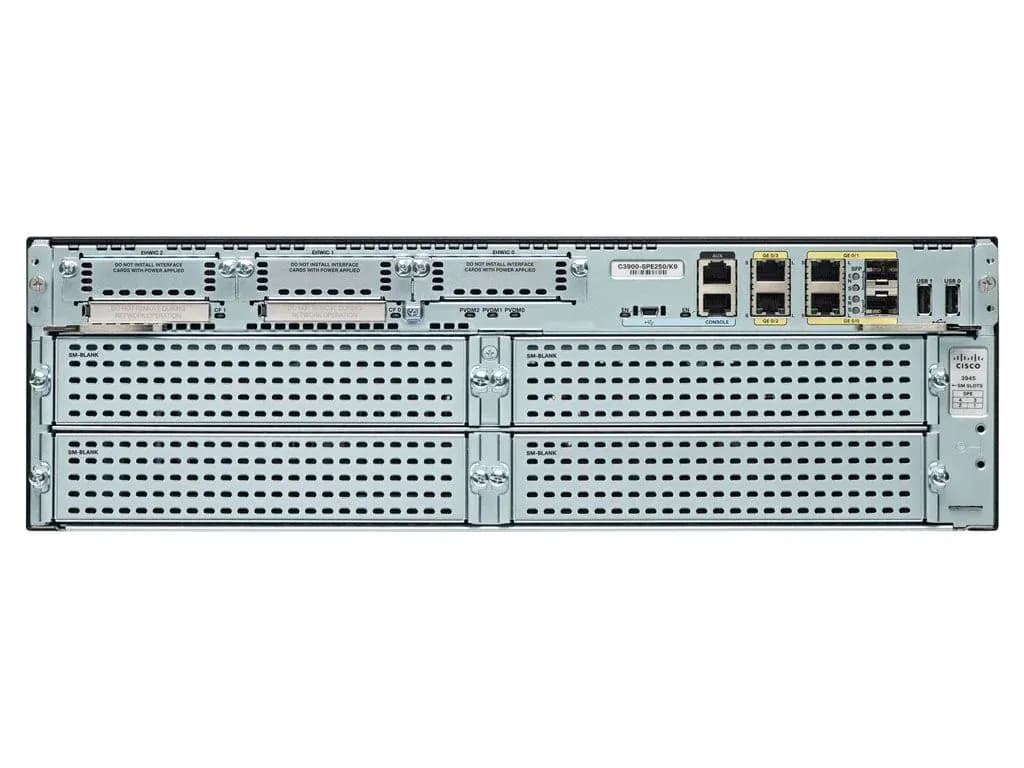

Note:

①

EHWIC 0,1, and 2 (0, far right)

⑦

SFP 1 and SFP 2 (1, Top)

②

USB serial port

⑧

USB 0 and USB 1 (1, Left)

③

AUX port

⑨

Ground

④

RJ-45 serial console port

⑩

Service module slots

⑤

10/100/1000 Ethernet ports (GE 0/3, Top; GE 0/2, Bottom)

Compact flash 0 and 1 (0, right)

⑥

10/100/1000 Ethernet ports (GE 0/1, Top; GE 0/0, Bottom)

Compare to Similar Routers

Table 2 shows the comparison between CISCO3945E/k9 and CISCO3945E-V/k9.

Model

CISCO3945E/k9

CISCO3945E-V/k9

Bundle

N/A

Voice Bundle, PVDM3-64, UC License PAK

SPE

w/SPE 250

w/SPE 250

Interface

4GE

4GE

EHWIC slots

3

3

SM slots

4

4

ISM slots

0

0

DSP

3

3

SFP

2

2

Rack Unit

3U

3U

Get more information

CISCO3945E-V/K9 Specification

CISCO3945E-V/K9 Data Sheet

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

CISCO3945E-V/K9

Product Type

Router

Form Factor

Desktop – modular – 3U

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Capacity

Cisco Unified Communications Manager Express sessions : 450

Cisco Unified SRST sessions : 1500

Network / Transport Protocol

IPSec, PPPoE, L2TPv3

Routing Protocol

OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)

Remote Management Protocol

SNMP, RMON

Features

Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN)

Compliant Standards

IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag

DRAM Memory

1 GB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

LED Status Lights Indicators

Link activity, power

Communications

Type

Voice / fax module

Digital Ports Qty

64

Protocols & Specifications

ITU G.168

IP Telephony

Voice Codecs

G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726

Connectivity Slots

Router Interfaces

WAN : 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45

Management : 1 x console – RJ-45

Management : 1 x console – mini-USB Type B

Serial : 1 x auxiliary – RJ-45

USB : 2 x 4 pin USB Type A

2 x SFP (mini-GBIC)

Expansion Slot(s)

3 (total) / 3 (free) x EHWIC

3 (total) / 2 (free) x PVDM

2 (total) / 1 (free) x CompactFlash Card

4 (total) / 4 (free) x service module (SM)

Power Supply

Power Device

Power supply – internal

Voltage Required

AC 120/230 V ( 50/60 Hz )

Dimensions / Weight / Miscellaneous

Approximate Width

18.7 in

Depth

17.2 in

Height

5.2 in

Weight

39 lbs

Compliant Standards

CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438, NEBS

System software

Software Included

Cisco IOS Unified Communications
