Cisco ISR 4331 Bundle with UC & Sec Lic. PVDM4-32. CUBE-10

Model:

ISR4331-VSEC/K9 – Cisco Router 4000 Series

Brand:

Cisco

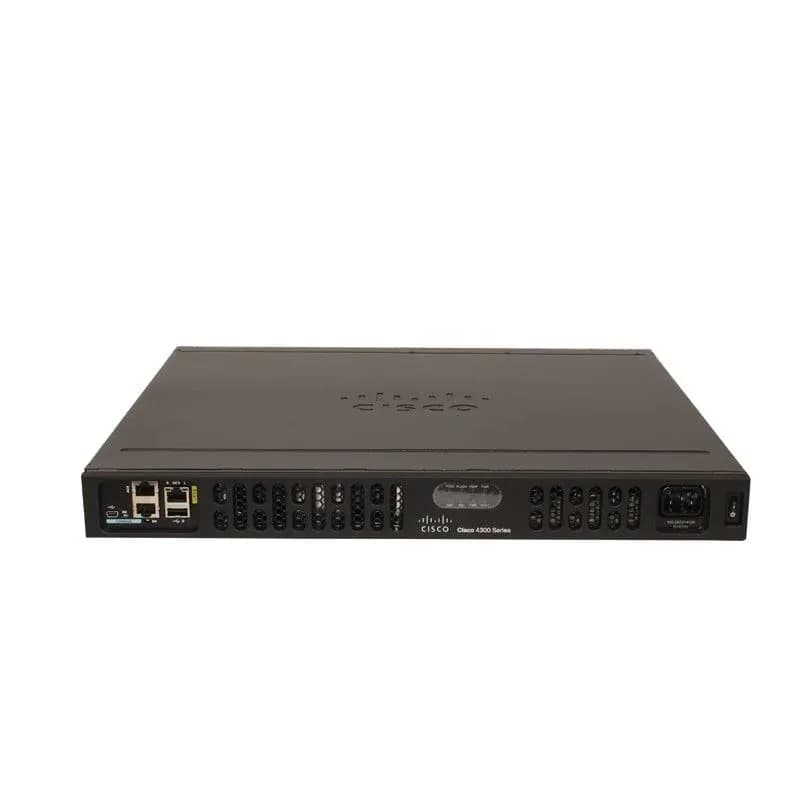

ISR4331-VSEC/K9 Overview

Cisco 4331 Integrated Services Router delivers 100 Mbps to 300 Mbps aggregate throughput and offers one Enhanced service-module (SM-X) slot, which supports for both single- and double-wide service modules provides flexibility in deployment options. ISR4331-VSEC/K9 is the Cisco ISR 4331 router bundled with UC & Sec Lic. PVDM4-32 and CUBE-10.

Quick Specs

Table 1 shows the Quick Specs.

Product Code

ISR4331-VSEC/K9

Aggregate Throughput

100 Mbps to 300 Mbps

Total onboard WAN or LAN 10/100/1000 ports

3

RJ-45-based ports

2

SFP-based ports

2

Enhanced service-module (SM-X) slot

1

NIM (Network Interface Modules) slots

2

Onboard ISC slot

1

Memory

4 GB (default) / 16 GB (maximum)

Flash Memory

4 GB (default) / 16 GB (maximum)

Power-supply options

Internal: AC and PoE

Rack height

1 RU

Dimensions (H x W x D)

44.45 x 438.15 x 438.15 mm

Package Weight

12.96 Kg

Product Details

Note:

①

USB Type B mini port

⑤

Management port

②

Serial console port

⑥

LEDs

③

USB Type A port

⑦

AC Power

④

AUX Port

⑧

Power switch

The LEDs include eight indicators.

Table 2. Voice Security Bundle Features Table.

Authentication and

Encryption Features

• Media encryption of voice RTP streams using SRTP

• Exchange of RTP Control Protocol (RTCP) information using secure RTCP

• SRTP to RTP fallback for calls between secure and insecure endpoints

• Secure calls supported in Cisco Unified Survivable Remote Site Telephony (SRST) mode during WAN failover

• Compressed RTP (CRTP) supported with media encrypted calls using SRTP

Authentication and

Encryption Algorithm

• Supports AES-128 encryption algorithm

• Supports the HMAC secure hash authentication algorithm (SHA 1)

Signaling Authentication and Encryption Features

• Gateway to Cisco Unified Communications Manager signaling and encryption uses IPSec for Media Gateway Control Protocol (MGCP), H.323 and SIP gateways

• IP phone to Cisco Unified Survivable Remote Site Telephony router signaling and encryption uses TLS

(Transport Layer Security)

Protocol Support

• MGCP 0.1 (supports MGCP gateways with Cisco Unified Communications Manager)

• H.323 (supported on H.323 gateways and CUBE; Cisco Unified Communications Manager interoperability is optional)

• Session Initiation Protocol (SIP)

• SCCP (Cisco Unified IP Phone) in SRST mode

Module Support

• Any module that has PVDM2, PVDM3 and/or built-in DSP

Codec Support

• G.711, G.729A, and G.729

Note:

①

RJ45 Ports

③

NIM Slots

②

SFP Ports

④

SM-X Slot

·① & ② : These four ports include one combo port, one RJ45 port and one SFP port. It means the RJ45 and SFP in the combo port can’t be used at the same time.

·NIM slots support one double-wide or two signal-wide modules.

·An SM-X slot can be converted into a Network Interface Module (NIM) slot using an optional carrier card.

The Modules, Cards, Licenses & Accessories

Table 3 shows some recommended modules, cards, licenses and accessories of Cisco ISR4331-VSEC/K9.

Items

Models

Descriptions

Console and Auxillary Cables

CAB-AUX-RJ45

Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M

CAB-ETH-S-RJ45

Cisco Router Cable CAB-ETH-S-RJ45

CAB-CONSOLE-RJ45

Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F

CAB-CONSOLE-USB

Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B

Licenses

L-SL-4330-APP-K9=

Cisco AppX license L-SL-4330-APP-K9= with 750 conns/ISRWAAS or 1300 conns/vWAAS for ISR4331

Network Interface Modules

NIM-1MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

NIM-2CE1T1-PRI

Cisco Multiflex Trunk Voice and WAN network interface module

NIM-4E/M

Analog voice network interface card (ear and mouth)

NIM-2FXS

Cisco Analog voice network interface card NIM-2FXS

NIM-2FXS/4FXO

Cisco Analog voice network interface card NIM-2FXS/4FXO

NIM-8MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

SFPs for On-Board GE Ports

GLC-SX-MMD

Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

GLC-LH-SMD

Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM

GLC-ZX-SMD

Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

Compare to Similar Items

Table 4 shows the comparison chart.

Models

ISR4331-VSEC/K9

ISR4331/K9

Description

Cisco ISR 4331 Bundle with UC & Sec Lic. PVDM4-32. CUBE-10

Cisco ISR 4331 (2GE,2NIM,1SM,4G FLASH,4G DRAM,IP Base)

Aggregate Throughput

100 Mbps to 300 Mbps

100 Mbps to 300 Mbps

Total onboard WAN or

LAN 10/100/1000 ports

3

3

RJ-45-based ports

2

2

SFP-based ports

2

2

Enhanced service-module slots

1

1

NIM slots

2

2

Onboard ISC slot

1

1

Rack height

1

1

Get more information

ISR4331-VSEC/K9 Specification

ISR4331-VSEC/K9 Specification

Description

Cisco ISR 4331 Bundle with UC & Sec Lic. PVDM4-32. CUBE-10s

Aggregate Throughput

100 Mbps to 300 Mbps

Total onboard WAN or LAN 10/100/1000 ports

3

RJ-45-based ports

2

SFP-based ports

2

Enhanced service-module slots

1

Doublewide service-module slots

0

NIM slots

2

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

4 GB

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)

16 GB

Default memory DDR3 ECC DRAM (data plane)

NA

Maximum memory DDR3 ECC DRAM (data plane)

NA

Default memory DDR3 ECC DRAM (control/services plane)

NA

Maximum memory DDR3 ECC DRAM (control/services plane)

NA

Default flash memory

4 GB

Maximum flash memory

16 GB

External USB 2.0 slots (type A)

1

USB console port -type B mini (up to 115.2 kbps)

1

Serial console port – RJ45 (up to 115.2 kbps)

1

Serial auxiliary port – RJ45

(up to 115.2 kbps)

1

Power-supply options

Internal: AC and PoE

Redundant power supply

N/A

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

3 to 1.3A

AC input surge current

60 A peak and less than 5 Arms per half cycle

Typical power (no modules) (watts)

42

Maximum power with AC power supply (watts)

250

Maximum power with PoE power supply (platform only) (watts)

530

Maximum endpoint PoE power available from PoE power supply (watts)

250
