500Mbps-1Gbps system throughput, 4 WAN/LAN ports, 4 SFP ports, multi-Core CPU, Dual-power, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC, separate control data and services CPUs

Model:

Cisco ISR 4431 Security router (2GE,2NIM,1SM,4G FLASH,4G DRAM,Advanced Security)

Brand:

Cisco

ISR4431-SEC/K9 Overview

Cisco ISR4431-SEC/K9 is the Cisco ISR4431/k9 router with Security Bundle. Its other specifications are the same as ISR4431/k9.

Quick Specs

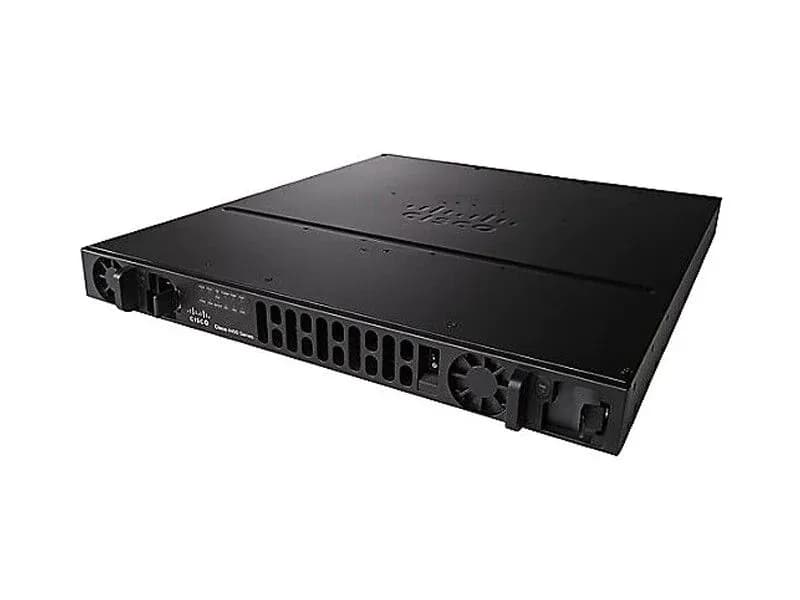

Figure 1 shows the appearance of Cisco ISR4431-SEC/K9.

Table 1 shows the Quick Specs.

Product Code

Cisco ISR4431-SEC/K9

Bundle

Security Bundle

Aggregate Throughput

500 Mbps to 1 Gbps

Total onboard WAN or LAN 10/100/1000 ports

4

RJ-45-based ports

4

SFP-based ports

4

Enhanced service-module (SM-X) slot

0

NIM (Network Interface Modules) slots

3

Onboard ISC slot

1

DDRM (data plane)

2 GB (default) / 2 GB (maximum)

DDRM (control/services plane)

4 GB (default) / 16 GB (maximum)

Flash Memory

8 GB (default) / 32 GB (maximum)

Power-supply options

Internal: AC, DC, and PoE

Rack height

1 RU

Dimensions (H x W x D)

43.9 x 438.15 x 507.2 mm

Package Weight

20.88 Kg

Product Details

Figure 2 shows the front panel of Cisco ISR4431-SEC/K9.

Note:

①

Power supply unit

③

Router power On/Off switch

②

LEDs

④

Optional power supply unit

· LEDs include 12 indicators: PSU0, PSU1, GE/POE, FLASH, TEMP, PWR, POE0, POE1, BOOST, ISC, FAN, and STAT.

Figure 3 shows the back panel of Cisco ISR4431-SEC/K9.

Note:

①

GE management port

⑤

Console port

②

Auxiliary port

⑥

GE Ports

③

USB Type A port

⑦

NIM Slots

④

USB Type B mini port

· The NIMs support 2 single-wide or 1 double-wide.

· The GE Ports include 4 RJ45 ports and 4 SFP ports.

Figure 4 shows the Security Bundle Functions.

The Modules, Cards and Accessories

Table 2 shows some recommended modules, cards and accessories of Cisco ISR4431-SEC/K9.

Items

Models

Descriptions

Console and Auxillary Cables

CAB-AUX-RJ45

Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M

CAB-ETH-S-RJ45

Cisco Router Cable CAB-ETH-S-RJ45

CAB-CONSOLE-RJ45

Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F

CAB-CONSOLE-USB

Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B

Network Interface Modules

NIM-1MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

NIM-2CE1T1-PRI

Cisco Multiflex Trunk Voice and WAN network interface module

NIM-4E/M

Analog voice network interface card (ear and mouth)

NIM-2FXS

Cisco Analog voice network interface card NIM-2FXS

NIM-2FXS/4FXO

Cisco Analog voice network interface card NIM-2FXS/4FXO

NIM-8MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

SFPs for On-Board GE Ports

GLC-SX-MMD

Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

GLC-LH-SMD

Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM

GLC-ZX-SMD

Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

Compare to Similar Items

Table 3 shows the comparison between tow similar items.

Models

ISR4431/K9

ISR4431-SEC/K9

Bundle

None

Security Bundle

Aggregate Throughput

500 Mbps to 1 Gbps

500 Mbps to 1 Gbps

Total onboard WAN or

LAN 10/100/1000 ports

4

4

RJ-45-based ports

4

4

SFP-based ports

4

4

Enhanced service-module slots

0

0

NIM slots

3

3

Onboard ISC slot

1

1

Rack height

1

1
