Cisco 2901 Security Bundle w/SEC license PAK

Model:

CISCO2901-SEC/K9 Cisco 2901 Security Bundle Router ISR G2

Brand:

Cisco

CISCO2901-SEC/K9 Overview

Cisco 2901 Integrated Services Router (ISR) delivers highly secure data, voice, video, and application services for small offices. CISCO2901-SEC/K9 is almost the same as CISCO2901/K9, except that it offers Security bundle.

Table 1 shows the Quick Specs of the CISCO2901-SEC/K9.

Product Code

CISCO2901-SEC/K9

Bundle

Security Bundle w/SEC license PAK

Rack Units

1U

Interfaces

2 integrated 10/100/1000 Ethernet ports

Expansion Slot(s)

2 onboard digital signal processor (DSP) slots

4 enhanced high-speed WAN interface card slots

1 onboard Internal Service Module for application services

RAM

512 MB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

43.9 cm x 43.8 cm x 4.5 cm

Package Weight

11.48 Kg

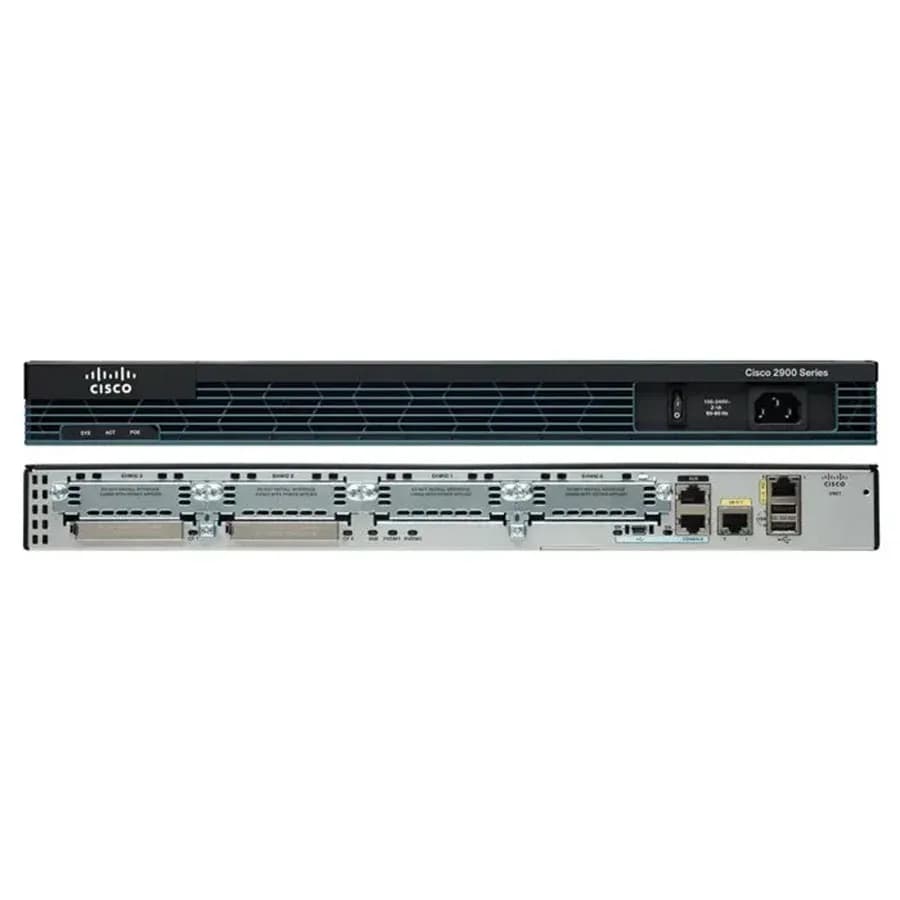

Product Details

Note:

? EHWIC slots  0, 1, 2, and 3 (0, Far right)                                          ? CompactFlash 0 and 1

? Aux port                                                                                                   ? USB serial port

? 10/100/1000 Ethernet port (GE0/0)                                                   ? RJ-45 serial console port

? Ground                                                                                                    ? 10/100/1000 Ethernet ports (GE0/1)

? CompactFlash 0 and 1                                                                         ? USB0 and USB1 (1, Top)

Note:

? CompactFlash 0 and 1 (0, Right)                           ? EN (Enable RJ-45 console)

? ISM                                                                               ? S (Speed)

? PVDM3 0 and 1 (0, Right)                                        ? L (Link)

? EN (Enable USB console)

The Modules and Cards

Table 2 shows some recommended modules and cards for this router.

Models

Description

VWIC3-2MFT-G703

Cisco Voice/WAN Card VWIC3-2MFT-G703

HWIC-2T

2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card

EHWIC-1GE-SFP-CU

Cisco 1900, 2900, 3900 Router EHWIC WAN Card vb

EHWIC-1GE-SFP-CU

EHWIC-4ESG

Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers

ISM-SRE-300-K9

Internal Services Module (ISM) with Services Ready Engine

PVDM3-16

16-channel high-density voice DSP module

MEM-CF-256U1GB

256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U2GB

256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U512MB

256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR

MEM-CF-256U4GB

256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEMUSB-1024FT

1GB USB Flash Token
