Cisco 2901 Voice Bundle, PVDM3-16, UC License PAK

Model:

CISCO2901-V/K9 Cisco Router ISR G2 Voice Bundle

Brand:

Cisco

CISCO2901-V/K9 Overview

The Cisco 2901 router, supporting voice module, is designed for small offices. CISCO2901-V/K9 bundles Voice bundle, the PVDM3-16 and UC License PAK.

Table 1 shows the Quick Specs of the CISCO2901-V/k9.

Product Code

CISCO2901/k9

Bundle

Voice Bundle

Rack Units

1U

Interfaces

2 integrated 10/100/1000 Ethernet ports

Expansion Slot(s)

2 onboard digital signal processor (DSP) slots

4 enhanced high-speed WAN interface card slots

1 onboard Internal Service Module for application services

RAM

512 MB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

43.9 cm x 43.8 cm x 4.5 cm

Package Weight

11.69 Kg

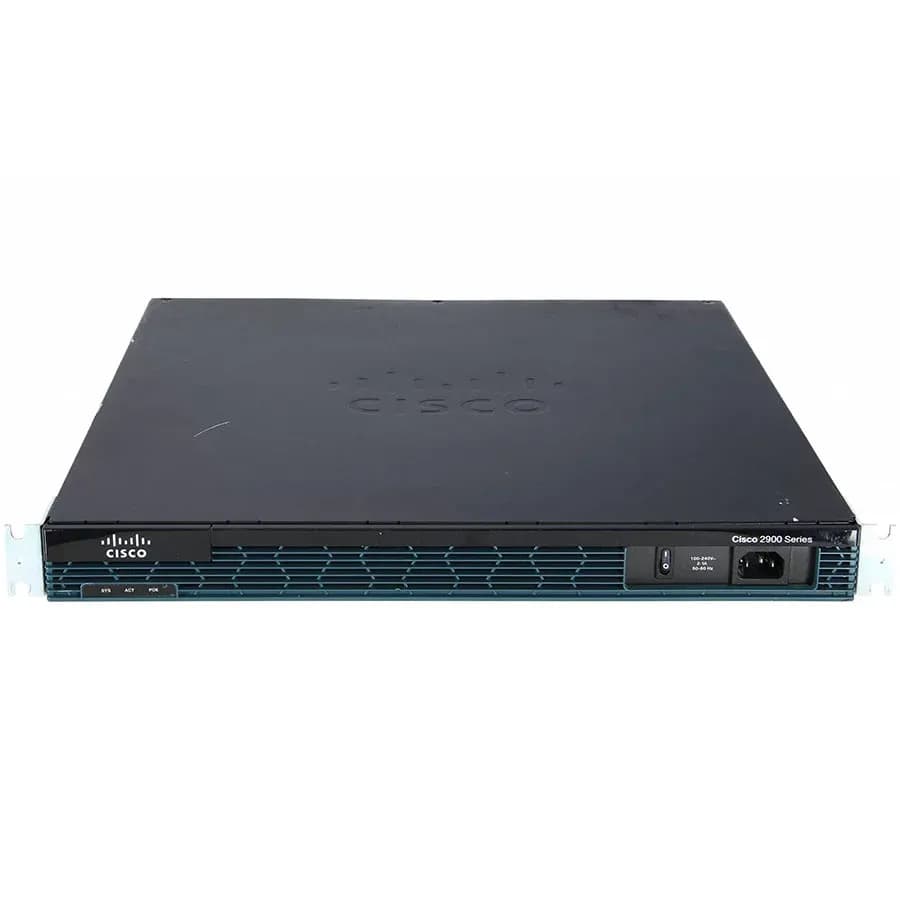

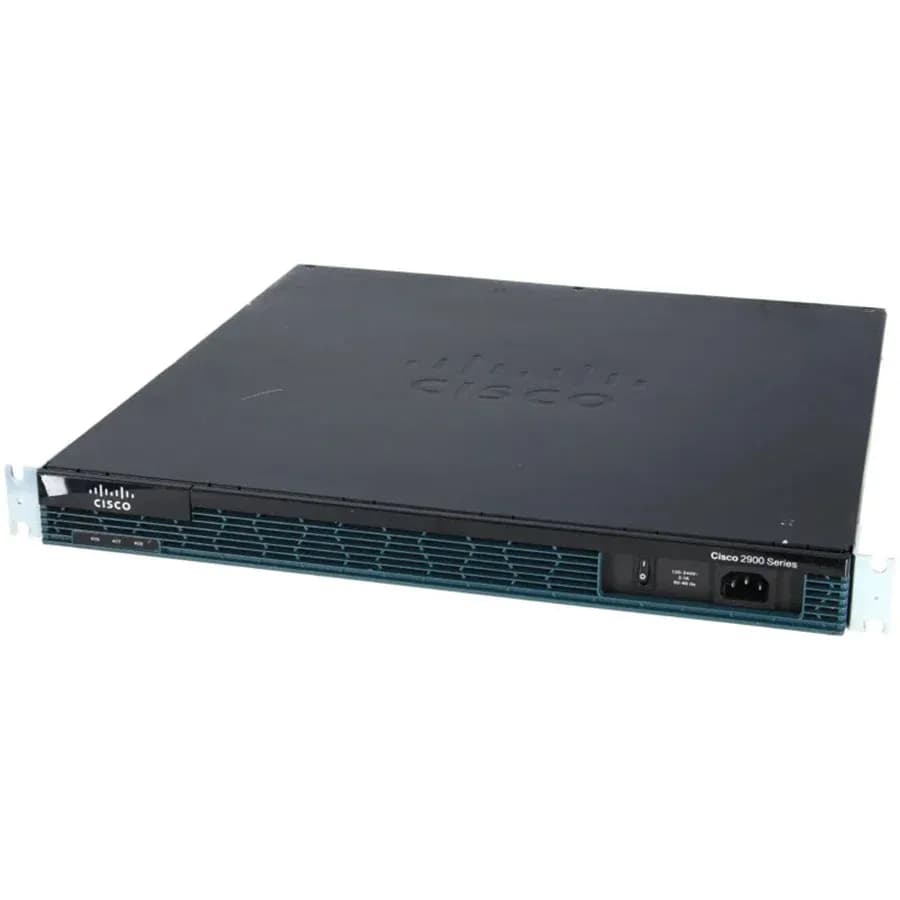

Note:

?

SYS

?

On/Off switch

?

ACT

?

AC power connector

?

POE

Table 2 shows the LEDs area description

LED

Color

Description

SYS

Solid green

Solid green indicates normal operation.

Blinking green

System is booting or is in ROM monitor mode.

Amber

System error.

Off

Power is off or system board is faulty.

ACT

Green

Solid or blinking indicates packet activity between the forwarding and routing engine and any I/O port.

Off

No packet transfers are occurring.

PoE

Green

PoE is available.

Amber

Power supply is not supplying PoE power.

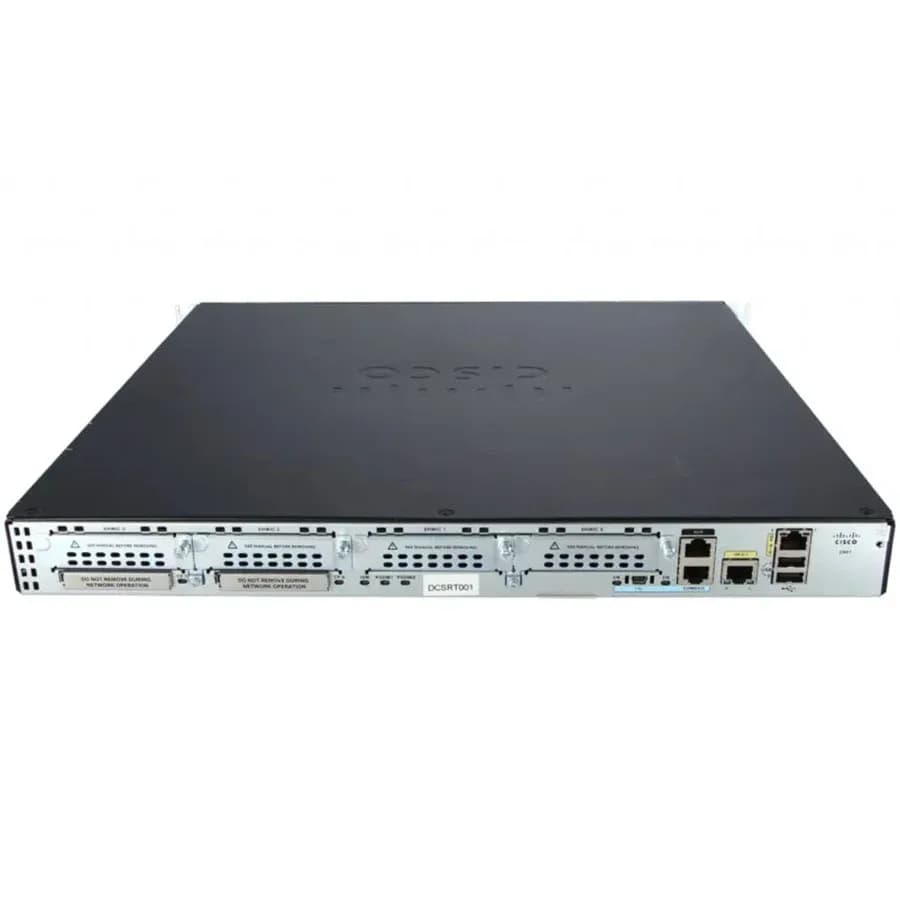

Note:

?

EHWIC 0,1,2 and 3 (0, far right)

?

USB 0 and 1 (1, top)

?

Compact flash 0 and 1

?

AUX

?

USB serial port

?

10/100/1000 Ethernet port (GE 0/0)

?

RJ-45 serial console port

?

Ground

?

10/100/1000 Ethernet port (GE 0/1)

Modularity Features

Table 3 shows some recommended models for this router.

Models

Description

HWIC-2T

2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card

EHWIC-1GE-SFP-CU

Cisco 1900, 2900, 3900 Router EHWIC WAN Card vb EHWIC-1GE-SFP-CU

EHWIC-4ESG

Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers

ISM-SRE-300-K9

Internal Services Module (ISM) with Services Ready Engine

MEM-CF-256U1GB

256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U2GB

256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U512MB

256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR

MEM-CF-256U4GB

256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEMUSB-1024FT

1GB USB Flash Token

Compare to Similar Routers

Table 5 shows the comparison between CISCO2901/K9 and CISCO2901-V/K9.

Model

CISCO2901/K9

CISCO2901-V/K9

Bundle

None

Voice Bundle

Interface

2GE

2GE

EHWIC slot

4

4

SIM Slot

0

0

SFP

0

0

Memory

512MB

(installed) / 2 GB (max)

512MB

(installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

256 MB (installed) / 8 GB (max)

Rack Unit

1U

1U
