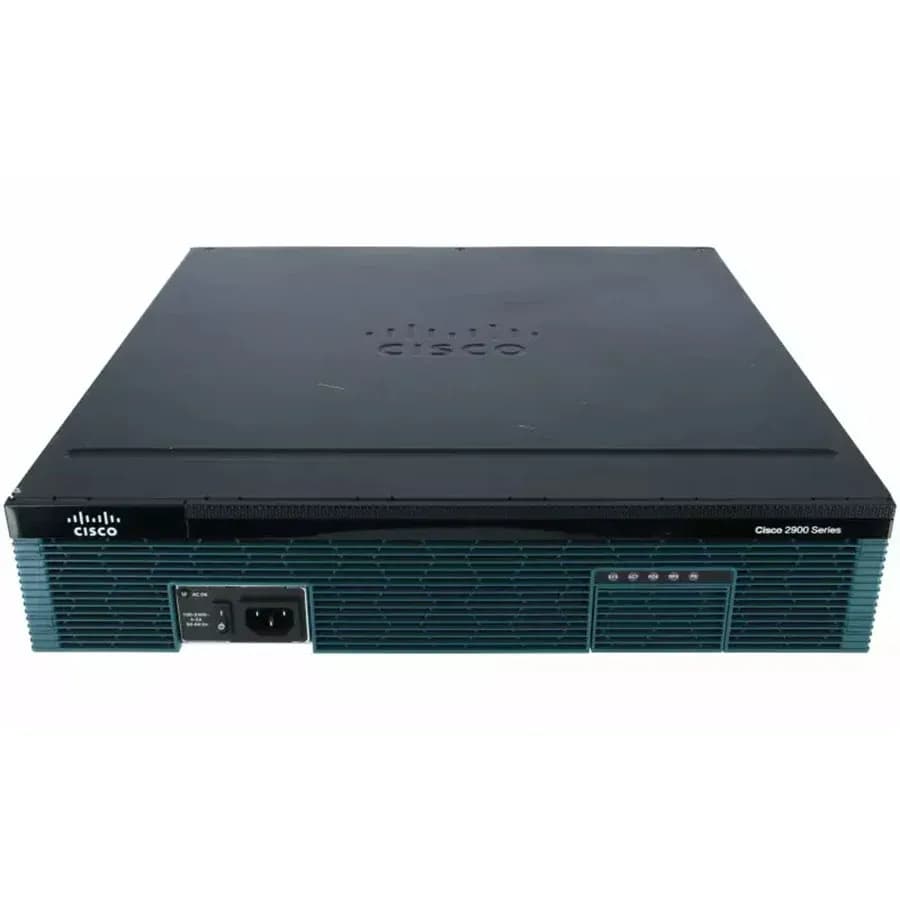

Cisco 2951 with 3 onboard GE, 4 EHWIC slots, 3 DSP slots, 1 ISM slot, 256MB CF default, 512MB DRAM default, IP Base

Model:

CISCO2951-SEC/K9 Cisco 2951 Security Bundle Router ISR G2

Brand:

Cisco

CISCO2951-SEC/K9 Overview

Cisco 2951 Integrated Services Router (ISR) delivers highly secure data, voice, video, and application services for small offices. CISCO2951-SEC/K9 is almost the same as CISCO2951/K9, except that it offers Security bundle.

Table 1 shows the Quick Specs of the CISCO2951-SEC/K9.

Product Code

CISCO2951-SEC/k9

Bundle

Security Bundle w/SEC license PAK

Rack Units

2U

Interfaces

3 integrated 10/100/1000 Ethernet ports with 1 port capable of RJ-45 or SFP connectivity

Expansion Slot(s)

2 service module slot

1 Internal Service Module slot

3 onboard digital signal processor slots

4 Enhanced high-speed WAN interface card (EHWIC) slots

RAM

512 MB (installed) / 2 GB (max) – DDR2 SDDRAM Memory

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

47 cm x 43.8 cm x 8.9 cm

Package Weight

17.82 Kg

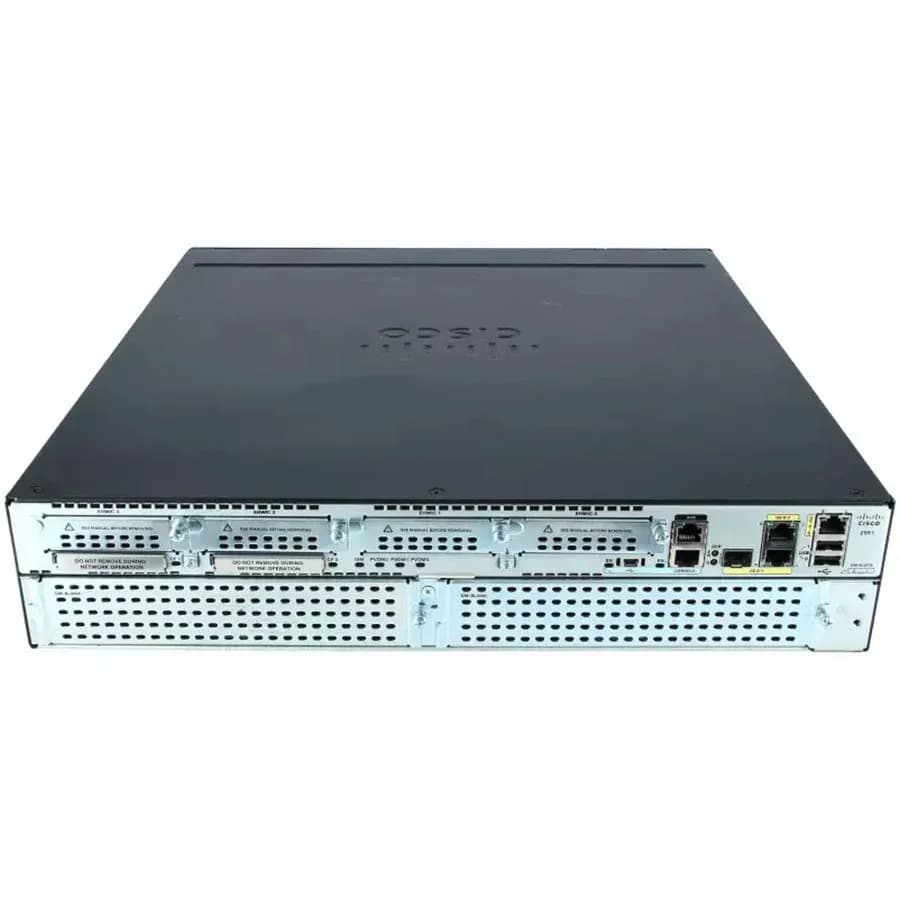

Note:

?

EHWIC slots 0,1,2, and 3 (0, Far right)

?

CompactFlash 0 and 1 (0, Right)

?

USB serial console port

?

Service module slots SM1 and SM2 (1, Right on 2951), (1, left on 2921)

?

AUX port

?

RJ-45 serial console port

?

SFP

?

USB0 and USB1 (1, Top)

?

10/100/1000 Ethernet ports (GE 0/1 and GE 0/2 (GE 0/2, Top)

?

Ground

?

10/100/1000 Ethernet port GE 0/0

Note:

?

CompactFlash 0 and 1 (0, Right)

?

SFP S

?

ISM

?

SFP EN

?

PVDM3 0,1, and 2 (0, Right)

?

S (Speed)

?

EN (Enable USB console)

?

L (Link)

?

EN (Enable RJ-45 console)

The Modules and Cards

Table 2 shows some recommended modules and cards for this router.

Models

Description

SM-ES3G-16-P

Enhanced EtherSwitch Service Module, L2/L3 switching, 16* 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology

SM-ES3G-24-P

Enhanced EtherSwitch Service Module, L2/L3 switching, 24 * 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology

VWIC3-2MFT-G703

Cisco Voice/WAN Card VWIC3-2MFT-G703

HWIC-2T

2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card

EHWIC-1GE-SFP-CU

Cisco 1900, 2900, 3900 Router EHWIC WAN Card EHWIC-1GE-SFP-CU

EHWIC-4ESG

Four port 10/100/1000 Base-TXGigabit Ethernet switch interface card for Cisco1900 2900 3900Routers

ISM-SRE-300-K9

Internal Services Module (ISM) with Services Ready Engine

PVDM3-16

16-channel high-density voice DSP module

MEM-CF-256U1GB

256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U2GB

256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U512MB

256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR

MEM-CF-256U4GB

256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEMUSB-1024FT

1GB USB Flash Token

Compare to Similar Items

Table 3 shows the comparison between CISCO2951-SEC/K9 and CISCO2951/K9.

Model

CISCO2951-SEC/K9

CISCO2951/K9

Interfaces

3 integrated 10/100/1000 Ethernet ports with 1 port capable of RJ-45 or SFP connectivity

3 integrated 10/100/1000 Ethernet ports with 1 port capable of RJ-45 or SFP connectivity

Memory

512 MB (installed) / 2 GB (max) – DDR2 SDDRAM Memory

512 MB (installed) / 2 GB (max) – DDR2 SDDRAM Memory

Flash

256 MB (installed) / 8 GB (max)

256 MB (installed) / 8 GB (max)

Bundle

Security Bundle w/SEC license PAK

None
