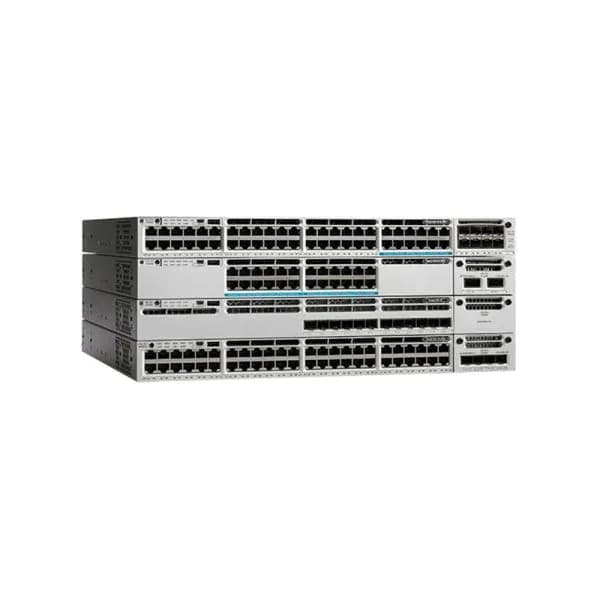

Cisco ONE Catalyst 3850 48 Port (12mGig+36Gig) UPoE LAN Base

Model:

C1-WSC3850-12X48UL – Cisco ONE Catalyst 3850 Series Platform

Brand:

Cisco

C1-WSC3850-12X48UL Overview

The Cisco ONE Catalyst 3850 48 Port (12mGig+36Gig) UPoE LAN Base, model C1-WSC3850-12X48UL, provides robust networking capabilities with its blend of 12 multigigabit ports and 36 gigabit ports, all backed by Cisco’s advanced Unified Power over Ethernet (UPoE) technology. This switch is designed to offer seamless connectivity, high security, and efficient power management for diverse networking environments.

Quick Spec

Brand

Cisco

Model

C1-WSC3850-12X48UL

Ports

48 (12mGig+36Gig)

Technology

UPoE

Series

ONE Catalyst 3850

Product Features

Advanced UPoE technology for powering devices through Ethernet cables.

Integration with Cisco ONE Software for lifecycle management.

48-port configuration including 12 multigigabit and 36 gigabit ports.

Built-in security features including MACsec.

Flexible deployment options with stackable architecture.

Product Applications

Enterprise Networks: Ideal for providing high-speed connectivity and power to an array of office devices including phones, cameras, and access points.

Educational Institutions: Supports high-density environments such as campus networks with extensive connectivity and power requirements.

Healthcare Facilities: Ensures reliable networking for critical healthcare applications with robust security and power management features.

Supported Options

Accessory

Model

Cisco StackPower Cable

STACK-T1-50CM

Cisco Catalyst 3850 Fan Module

FAN-T1

Cisco Network Module

C3850-NM-4-1G

Compare to Similar Items

Model

Differences

C1-WSC3850-24P

24 ports, only PoE, not UPoE

WS-C4500X-32:

Includes 32 ports with different power capabilities

WS-C2960XR-48TS-I:

Low cost with standard PoE and fewer advanced features

C1-WSC3850-12X48UL Specification

C1-WSC3850-12X48UL Specifications

Brand

Cisco

Model Number

C1-WSC3850-12X48UL

Product Type

Ethernet Switch

Ports

48

Port Type

12 mGig + 36 Gig

Uplink Interface

None

Network Management

LAN Base

Power over Ethernet (PoE)

UPoE

Forwarding Rate

68.45 Mpps

Switching Capacity

176 Gbps

MAC Address Table Size

32,000 entries

Flash Memory

4 GB

DRAM

4 GB

Mounting Type

Rack-mountable

Layer Support

Layer 2/Layer 3

Dimensions

44.5 x 44.8 x 4.45 cm

Operating Temperature

0 to 45??C

Storage Temperature

-40 to 70??C

Power Input

100-240V AC

Cooling

Fan-based

Warranty

Limited Lifetime
