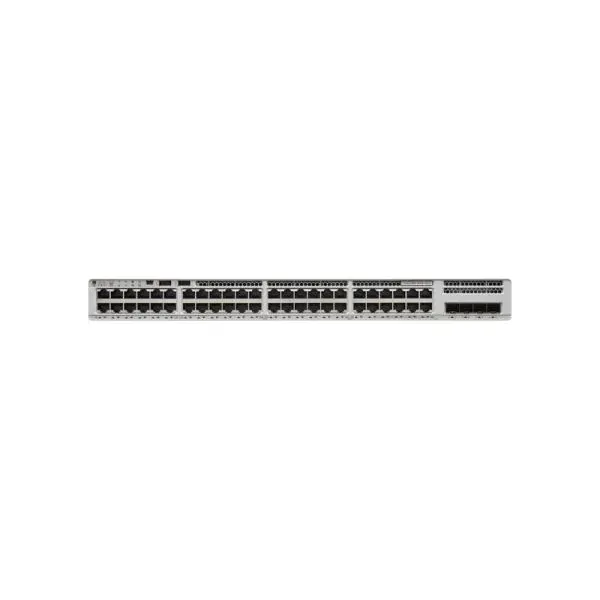

Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Advantage

Model:

C9200L-48P-4X-A – Cisco Switch Catalyst 9200

Brand:

Cisco

C9200L-48P-4X-A Overview

C9200L-48P-4X-A is the Catalyst 9200L48 ports full PoE+ 4x10G uplink Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise C it is secure, always on, and IT simplified.

Quick Spec

Table 1 shows the quick spec.

Model

C9200L-48P-4X-A

Downlinks total 10/100/1000 or PoE+ copper ports

48 ports full PoE+

Uplink configuration

4x 10G fixed uplinks

Default primary AC power supply

PWR-C5-1KWAC

Fans

Fixed redundant

Software

Network Advantage

Stacking bandwidth

80 Gbps

DRAM

2 GB

Flash

4 GB

Switching capacity

176 Gbps

Forwarding rate

261.9 Mpps

Chassis Dimensions

1.73 x 17.5 x 11.3 in

4.4 x 44.5 x 28.8 cm

Product Details

Catalyst 9200 series provides these highlights:

Up to 48 ports of full Power over Ethernet Plus (PoE+) capability

Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks

Flexible downlink options with data or PoE+

Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps

UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure

Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems

Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access

Advanced network monitoring using Full Flexible NetFlow

Cisco Software-Defined Access (SD-Access):

Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)

Network assurance and improved resolution time through Cisco DNA Center

Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network

Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming

ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries telemetry

Supported Products

Table 2 shows the recommended supported products.

StackWise-80 and StackWise-160 Kit and cables

Product number

Product description

C9200-STACK-KIT=

C9200 Stack Kit Spare

C9200L-STACK-KIT=

C9200L Stack Kit Spare

STACK-T4-50CM

50CM Type 3 Stacking Cable

STACK-T4-1M

1M Type 3 Stacking Cable

STACK-T4-3M

3M Type 3 Stacking Cable

Power supplies

Product Number

Product Description

PWR-C5-1KWAC/2=

125WAC power supply spare

Compare to Similar Items

Table 3 shows the comparison.

Product number

Product description

C9200L-48T-4X-A

Catalyst 9200L 48-port Data 4x10G uplink Switch, Network Advantage

C9200L-48T-4X-E

Catalyst 9200L 48-port Data 4x10G uplink Switch, Network Essentials

C9200L-48P-4X-A

Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Advantage

C9200L-48P-4X-E

Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Essentials
