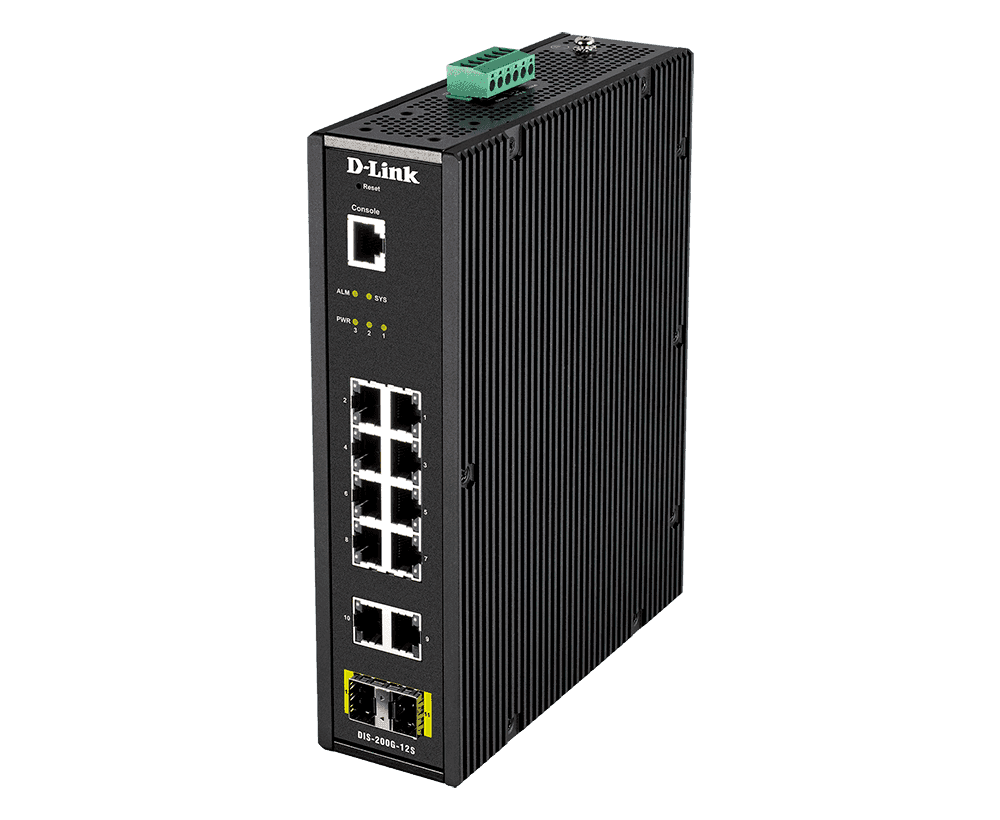

10 x 10/100/1000BASE-T ports 2 x SFP ports 1 x RJ-45 Console port Operating temperature: -40 to 65 °C (-40 to 149 °F) ERPS for quick failover recovery Robust industry-standard enclosure High EMC endurance Built-in 6 kV surge protection

10 x 10/100/1000BASE-T ports

2 x SFP ports

1 x RJ-45 Console port

Operating temperature: -40 to 65 °C (-40 to 149 °F)

ERPS for quick failover recovery

Robust industry-standard enclosure

High EMC endurance

Built-in 6 kV surge protection

Specifications

MAC Address Table Size

8K

802.3x Flow Control

Yes

Head-of-line (HOL) Blocking Prevention

Yes

802.1D Spanning Tree (STP)

Yes

802.1w Rapid Spanning Tree (RSTP)

Yes

802.1s Multiple Spanning Tree (MSTP)

Yes

1000Base-T Interface

10

1000M SFP Interface

2

Auto MDI/MDIX

Yes

Console Port

Yes

Switching Capacity

24 Gbps

Max. Packet Forwarding Rate

17.856 Mpps

Store & Forwarding

Yes

Weight

1.63kg (3.59lbs)

Operation Humidity

0% ~ 95% RH

Dimension

210 x 171.2 x 53mm

Operation Temperature

-40 ~ 65℃

Storage Temperature

-40 ~ 85℃

Storage Humidity

0% ~ 95% RH

Operating Altitude

up to 2000M

Maximum Power Consumption

10.26W

Standby Power Consumption

5.94W

Maximum Heat Dissipation

35.01 BTU/hr

MTBF

276,773 hours

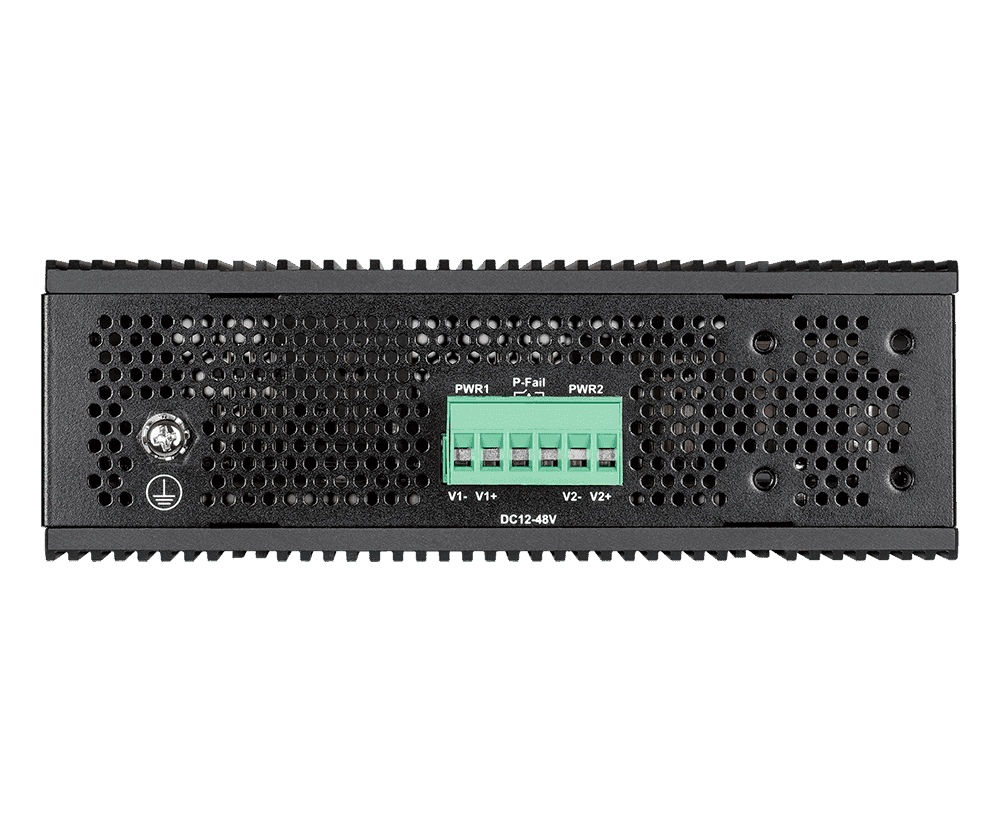

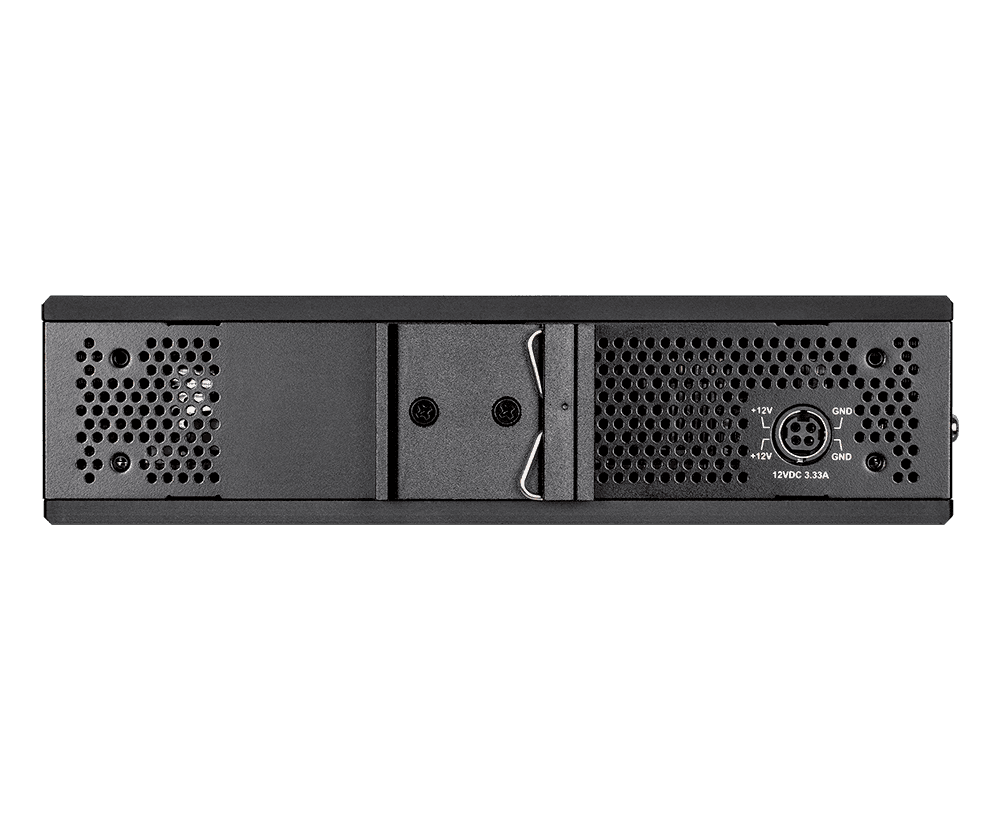

Power Input

12~48Vdc, redundant dual inputs throught ternimal block/12Vdc through 4-pin power din

CPU Speed

416MHz

DRAM Size

128 MB

Flash Memory Size

32 MB

Packet Buffer Size

4Mbit

Power Saving By LED Shut-Off

Yes

Power Saving By Port Shut-Off

Yes

Power Saving By System Hibernation

Yes

Comply with RoHS 6

Yes

Energy Efficiency Ethernet (EEE)

Yes

Power Saving By Link Status

Yes

G.8032 ERPS

Yes

802.1AX Link Aggregation

Yes

802.3ad Link Aggregation

Yes

Link Aggregation Group Per Device

6

Max Port Per Link Aggregation Group

8

Port Mirroring

Yes

Jumbo Frame

9600 bytes

Loopback Detection (LBD)

Yes

MLD Snooping Fast Leave

Yes

IGMP Snooping

Yes

Max IGMP Snooping Groups

256 (shared with MLD snooping)

IGMP Snooping Fast Leave

Yes

MLD Snooping

Yes

MLD Snooping Groups

Yes

802.1Q VLAN

Yes

VLAN Groups

Yes

Port-based VLAN

Yes

Auto Surveillance VLAN

Yes (v2.0)

Voice VLAN

Yes

Surveillance VLAN

Yes

GVRP

Yes

Asymmetric VLAN

Yes

Web-based Access Control (WAC)

Yes

RADIUS

Yes

Cable Diagnostics

Yes

Optical Transceiver Digital Diagnostic Monitoring (DDM)

Yes

Simple Network Time Protocol (SNTP)

Yes

Surge/Lightning Protection

Yes

Surge/Lightning Protection (AC Power Inet)

2KV

Surge/Lightning Protection (All Ethernet Ports)

6KV

Number of Queue

4

Class of Service (CoS)

Yes

Queue Handling

Yes

Strict Priority Queue (SPQ)

Yes

Weighted Round Robin (WRR)

Yes

Port-based Bandwidth Control

Yes

Port Security

Yes

Broadcast/Multicast/Unicast Storm Control

Yes

Traffic Segmentation

Yes

D-Link Safeguard Engine

Yes

DoS Attack Prevention

Yes

TFTP Client

Yes

System Log

Yes

Web-based GUI

Yes

Command Line Interface (CLI)

Yes

Telnet Server

Yes

SNMP

Yes

SNMP Trap

Yes

RMONv1

Yes

LLDP

Yes

D-Link Discover Protocol (DDP)

Yes

DHCP/BootP Client

DHCP Client only

Dual Images

Yes

Dual Configurations

Yes

Ping

Yes

D-Link Network Assistant

Yes

Air Discharge

8KV

Contact Discharge

6KV
