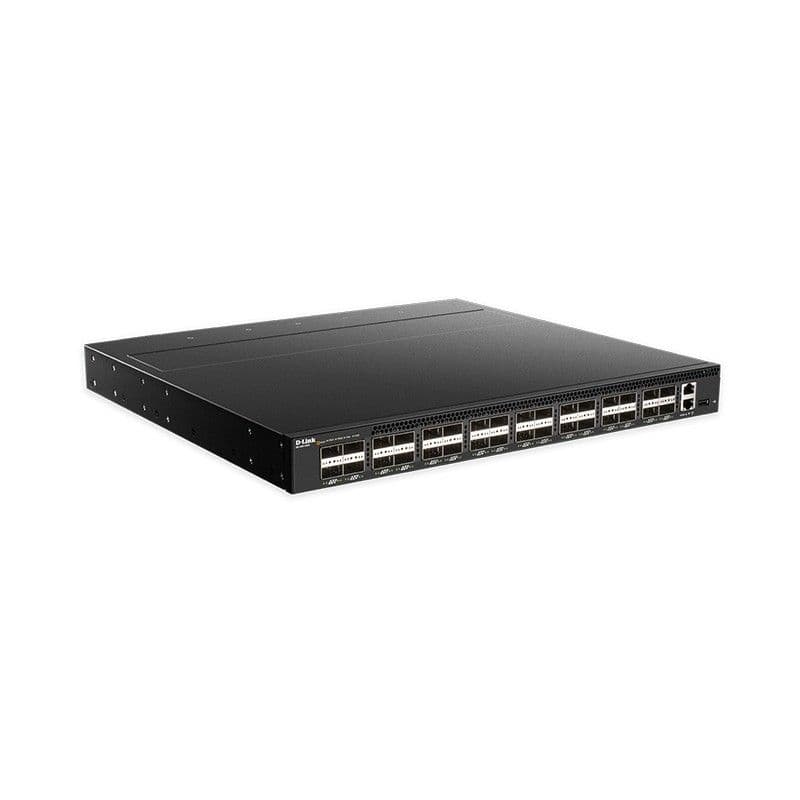

D-Link 32 100G QSFP28 optical ports, data center switch, support Leaf-Spine, Top-of-Rack (ToR) architecture, support OpenFlow, VXLAN, FCoE, DCB, support DLINK OS and third-party OS. Dual AC power supply modules, front and rear ventilation.

DQS-5000-32Q28/AF Specification

DQS-5000-32Q28/AF Specification

100G QSFP28 ports

32

USB 2.0 port

1

RJ-45 port

1

RJ-45 Management port

1

Switch Capacity

6.4 Tbps

Max. Packet Forwarding Rate

2,980 Mpps

Max. Forwarding Rate

2,980 Mpps (2.980 Bpps)

Packet Buffer Memory

16 MB

MAC Address Table

40K

Power Input

1+1 redundant power supply design Input: 100 to 240 V AC, 50/60 Hz

Operating Temperature

0 to 45 ºC (32 to 113 ºF)

Operating Humidity

5% to 95% RH, non-condensing

Dimensions (W x D x H)

440 x 406 x 44 mm (17.32 x 16 x 1.73 inch)

Acoustics

Max: 71.8 dB Min: 57.2 dB

Fans

4 x fans

Heat Dissipation (Max.)

1433.04 BTU/hr

Console Port

1 x RJ-45 console port

Switching Capacity

6.4 Tbps

OOB Management Port

1 x 10/100/1000BASE-T RJ-45 port

Maximum Heat Dissipation

1,433.04 BTU/hr

Maximum Power Consumption

420 W

MTBF

206,685 hours
