Customizable: Intel® Xeon® E5-2620 v4, 8GB Memory, 1TB Hard Drive and a 3 Year Warranty

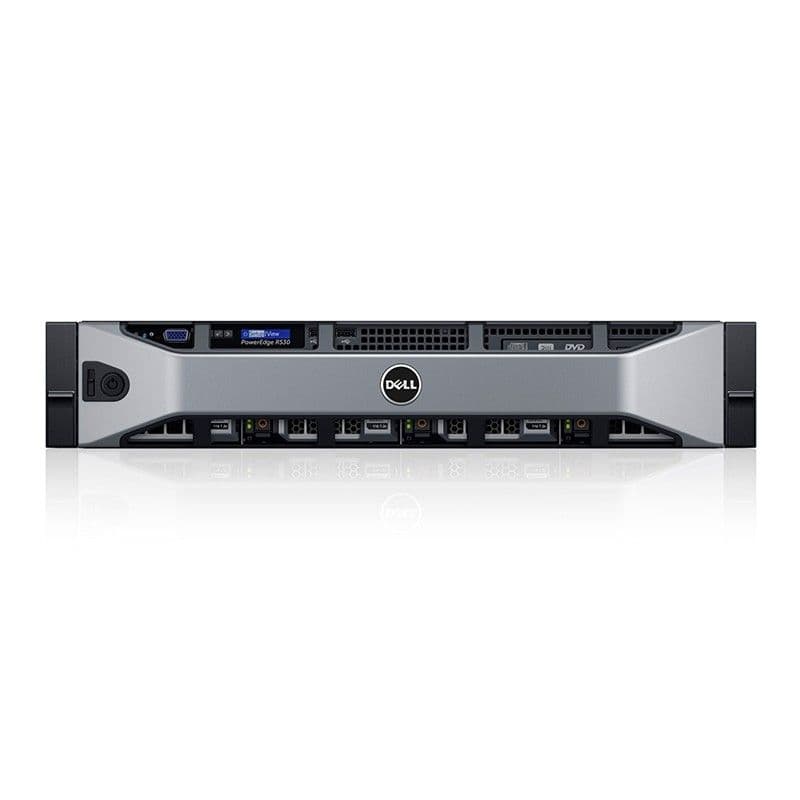

Dell PowerEdge R530 Xeon E5-2620 v4 8GB 1TB SAS H330 Rack Server Specification

Product Series

Dell PowerEdge R530 Server

Model

Dell PowerEdge R530 Xeon E5-2620 v4 8GB 1TB SAS H330 Rack Server

Customizable

Intel® Xeon® E5-2620 v4, 8GB Memory, 1TB SAS H330 Hard Drive and a 3 Year Warranty

Processor

Intel® Xeon® E5-2620 v4 2.1GHz,20M Cache,8.0GT/s QPI,Turbo,HT,8C/16T (85W) Max Mem 2133MHz

Operating System

No Operating System

Memory

8GB RDIMM, 2400MT/s, Single Rank, x8 Data Width

Hard Drive

1TB Hard Drive

Warranty

3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site

Chipset

Intel C610 series chipset

Storage

SAS, SATA, nearline SAS, SSD

Drive Bays

Up to 8 x 3.5” SAS, SATA, nearline SAS,SSD drives

Slots

Support for up to 5 x PCIe slots, half-length, low-profile): 3 x PCIe 3.0; 2 x PCIe 2.0

RAID Controllers

Internal:

PERC S130

PERC H330

PERC H730

PERC H730P

External:

PERC H830

Network Controller

4 x 1 GbE LOMs

Communications

Optional add-in NICs, HBAs

Power

495W AC, 750W AC, 1100W AC, hot-plug PSU; 1100W -48V DC hot-plug PSU; 450W AC cabled PSU

Availability

ECC memory

Single Device Data Correction (SDDC)

Spare Rank

Hot-plug hard drives

Hot-plug redundant power

iDRAC8 with Lifecycle Controller

Support for HA clustering

Virtualization-ready

Internal Dual SD Module (Failsafe Hypervisor)

TPM 1.2

Graphics Card

Video Type :Integrated Matrox G200 with iDRAC8

Video Memory: 16 MB shared with iDRAC8 application memory

Chassis

2u rack:

H: 8.68cm

W: 48.24cm

D: 66.8cm

Management

Systems management:

IPMI 2.0 compliant

Dell OpenManage Essentials

Dell OpenManage Mobile

Dell OpenManage Power CenterRemote management:

iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade),16GB vFlash media (upgrade), iDRAC Quick Sync

Dell OpenManage Integrations:

Dell OpenManage Integration Suite for

Microsoft® System Center

Dell OpenManage Integration for VMware® vCenter™

Dell OpenManage Connections:

HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management

Dell OpenManage Plug-in for Oracle® Database Manager
