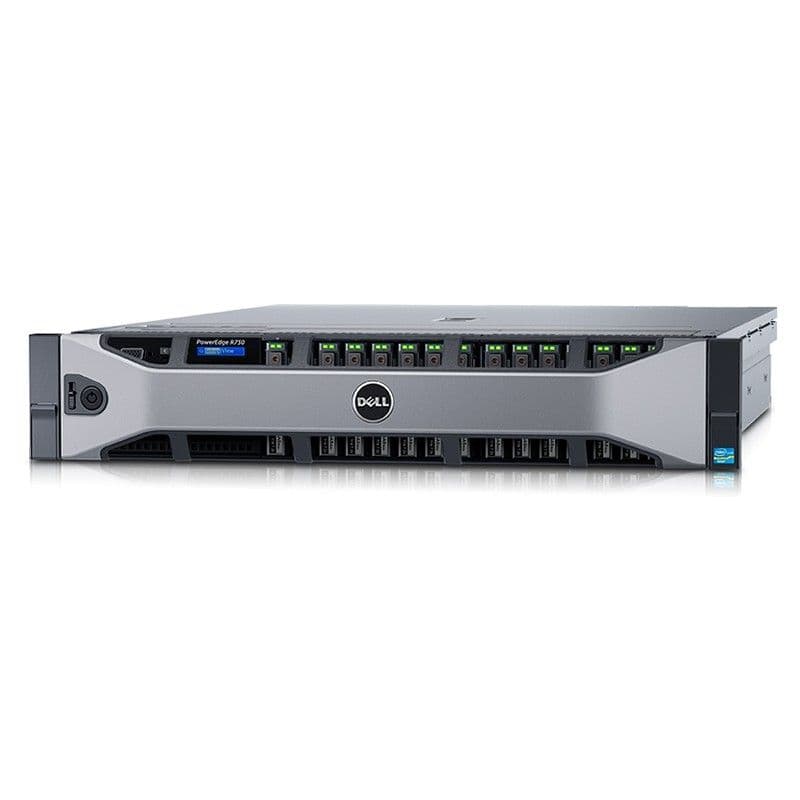

Dell PowerEdge 2U R730 E5-2609v4 1.7GHz 8C 2*16G DDR4 RECC 2*600G 10K SAS H330 (RAID0.1.5) 4*1GE 495W Rail kit

Dell PowerEdge R730 E5-2609 v4, 2*16G DDR4 RECC, 2*600G 10K SAS, H330, 495W Rack Server Specification

Product Series

Dell PowerEdge R730 Server

Model

Dell PowerEdge R730 E5-2609 v4, 2*16G DDR4 RECC, 2*600G 10K SAS, H330, 495W

Fully Customizable

Intel® Xeon® E5-2609 v4, 2*16G Memory, 2*600G 10K SAS H330 Hard Drive and a 3 Year Warranty

Processor

Intel® Xeon® E5-2609 v4

Memory

2*16G

Hard Drive

2*600G 10K SAS H330 Hard Drive

Warranty

3Yr Basic HW Warranty

Chipset

Intel C610 series chipset

Embedded Hypervisor (Optional)

Optional supported hypervisors:

Microsoft® Windows Server® 2012, with Hyper-V®

Citrix® XenServer®

VMware® vSphere® ESXiTM

Storage

HDD: SAS, SATA, nearline SAS; SSD: SAS, SATA

16 x 2.5” – up to 29TB via 1.8TB hot-plug SAS hard drives

8 x 3.5” – up to 64TB via 8TB hot-plug nearline SAS hard drives

Drive Bays

Internal hard drive bay and hot-plug backplane:

Up to 16 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA

Up to 8 x 3.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA

Slots

Slot configuration #1:

Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett

Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett

Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett

Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)

Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)

Slot 6: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)

Slot 7: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)

Dedicated RAID card slotSlot configuration #2:

Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket

Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket

Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket

Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)

Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)

Slot 6: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)

Dedicated RAID card slot

RAID Controllers

Internal:

PERC S130

PERC H330

PERC H730

PERC H730P

External:

PERC H830

Network Controller

4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb

Communications

Broadcom® 5719 quad-port 1Gb NIC

Broadcom 5720 dual-port 1Gb NIC

Broadcom 57810 dual-port 10Gb DA/SFP+ CNA

Broadcom 57810 dual-port 10Gb Base-T network adapter

Intel® Ethernet I350 dual-port 1Gb server adapter

Intel Ethernet I350 quad-port 1Gb server adapter

Intel Ethernet X540 dual-port 10GBASE-T server adapter

Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter

Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter

Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA

Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA

Emulex LPe16000B, single-port 16Gb Fibre Channel HBA

Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA

Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA

QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA

QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA

Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height

Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height

Power

1100W AC, 86 mm (Platinum)

1100W DC, 86 mm (Gold)

750W AC, 86 mm (Platinum)

750W AC, 86 mm (Diamond)

495W AC, 86 mm (Platinum)

Availability

ECC memory

Hot-plug hard drives

Hot-plug redundant cooling

Hot-plug redundant power

iDRAC8

Internal Dual SD Module

Single Device Data Correction (SDDC)

Spare Rank

Tool-less chassis

Support for high availability clustering and virtualization

Proactive systems management alerts

iDRAC8 with Lifecycle Controller

Chassis

Dimensions: H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.)

Management

Dell OpenManage portfolio of systems management solutions, including:

OpenManage Essentials console

iDRAC8 with Lifecycle Controller

iDRAC Direct

iDRAC Quick Sync

OpenManage Mobile
