Intel® Xeon® E5-2620 v4, Optional Operating System, 8GB Memory, 1TB Hard Drive and a 3 Year Warranty

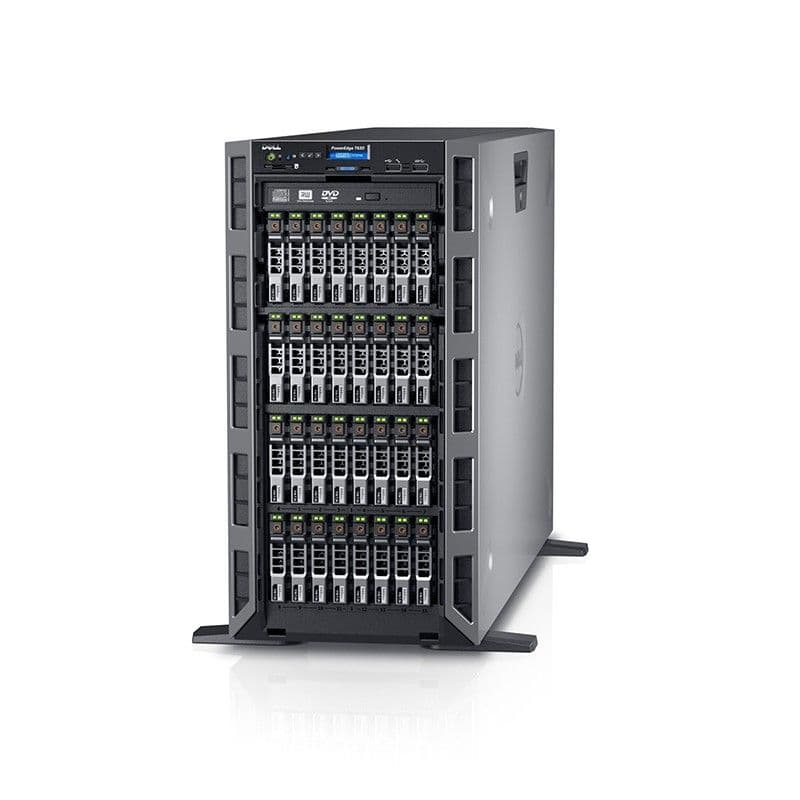

Dell PowerEdge T630 Xeon E5-2620 v4 8GB 1TB SAS H330 Tower Server Specification

Product Series

Dell PowerEdge T630 Server

Model

Dell PowerEdge T630 Xeon E5-2620 v4 8GB 1TB SAS H330 Tower Server

Customizable

Intel® Xeon® E5-2620 v4, Optional Operating System, 8GB Memory, 1TB Hard Drive, SAS, H330 and a 3 Year Warranty

Processor

Intel® Xeon® E5-2620 v4 2.1GHz,20M Cache,8.0GT/s QPI,Turbo,HT,8C/16T (85W) Max Mem 2133MHz

Operating System

No Operating System

Memory

8GB RDIMM, 2400MT/s, Single Rank, x8 Data Width

Hard Drive

1TB Hard Drive

Warranty

3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site

Chipset

Intel C610 series chipset

Embedded Hypervisor (Optional)

Microsoft® Windows Server® 2008, with Hyper-V®

VMware® ESXi

Citrix XenServer

Storage

SAS, SATA, Near-line SAS, SSD, PCIe SSD

Up to 4 optional Express Flash PCIe SSDs

Up to 144TB via 18 x 8TB 3.5” HDDs

Drive Bays

Internal hard drive bay and hot-plug backplane:

Up to 8 x 3.5” SAS, SATA, Near-Line SAS,SSD, PCIe SSD drives with optional flex bay

Up to 18 x 3.5” SAS, SATA, Near-Line SAS,SSD drives without optional flex bay

Up to 16 x 2.5” SAS, SATA, Near-line SAS, SSD, PCIe SSD drives with optional flex bay

Up to 32 x 2.5” SAS, SATA, Near-Line SAS,SSD drives with optional flex bay

Slots

Slot 1: Full Length, Full Height, CPU1 – PCIe Gen3 x16 (x16 connector)

Slot 2: Full Length, Full Height, PCH – PCIe Gen2 x4 (x8 connector)

Slot 3: Full Length, Full Height, CPU1 – PCIe Gen3 x16 (x16 connector)

Slot 4: Half Length, Full Height, CPU2 – PCIe Gen3 x8 (x8 connector)

Slot 5: Full Length, Full Height, CPU2 – PCIe Gen2 (DMI) x4 (x8 connector)

Slot 6: Full Length, Full Height, CPU2 – PCIe Gen3 x16 (x16 connector)

Slot 7: Full Length, Full Height, CPU2 – PCIe Gen3 x16 (x16 connector)

Slot 8: Half Length, Full Height, CPU1 – PCIe Gen3 x8 (x8 connector)

RAID Controllers

Internal:

PERC S130

PERC H330

PERC H730

PERC H730P

External:

PERC H830

Network Controller

2 x 1Gb

Communications

Broadcom® 5719 quad-port 1Gb NIC

Broadcom 5720 dual-port 1Gb NIC

Broadcom 57810 dual-port 10Gb DA/SFP+ CNA

Broadcom 57810 dual-port 10Gb Base-T network adapter

Intel® Ethernet I350 dual-port 1Gb server adapter

Intel Ethernet I350 quad-port 1Gb server adapter

Intel Ethernet X540 dual-port 10GBASE-T server adapter

Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter

Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter

Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA

Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA

Emulex LPe16000B, single-port 16Gb Fibre Channel HBA

Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA

Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA

QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA

QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA

Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height

Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height

Power

Titanium efficiency 750W AC power supply

Gold efficiency 1100W DC power supply

Platinum efficiency 495W, 750W, 1100W or 1600W AC power supply

Availability

ECC memory

Hot-plug hard drives

Hot-plug redundant cooling

Hot-plug redundant power

iDRAC8

Internal Dual SD Module

Single Device Data Correction (SDDC)

Spare Rank

Tool-less chassis

Support for high availability clustering and virtualization

Proactive systems management alerts

iDRAC8 with Lifecycle Controller

Graphics Card

Video Type :Integrated Integrated Matrox G200 with iDRAC8

Video Memory: 16 MB shared with iDRAC8 application memoryGPUs – Support for up to four optional 300W internal GPU processing accelerators

Chassis

Form Factor: 5U

Height 443.5 mm (17.5 inch) with feet

434.5 mm (17.1 inch) without feet

Width:48.2cm (18.98”)

Depth:75.09cm (29.56”)

Max Weight:

T630 full system with 2.5” HDD:

Max 2.5″x16 (6 fans) 37.57Kg/82.75lb

Max 2.5″x32 (6 fans) 40.55Kg/89.32lb

T630 full system with 3.5” HDD:

Max 3.5″x18 (6 fans) 49.65 Kg/109.36 lb

Management

Dell OpenManage portfolio of systems management solutions, including:

OpenManage Essentials console

iDRAC8 with Lifecycle Controller
