KSTAR valve regulated lead acid battery can prevent air from being absorbed into it, and at the same time it also can protect the battery from damage caused by gas emitting in the period of recharging .There is no emission of acid mist and electrolyte when the sealed battery is in floating condition. Meanwhile, the patented battery tray can match with the battery and it can protect the battery from the harm of electrolyte leakage.

General Features

● Capacity: 36-200Ah

● Features: Standard series, design lifetime is up to 10 years

● Application: UPS/Communication/ Electric power(Equipped with patent anti-leakage safety tray)

Technical Specification

TYPE

Nominal

Voltage（V）

Rated Capacity（Ah)

Dimensions（mm)

Weight

Appox

（kg）

Terminal

type

20HR

10HR

5HR

1HR

Length

Width

Height

Total

Height

1.75V/C

1.8V/C

1.75V/C

1.75V/C

3-FML-100

6

100

92

80

60

195

170

206

210

16

M2

3-FML-150

6

150

138

120

90

260

180

247

250

25

M3

3-FML-200

6

200

184

160

120

323

178

226

231

31

M5

6-FML-36

12

36

33.1

28.8

21.6

195

131

155

169

11.4

M1

6-FML-38

12

38

34.2

30.4

22.8

198

166

170

170

13.2

M1

6-FML-56

12

56

51.4

44.8

33.6

229

138

212

217

19

M1

6-FML-65

12

65

61

52

39

350

167

177

177

21.5

M2

6-FML-85

12

85

78.2

68

51

260

169

211

216

25

M1

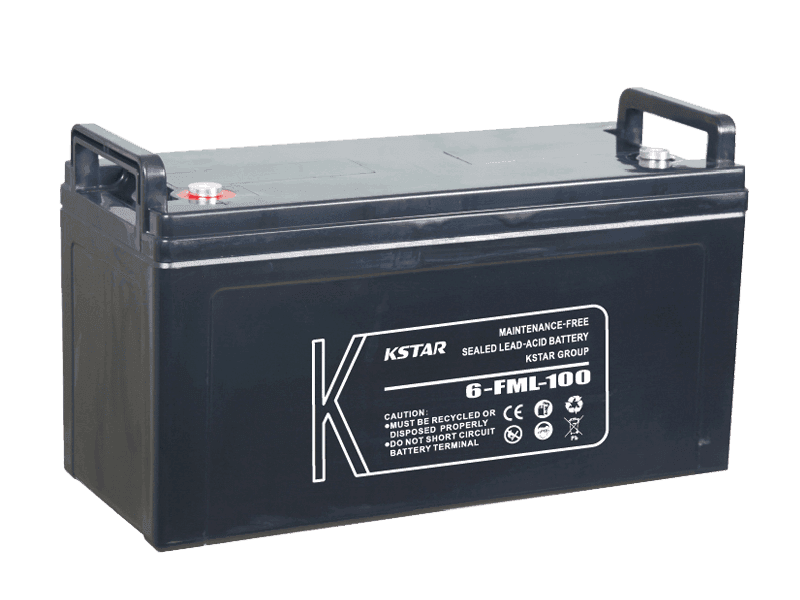

6-FML-100

12

100

92

80

60

407

174

208

236

32.6

M3

6-FML-110

12

110

101

88

66

329

172

215

222

33.5

M5

6-FML-120

12

120

110

96

72

407

174

208

236

36.5

M3

6-FML-150

12

150

138

120

90

532

207

216

221

50

M5

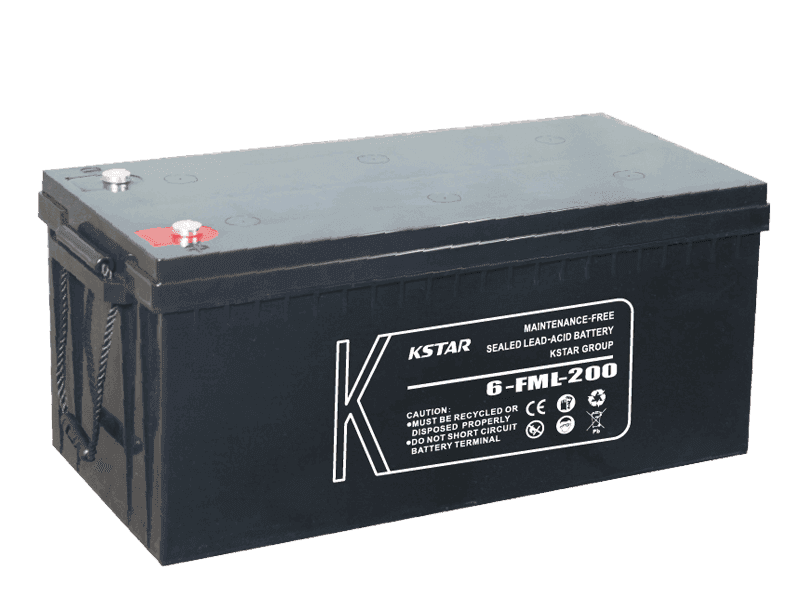

6-FML-200

12

200

184

160

120

523

240

225

230

62.5

M3
