Key Applications AI / Deep Learning High Performance Computing Key Features Flexible GPU support: active & passive GPUs Up to 8 direct attached double width, full length GPUs 10 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control Dual-Socket, AMD EPYC™ 9004 Series Processors 24 DIMM Slots, up to 6TB DDR5 memory up to 4x 2.5" Hot-swap NVMe drive bays 1 M.2 Slot

Key Applications

AI / Deep Learning

High Performance Computing

Key Features

Flexible GPU support: active & passive GPUs

Up to 8 direct attached double width, full length GPUs

10 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control

Dual-Socket, AMD EPYC™ 9004 Series Processors

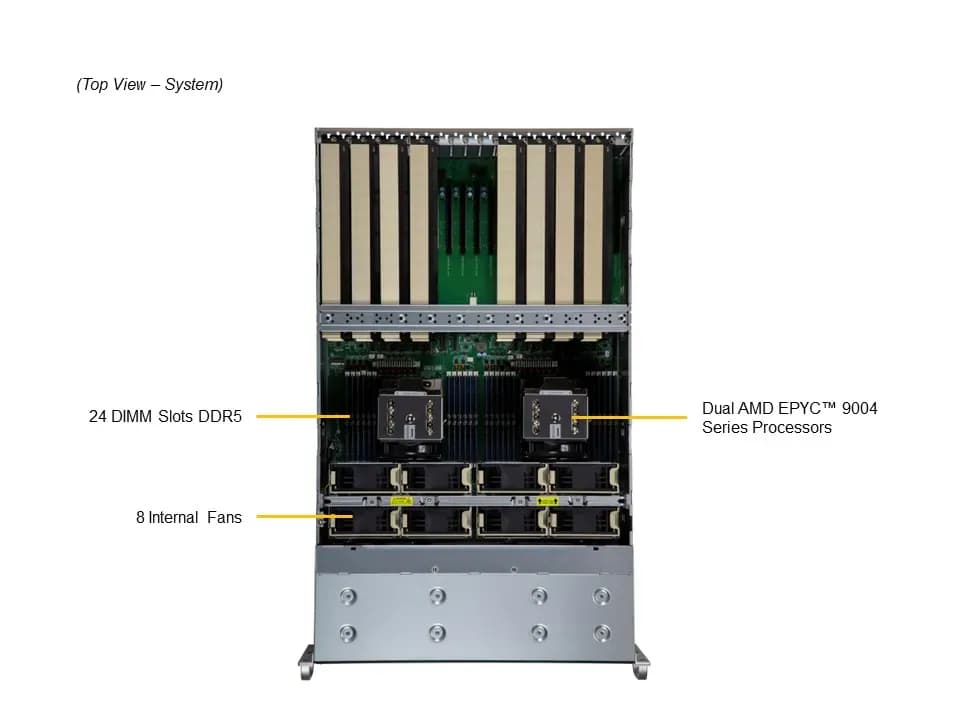

24 DIMM Slots, up to 6TB DDR5 memory

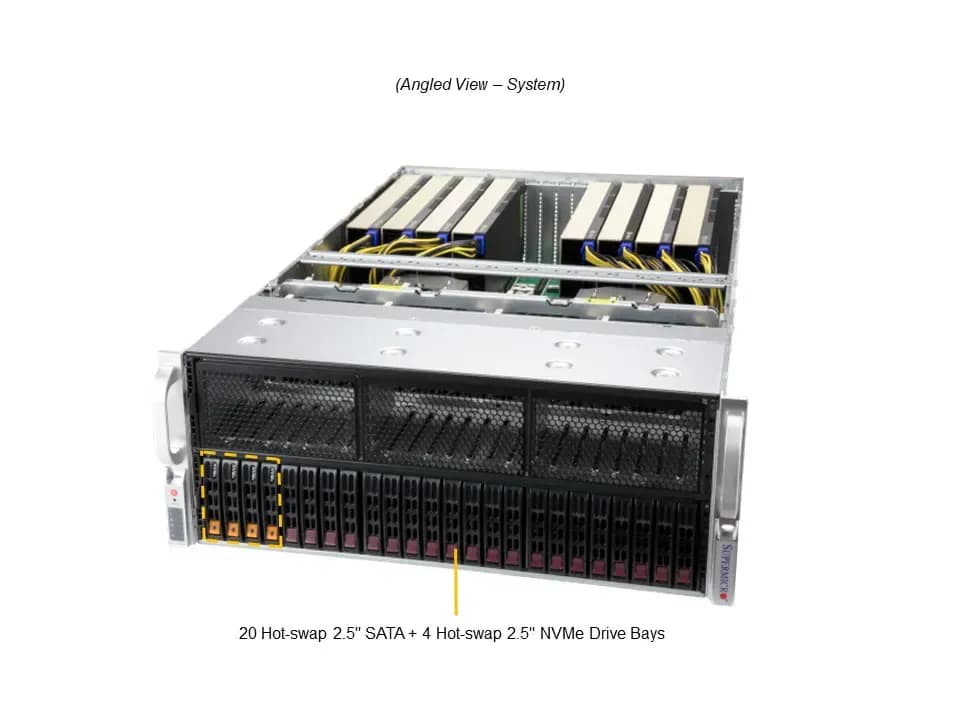

up to 4x 2.5″ Hot-swap NVMe drive bays

1 M.2  Slot

Product SKUs

A+ Server AS -4125GS-TNRT

Motherboard

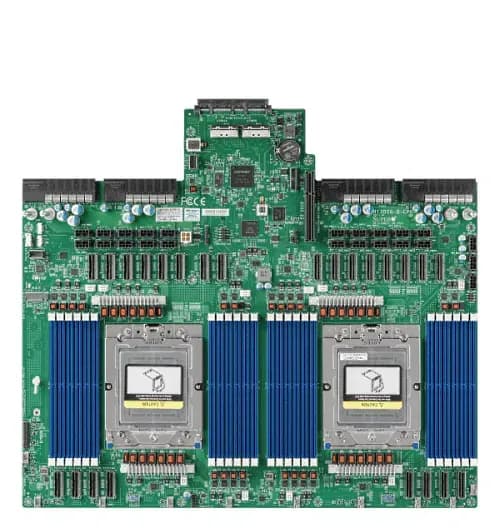

Super H13DSG-O-CPU

Processor

CPU

Dual Socket SP5

AMD EPYC™ 9004 Series Processors

Core Count

Up to 128C/256T

Note

Supports up to 400W TDP CPUs (Air Cooled)

GPU

Max GPU Count

Up to 8 double-width GPU(s)

Supported GPU

NVIDIA PCIe: H100 NVL, H100, RTX 4000 SFF Ada Generation, L40, RTX A5500, RTX A4000, RTX 6000, RTX 5000, L40S, A40, A30, A100

AMD PCIe: Instinct MI210

View GPU Options

CPU-GPU Interconnect

Direct Attached

GPU-GPU Interconnect

NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional)

System Memory

Memory

Slot Count: 24 DIMM slots

Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM

View Memory Options

Memory Voltage

1.1V

On-Board Devices

SATA

SATA (6Gbps)

Chipset

AMD SP5

Network Connectivity

2 RJ45 10GbE

View AIOM Options

View AOC Options

Input / Output

LAN

1 RJ45 1 GbE Dedicated IPMI LAN port(s)

2 RJ45 10 GBASE-T LAN port(s)

USB

2 port(s) (rear)

Video

1 VGA port(s)

Serial

1 COM port(s) (Rear)

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

Power-on mode for AC power recovery

ACPI Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

Supply Chain Security: Remote Attestation

Runtime BMC Protections

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

7 +1 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

4U Rackmount

Model

CSE-418G2TS

Dimensions and Weight

Height

7″ (178 mm)

Width

17.2″ (437 mm)

Depth

29″ (737 mm)

Package

26.57″ (H) x 27″ (W) x 41″ (D)

Weight

Gross Weight: 100 lbs (45.3 kg)

Net Weight: 65.5 lbs (29.7 kg)

Available Color

Black Front & Silver Body

Front Panel

LED

Hard drive activity LED

Network activity LEDs

Power status LED

System Overheat & Power Fail LED

Buttons

Power On/Off button

System Reset button

Expansion Slots

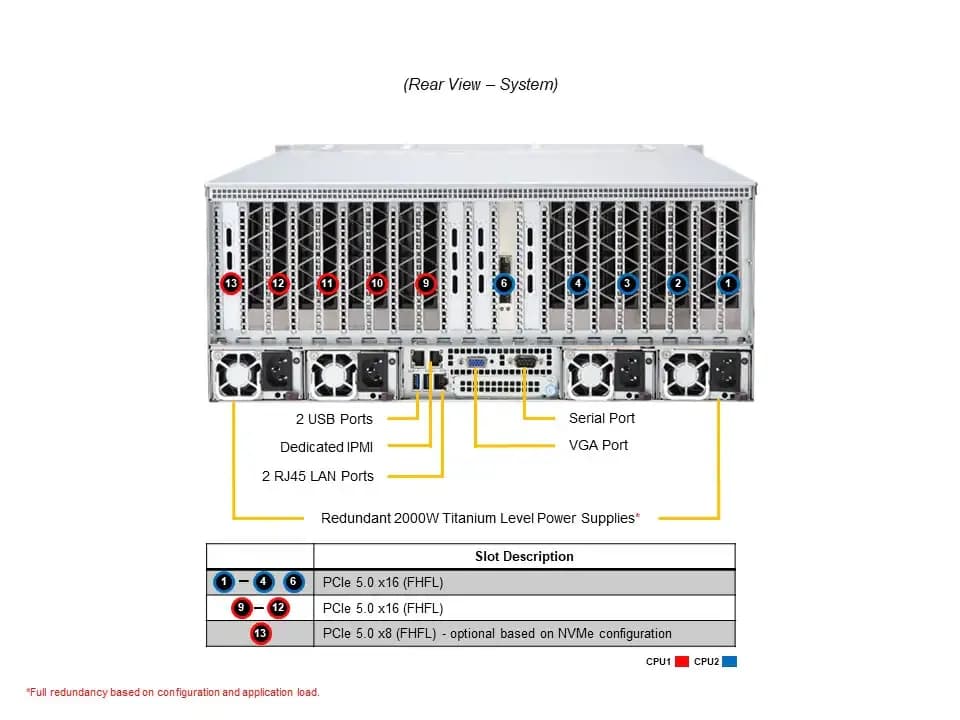

PCI-Express (PCIe) Configuration

Default

9 PCIe 5.0 x16 FHFL slot(s)

View AOC Options

Drive Bays / Storage

Drive Bays Configuration

Default: Total 6 bay(s)

2 front hot-swap 2.5″ SATA drive bay(s)

4 front hot-swap 2.5″ NVMe drive bay(s)

View Drive Options

M.2

1 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key)

View M.2 Options

System Cooling

Fans

8 heavy duty fans with optimal fan speed control

Power Supply

4x 2000W Redundant Titanium Level (96%) power supplies

Dimension (WxHxL)

73.5 x 40 x 203 mm

AC Input

1000W: 100-127Vac / 50-60Hz

1800W: 200-220Vac / 50-60Hz

1980W: 220-230Vac / 50-60Hz

2000W: 220-240Vac / 50-60Hz (for UL only)

2000W: 230-240Vac / 50-60Hz

2000W: 230-240Vdc / 50-60Hz (for China only)

+12V

Max: 83A / Min: 0A (100Vac-127Vac)

Max: 150A / Min: 0A (200Vac-220Vac)

Max: 165A / Min: 0A (220Vac-230Vac)

Max: 166A / Min: 0A (230Vac-240Vac)

12V SB

Max: 3.5A

Output Type

Backplanes (gold finger)

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)

Environmental / Recycling

Recycle

Return Server-End of Life Product
