Key Applications

High Performance Computing

AI/Deep Learning Training

Industrial Automation, Retail

Healthcare

Conversational AI

Business Intelligence & Analytics

Drug Discovery

Climate and Weather Modeling

Finance & Economics

Key Features

5th/4th Gen Intel®  Xeon® Scalable processor support

32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5

8 PCIe Gen 5.0 X16 LP

2 PCIe Gen 5.0 X16 FHHL Slots, 2 PCIe Gen 5.0 X16 FHHL Slots (optional)

Flexible networking options

2 M.2 NVMe for boot drive only

Optional: 8x 2.5″ Hot-swap  SATA drive bays

8x 2.5″ Hot-swap  NVMe drive bays

4 heavy duty fans with optimal fan speed control

4x 5250W(2+2) Redundant Power Supplies, Titanium Level

Product SKUs

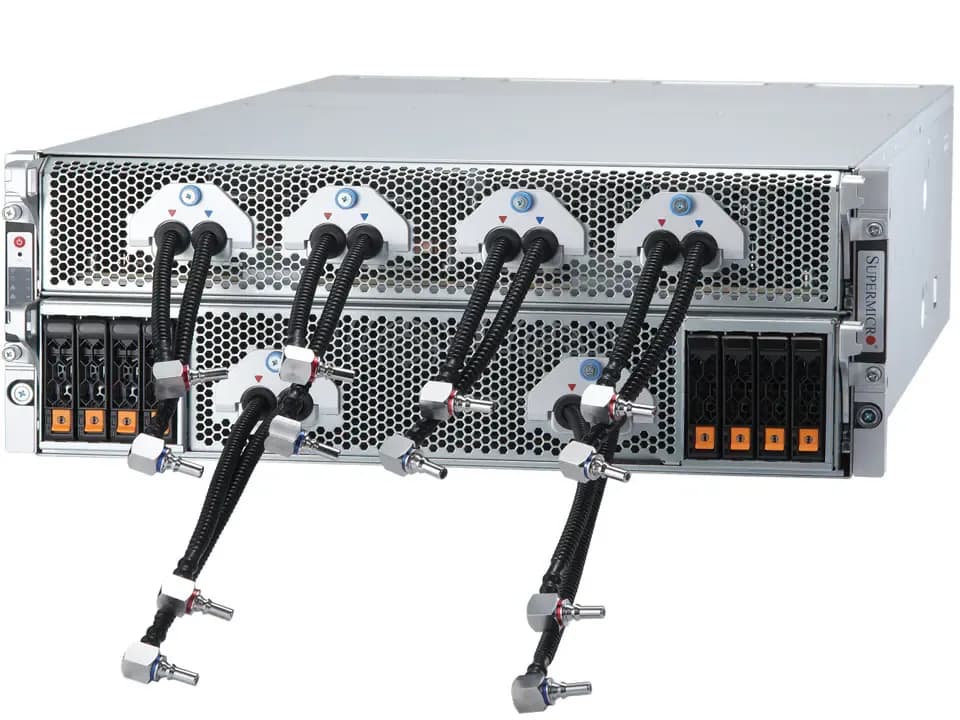

SuperServer SYS-421GE-TNHR2-LCC

Motherboard

Super X13DEG-M

Processor

CPU

Dual Socket E (LGA-4677)

5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​

Core Count

64C/128T; 320MB Cache per CPU

Note

Supports up to 385W TDP CPUs (Liquid Cooled)​

GPU

Max GPU Count

Up to 8 onboard GPU(s)

Supported GPU

NVIDIA SXM: HGX H100 8-GPU (80GB)

View GPU Options

CPU-GPU Interconnect

PCIe 5.0 x16 CPU-to-GPU Interconnect

GPU-GPU Interconnect

NVIDIA® NVLink® with NVSwitch™

System Memory

Memory

Slot Count: 32 DIMM slots

Max Memory (1DPC): 4TB 5600MT/s ECC DDR5 RDIMM

Max Memory (2DPC): 8TB 4400MT/s ECC DDR5 RDIMM

View Memory Options

On-Board Devices

Chipset

Intel® C741

Network Connectivity

2 SFP28 25GbE with Broadcom® BCM57414 (optional)

2 RJ45 10GbE with Intel® X710-AT2 (optional)

View AOC Options

Input / Output

Video

1 VGA port(s)

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

Power-on mode for AC power recovery

ACPI Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

Supply Chain Security: Remote Attestation

Runtime BMC Protections

System Lockdown

PC Health Monitoring

CPU

Monitors for CPU Cores, Chipset Voltages, Memory

8+4 Phase-switching voltage regulator

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

Chassis

Form Factor

4U Rackmount

Model

CSE-GP401TS-R000NP

Dimensions and Weight

Height

6.85″ (174 mm)

Width

17.7″ (449 mm)

Depth

33.2″ (842 mm)

Package

13″ (H) x 48″ (W) x 26.4″ (D)

Weight

Gross Weight: 138.89 lbs (63 kg)

Net Weight: 80.03 lbs (53 kg)

Available Color

Silver

Front Panel

Buttons

UID button

Expansion Slots

PCI-Express (PCIe) Configuration

Default

8 PCIe 5.0 x16 LP slot(s)

2 PCIe 5.0 x16 FHHL slot(s)

Option A

8 PCIe 4.0 x16 LP slot(s)

4 PCIe 5.0 x16 FHHL slot(s)

View AOC Options

Drive Bays / Storage

Drive Bays Configuration

Default: Total 8 bay(s)

8 front hot-swap 2.5″ NVMe drive bay(s)

View Drive Options

M.2

2 M.2 NVMe slot(s) (M-key)

View M.2 Options

System Cooling

Fans

4 Fan 8cm Fan(s)

Liquid Cooling

Direct to Chip (D2C) Cold Plate (optional)

Power Supply

4x 5250W Redundant Titanium (certification pending) Level (96%) power supplies

Dimension (WxHxL)

106.5 x 82.1 x 245.3 mm

AC Input

5250W: 200-240Vac / 50-60Hz

+12V

Max: 125A / Min: 0A (200Vac-240Vac)

Output Type

Backplanes (gold finger)

Certification

Titanium (certification pending) Level

[ Test Report ]

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)
