Key Applications

High Performance Computing

AI/Deep Learning Training

Industrial Automation

Business Intelligence & Analytics

Climate and Weather Modeling

Biomedical

Generative AI

Finance Services and Fraud Detection

Key Features

High Density Computing: 8 x Intel® Data Center GPU Max 1550 (600W) OAM

Performance: 6.7 petaFLOPS FP16/BF16

GPU Memory: 1TB HBM2

GPU Memory Bandwidth: 3276.8 GB/s

GPU to GPU Interconnect: 742 GB/s XeLink Scale Up Bandwidth

Open Ecosystem with oneAPI

5th/4th Gen Intel® Xeon® Scalable processors With PCIE Gen 5 Platform

32x DIMM slots, ECC DDR5 RDIMM up to 8TB and 5600MTS

Product SKUs

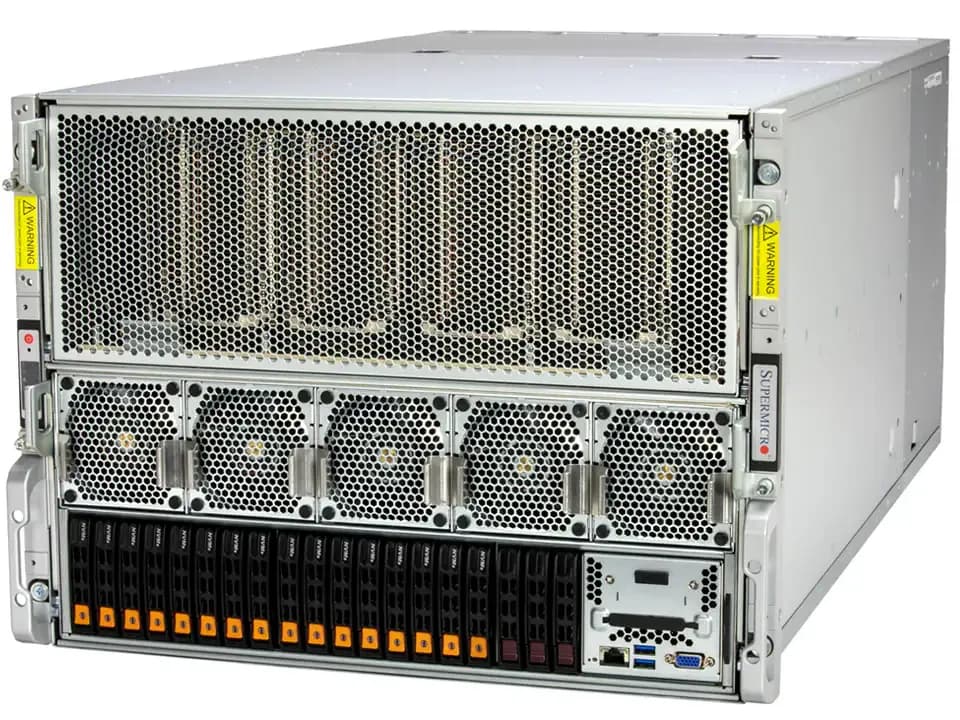

SuperServer SYS-821GV-TNR

Motherboard

Super X13DEG-PVC

Processor

CPU

Dual Socket E (LGA-4677)

5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Core Count

Up to 64C/128T; Up to 128MB Cache per CPU

Note

Supports up to 350W TDP CPUs (Air Cooled)

GPU

Max GPU Count

Up to 8 onboard GPU(s)

Supported GPU

Intel OAM: Data Center GPU Max 1550

View GPU Options

CPU-GPU Interconnect

PCIe 5.0 x16 CPU-to-GPU Interconnect

GPU-GPU Interconnect

Intel® Xe Link Bridges

System Memory

Memory

Slot Count: 32 DIMM slots

Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM

View Memory Options

Memory Voltage

1.1V

On-Board Devices

Chipset

Intel® C741

Network Connectivity

2 RJ45 10GbE with Intel® X550-AT2 (optional)

View AOC Options

Input / Output

LAN

1 RJ45 1 GbE Dedicated IPMI LAN port(s)

USB

2 USB 3.2 Gen1 port(s) (front)

Video

1 VGA port(s)

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

SuperCloud Composer

Supermicro Server Manager (SSM)

Supermicro Update Manager (SUM)

Supermicro SuperDoctor® 5 (SD5)

Super Diagnostics Offline (SDO)

Supermicro Thin-Agent Service (TAS)

SuperServer Automation Assistant (SAA) New!

Power configurations

Power-on mode for AC power recovery

ACPI Power Management

Security

Hardware

Trusted Platform Module (TPM) 2.0

Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

Cryptographically Signed Firmware

Secure Boot

Secure Firmware Updates

Automatic Firmware Recovery

Supply Chain Security: Remote Attestation

Runtime BMC Protections

System Lockdown

PC Health Monitoring

FAN

Fans with tachometer monitoring

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

Thermal Control for fan connectors

CPU

8+4 Phase-switching voltage regulator

Chassis

Form Factor

8U Rackmount

Model

CSE-GP801TS-R000NPF

Dimensions and Weight

Height

13.8″ (356 mm)

Width

17.7″ (447 mm)

Depth

33.2″ (843 mm)

Package

27.6″ (H) x 51″ (W) x 29.5″ (D)

Weight

Gross Weight: 196.21 lbs (89 kg)

Net Weight: 130.07 lbs (59 kg)

Available Color

Silver

Front Panel

Buttons

UID button

Expansion Slots

PCI-Express (PCIe) Configuration

Default

8 PCIe 5.0 x16 LP slot(s)

4 PCIe 5.0 x16 FHHL slot(s)

View AOC Options

Drive Bays / Storage

Drive Bays Configuration

Default: Total 19 bay(s)

3 front hot-swap 2.5″ SATA drive bay(s)

16 front hot-swap 2.5″ NVMe drive bay(s)

View Drive Options

M.2

2 M.2 NVMe/SATA slot(s) (M-key 2280/22110)

View M.2 Options

System Cooling

Fans

10 Removable heavy-duty 8cm Fan(s)

Power Supply

6x 3000W Redundant Titanium Level (96%) power supplies

Dimension (WxHxL)

106.5 x 82.1 x 245.5 mm

AC Input

3000W: 0240Vdc / 50-60Hz (for CQC only)

2880W: 200-207Vac / 50-60Hz

3000W: 207-240Vac / 50-60Hz

+12V

Max: 91.66A / Min: 0A (200Vac-240Vac)

12V SB

Max: 3A / Min: 0A

Output Type

Backplanes (gold finger)

Operating Environment

Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)
